Electric Powered Passenger Seat Front

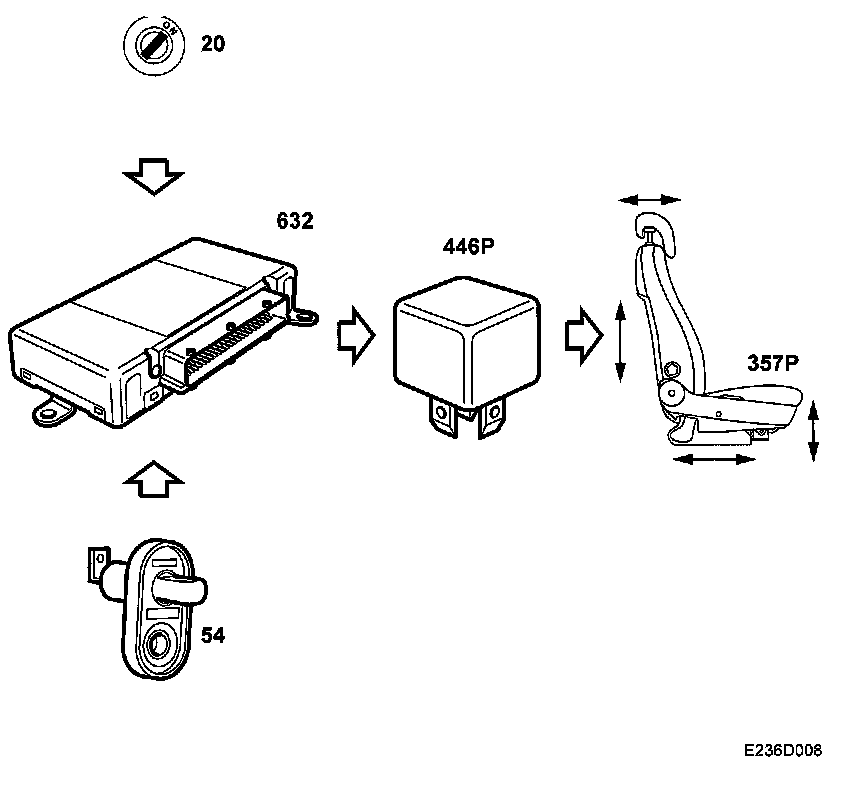

System Overview, Electric Powered Passenger Seat Front







^ Control module, TWICE (632)
^ Relay, electrically adjustable seat, passenger (446P)
^ Switch, electrically adjustable seat, passenger (357P)
^ Door switch, front left (54FL)
^ Door switch, front right (54FR)
^ Ignition switch (20)
