Exterior Lighting

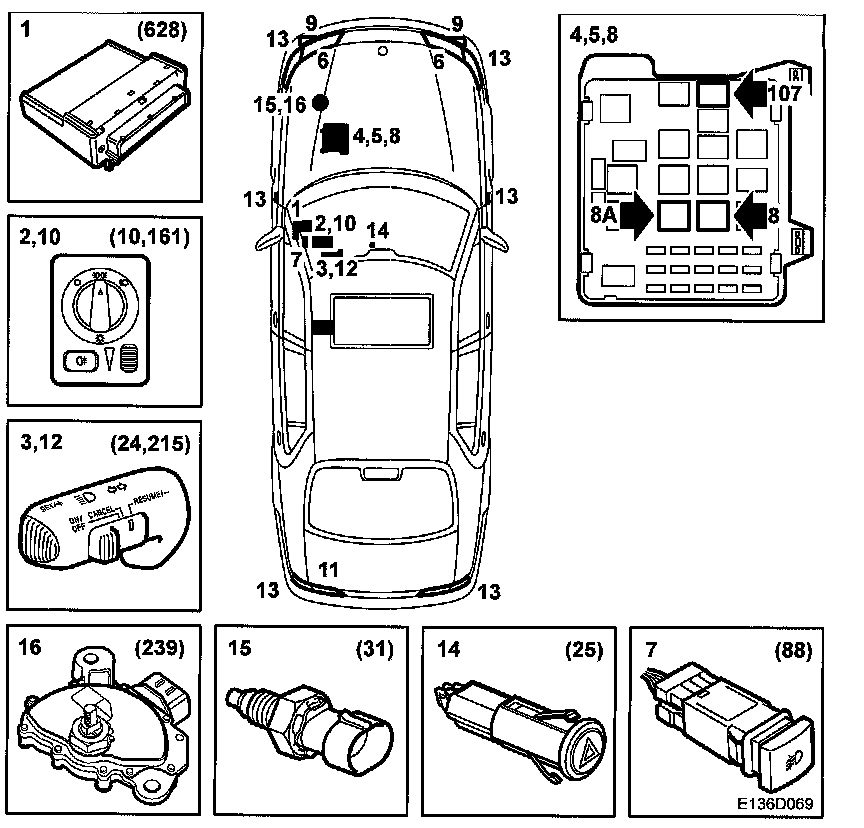

Main Components, Exterior Lighting







1. Control module, DICE (628)
2. Lights,switch (10)
3. Dipswitch (215)
4. Headlamp relay (8)
5. Main beam relay (8A)
6. Main/dipped beam lamps (11/12)
7. Front fog lights,switch (88)
8. Fog light relay (107)
9. Front fog lamps (85)
10. Rear fog lights,switch (161)
11. Rear fog lamp (33)
12. Direction indicators, switch (24)
13. Direction indicator lamps (27)
14. Switch, hazard flashers (25)
15. Reversing lights, switch (31)
16. Selector lever position switch 2, automatic gearbox (239)
