Control Module Bus Inputs

Control Module Bus Inputs







^ Maximum permissible torque, bus from TCM (502)
^ Sport position selected, bus from TCM (502)
^ Selector lever position, automatic transmission, bus from TCM (502)
^ Vehicle speed, rear left wheel, bus from MIU (540)
^ Reverse gear selected, manual gearbox, bus from DICE (628)
^ A/C request, bus from DICE (628)
^ A/C pressure, high-pressure side, bus from DICE (628)
^ Current consumption, bus from DICE (628)
^ Brake lights, bus from TWICE (632)
^ Fuel level, bus from MIU (540)
^ CHECK ENGINE Request, bus from TCM (502)
^ Immobilizer, bus from TWICE (632)
^ Ignition +50, bus from DICE (628)
^ Diagnostics, bus from DICE (628)/ diagnostic tool
^ Vehicle speed, front right wheel, bus from TC/ABS or ESP
^ Vehicle speed, output speed, bus from TCM (automatic transmission only)

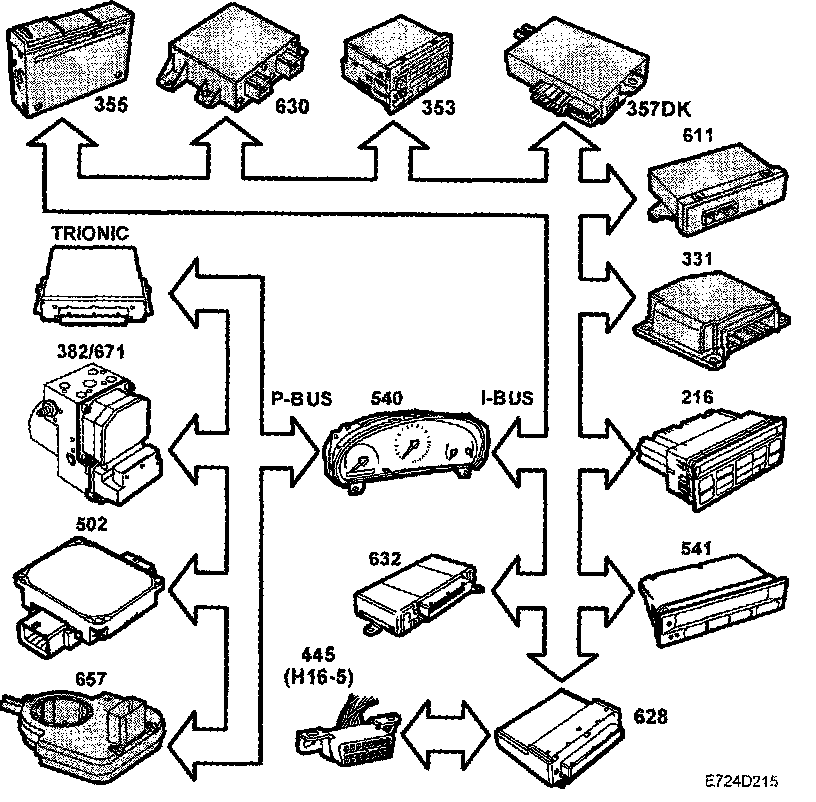

More detailed information on control module bus inputs can be found in the Bus Communication.
