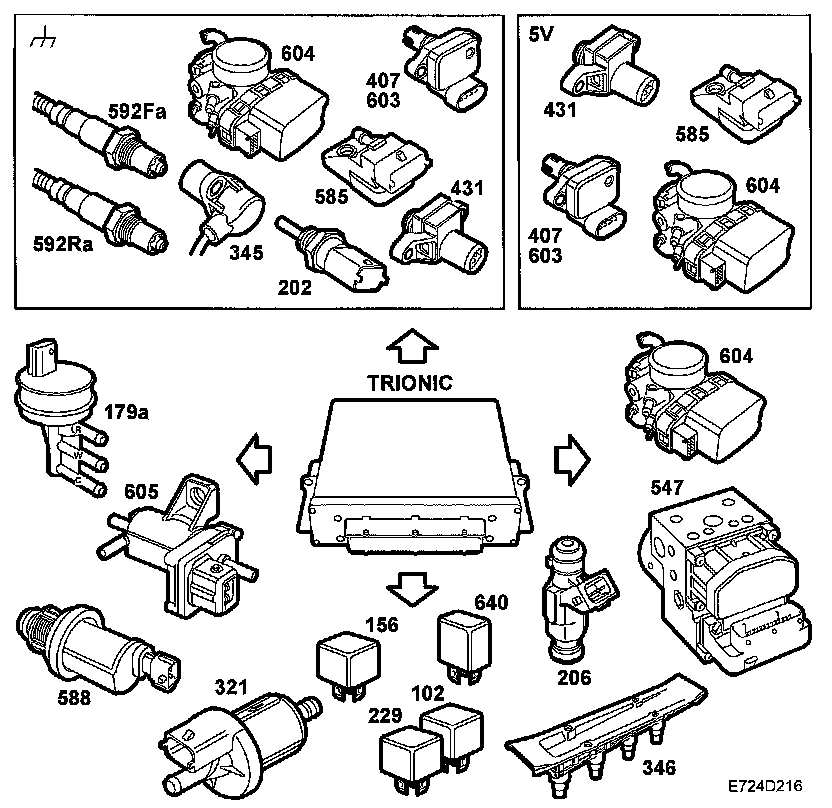

Control Module Outputs
Control Module Outputs ^
Sensor ground, reference ground
^
5 V supply to sensor
^
Main relay and
fuel pump relay ^
A/C relay (156)
^
Throttle motor
^
Relay, limp-home solenoid (640)
^
Charge air control valve (179a)
^
Control valve, bypass (605)
^
EVAP canister purge valve (321)
^
EVAP canister shut-off valve (588)
^
Injectors (206)
^
Ignition discharge module (346)
