Load Compensation

Load Compensation

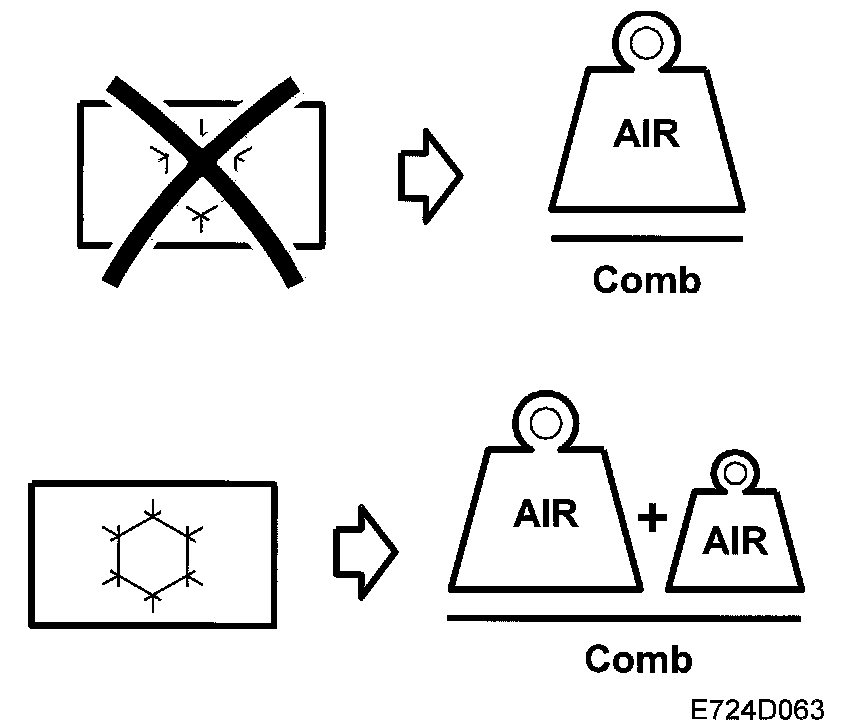

A/C
When DICE sends bus information A/C ON, Trionic T7 calculates the impending torque requirement of the compressor using the A/C pressure. The value is converted to mg air/combustion and constitutes the air mass/combustion required to compensate for the torque requirement of the compressor.

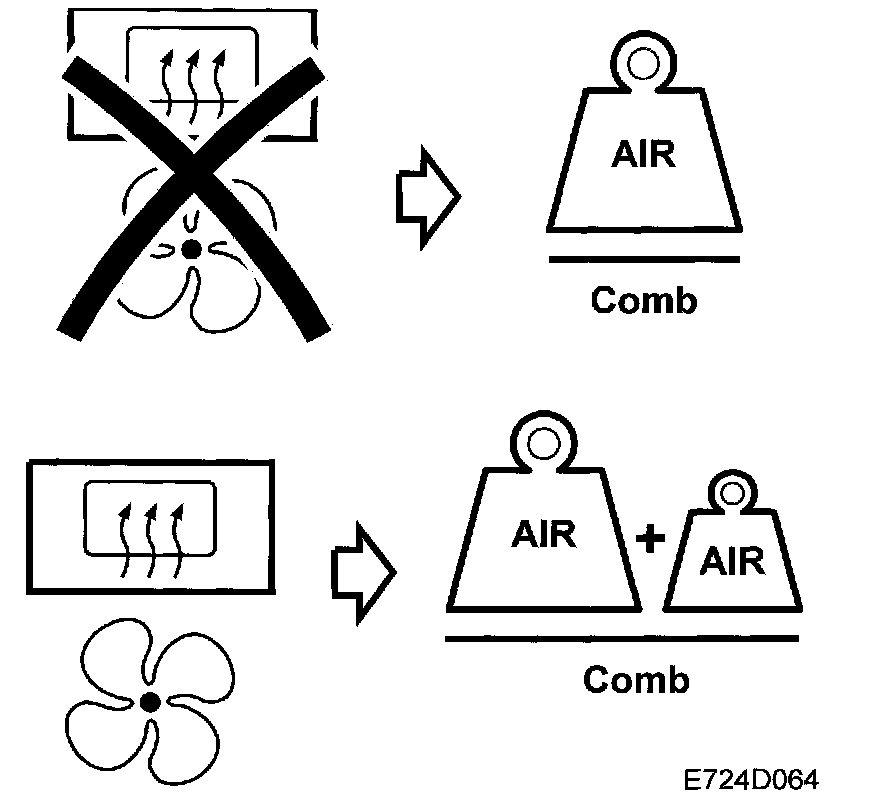

Electrical load







Just before the electrically heated rear window or the radiator fan is activated, DICE will send bus information "Current consumption", unit (A). Trionic T7 calculates the impending increase in the load on the generator.

The value is converted to mg air/combustion and constitutes the air mass/combustion required to fully compensate for the increase in load on the generator.
