Main Components

Main Components

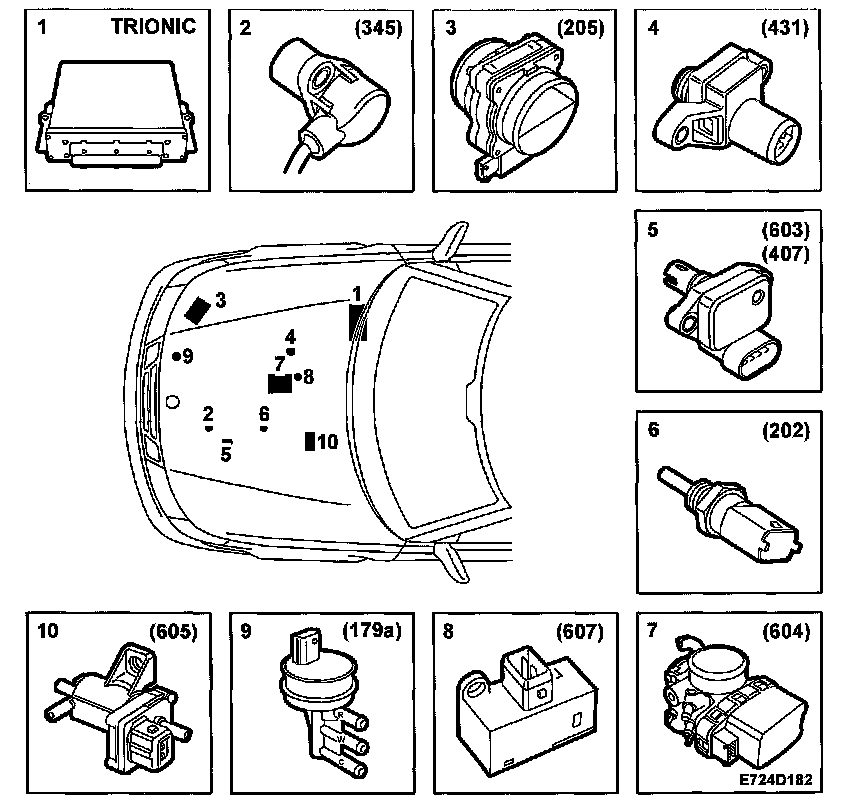

Components 1 Through 10:

1. Control module (589)
2. Crankshaft position sensor (345)
3. Mass air flow sensor (205)
4. Manifold absolute pressure sensor (431)
5. Charge air absolute pressure sensor (603)
Intake air temperature sensor (407)
6. Temperature sensor, coolant (202)
7. Throttle body (604)
8. Limp-home solenoid (607)
9. Charge air control valve (179a)
10. Control valve, bypass (605)
11. Switch, cruise control (141)

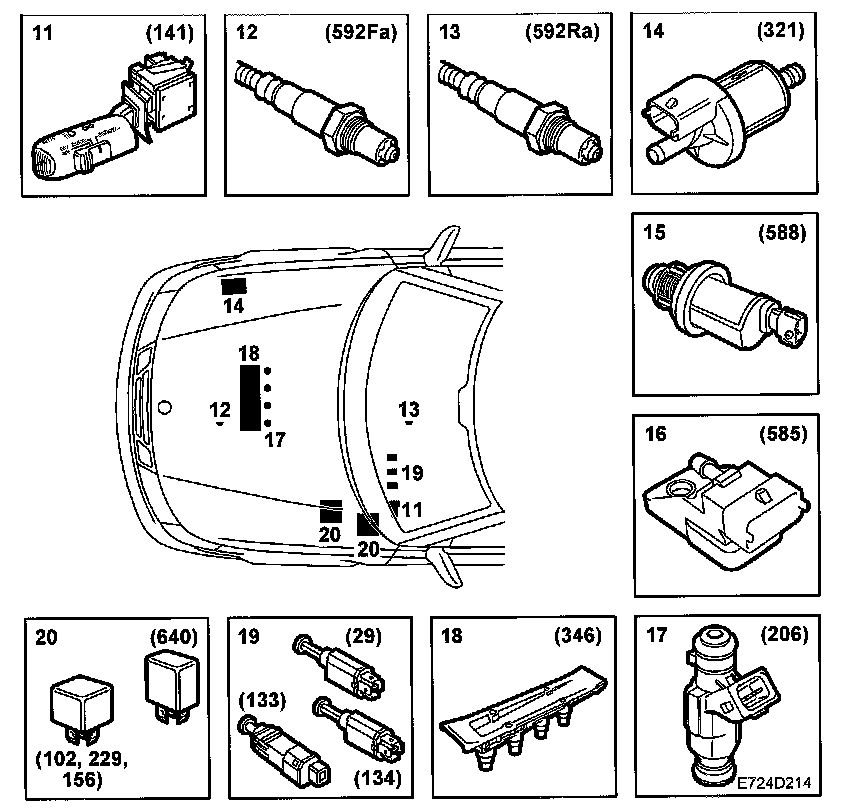

Components 11 Through 20:

12. Oxygen sensor 1 (592Fa)
13. Oxygen sensor 2 (592Ra)
14. EVAP canister purge valve (321)
15. EVAP canister shut-off valve (588)
16. Tank differential pressure sensor (585)
17. Injectors (206)
18. Ignition discharge module (346)
19. Clutch pedal switch (133)
Brake pedal switch (134)
Brake light switch (29)
20. Main relay (229)
Fuel pump relay (102)
Relay, limp-home solenoid (640)
A/C relay (156)
(A/C relay is mounted on the main relay board under the bonnet.)
