Electronic Throttle Actuator: Specifications

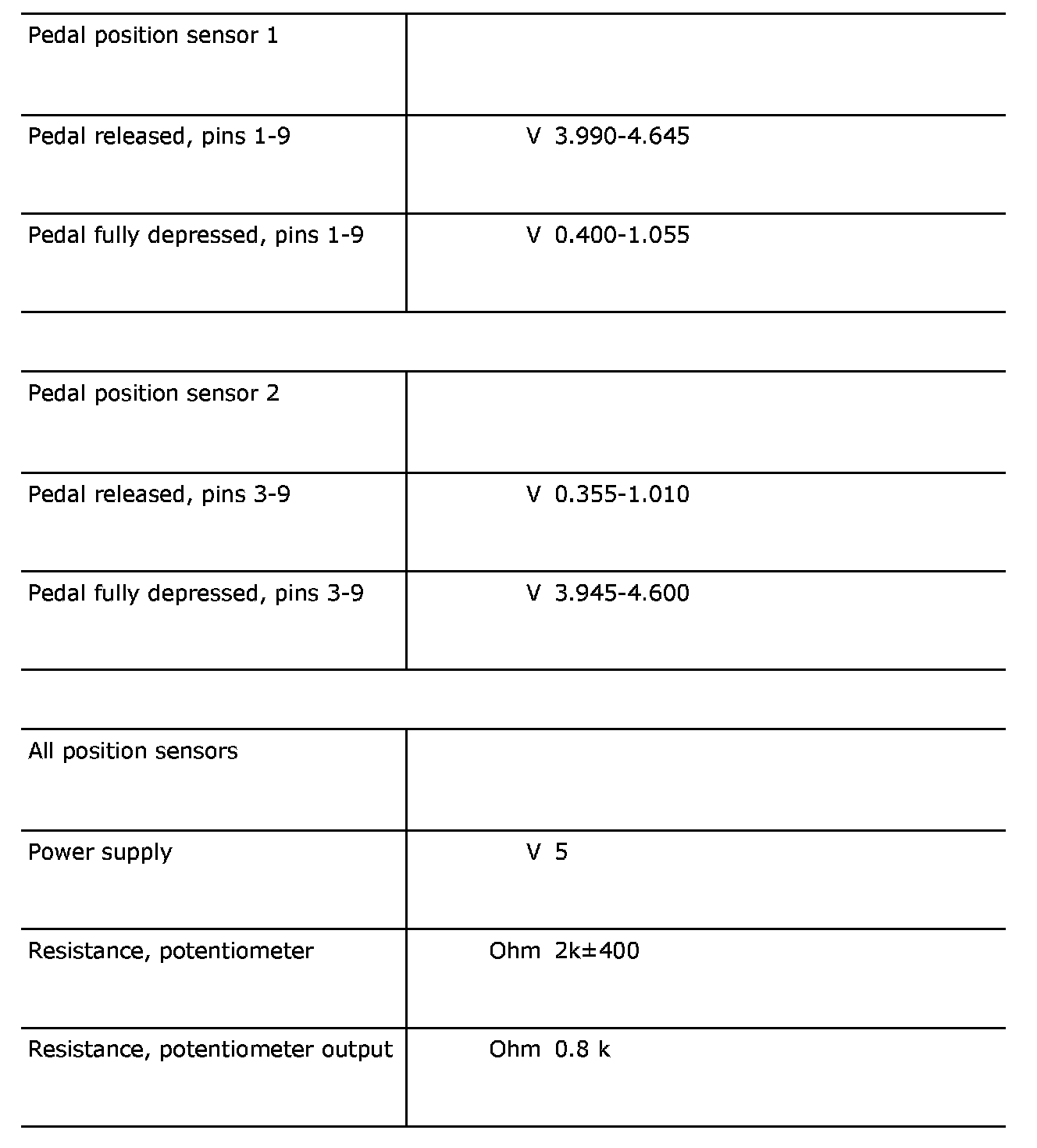

Throttle Body (604)Part 1:

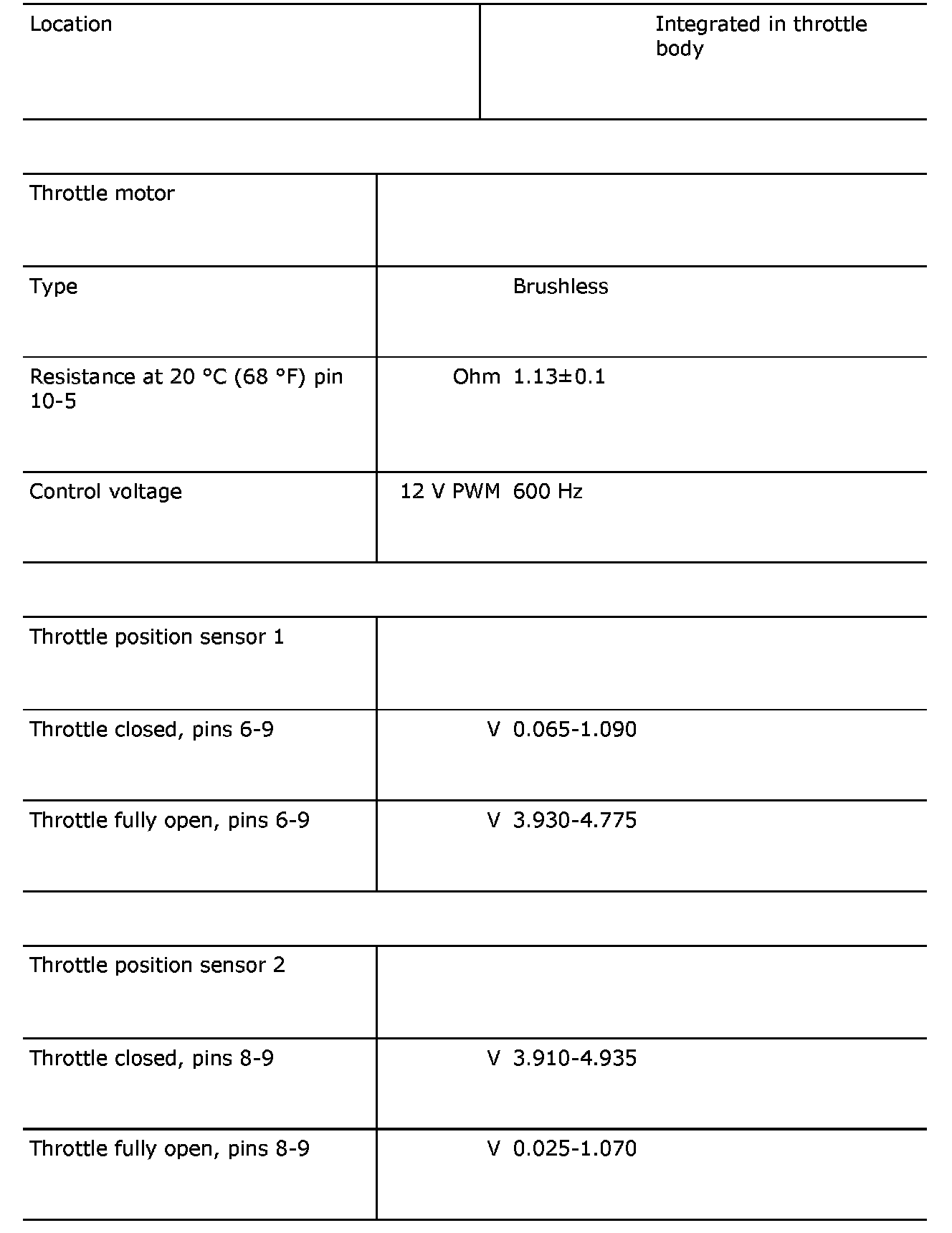

Part 2:
All the potentiometers are connected in parallel between
5 V and ground. The total resistance is therefore
approx. 500 ohms ±100 ohms.
Avoid taking resistance readings during fault diagnosis. Use voltage readings for the respective position sensors instead.
