Manifold Pressure/Vacuum Sensor: Service and Repair

Manifold Absolute Pressure Sensor

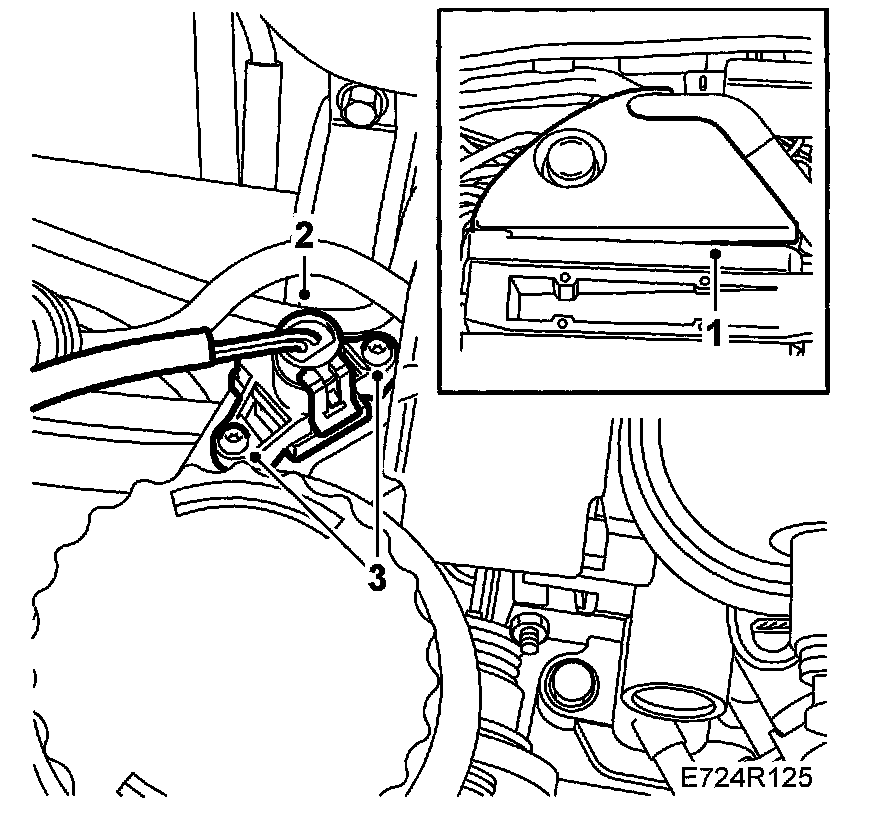

To remove
1. Remove the upper engine cover.

2. Unplug the connector.
3. Remove the sensor.

To fit
1. Apply vaseline (part no. 30 20 271) or equivalent to the sensor threads. Fit the sensor.

2. Spray the connector with Kontakt 61 (part no. 30 04 520). Plug in the connector.
3. Fit the upper engine cover.
