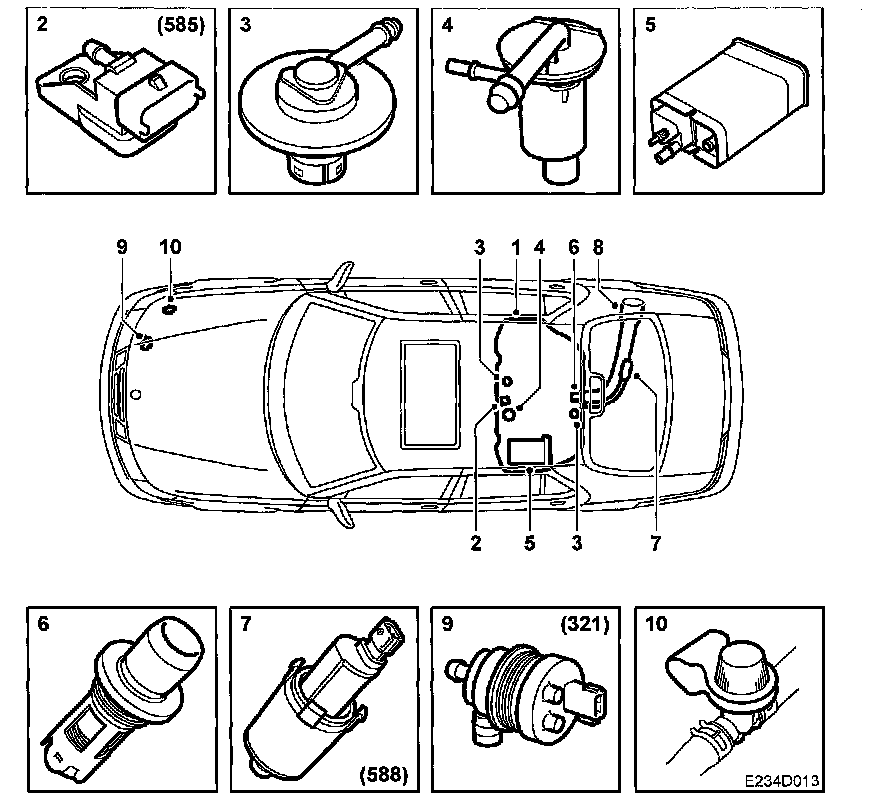

Evaporative Emissions System: Locations
Main Components 1.
Fuel tank
2.
EVAP pressure sensor (585)
3.
Roll-over shut-off valve
4.
Float valve
5.
Evaporative emission canister
6.
Check valve, fuel tank
7.
EVAP shut-off control valve (588)
8.
Fuel filler pipe
9.
EVAP canister purge valve (321)
10.
Service port
