Components

Air Cleaner

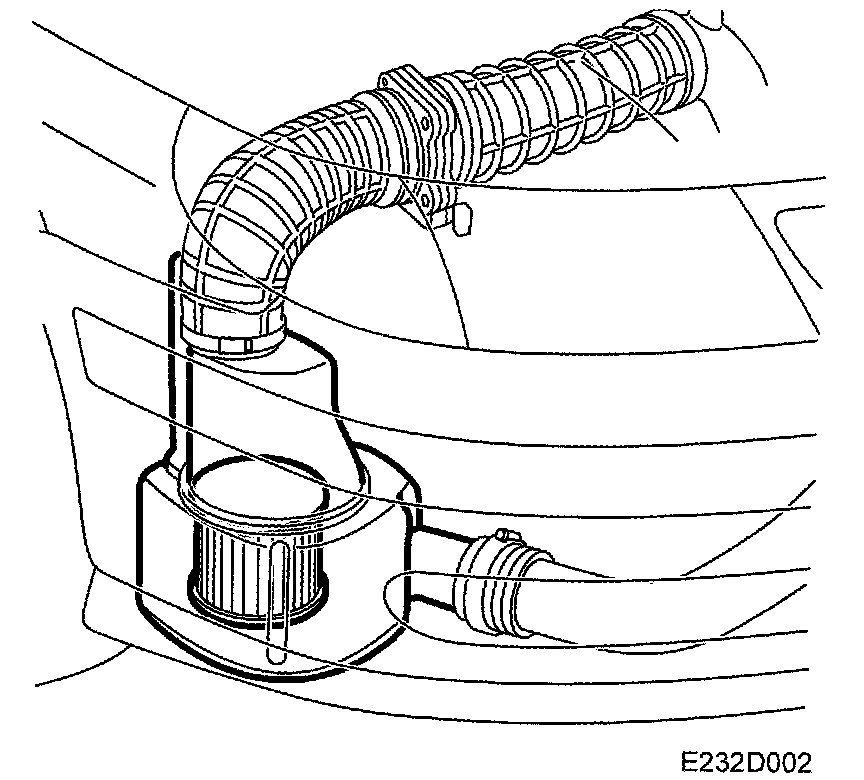

The air cleaner is situated in front of the right-hand front wheel and consists of a casing (air chamber) in which a cylindrical air filter element is mounted. The filter element is changed from below. A cover is held in place on the casing by means of four bolts.

There is a connector for the mass air flow sensor on the connecting hose. It is secured by means of hose clips.

Intake air is admitted via an air induction pipe positioned in front of the radiator.
