Impact Sensor, Front
Impact Sensor, FrontTo remove 1.

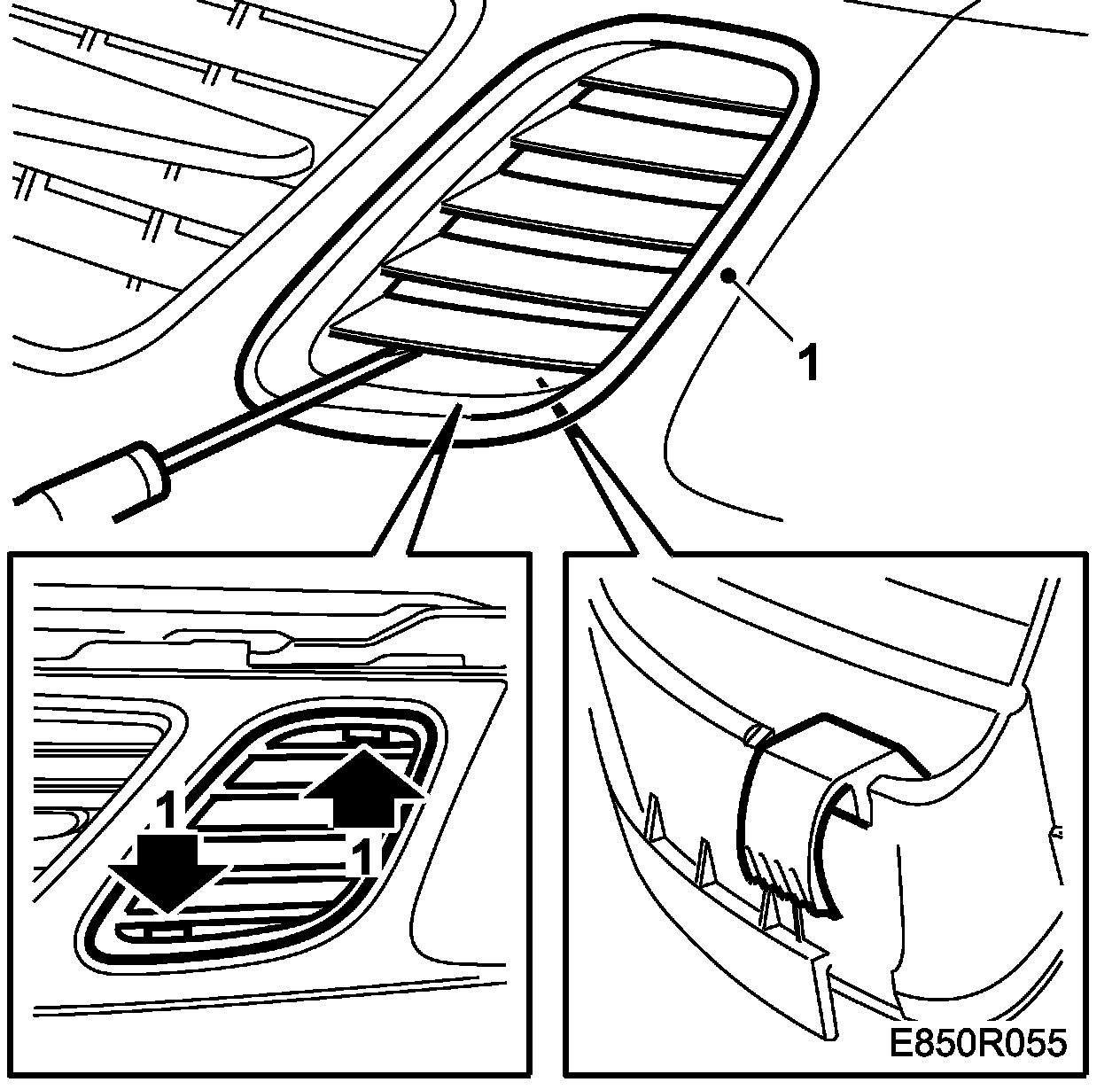

Remove the small grille on the side where the
impact sensor is to be removed.
Pull on the slat that is next to the bottom one while pressing a screwdriver against the catch.
2.

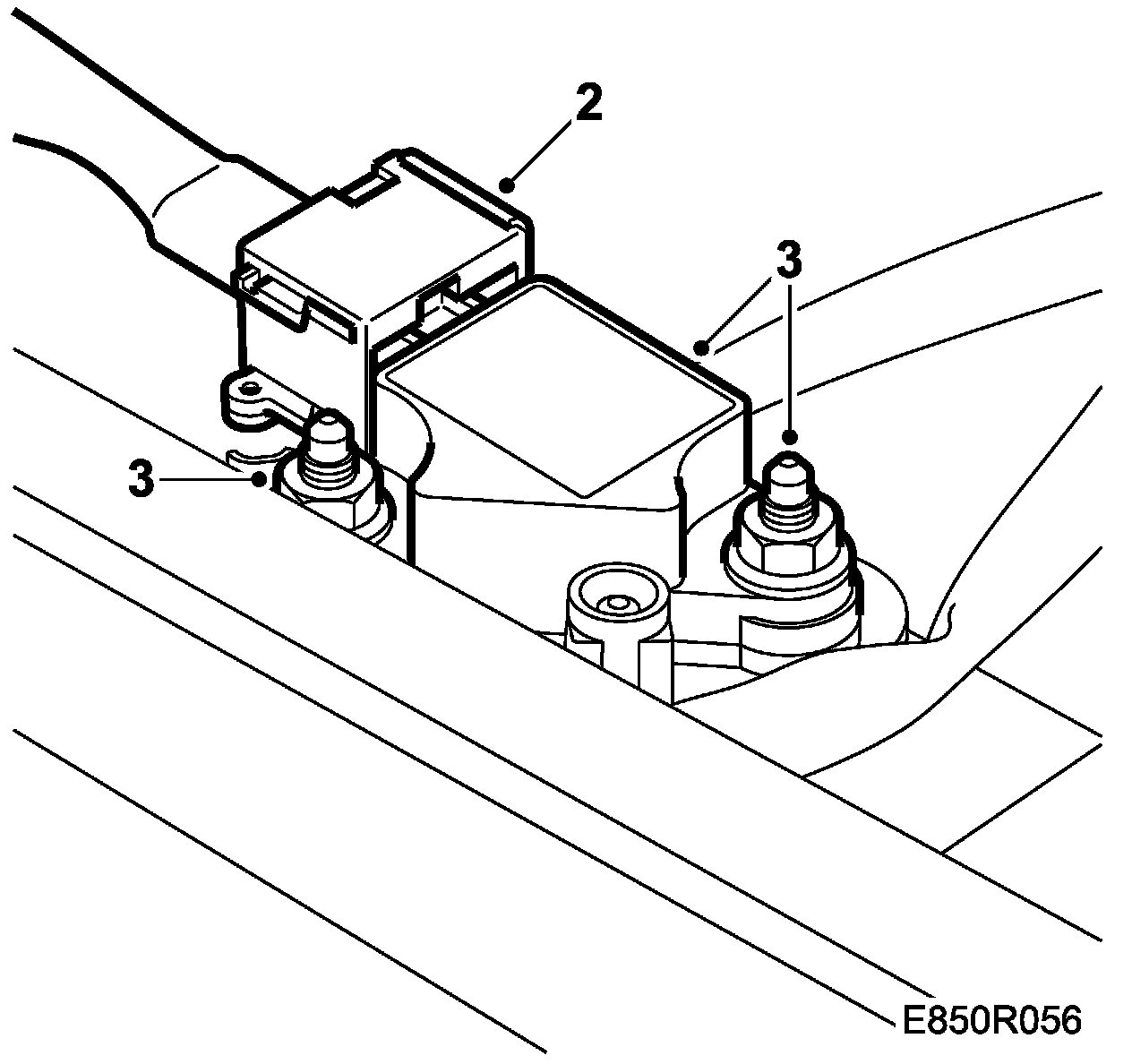

Remove the connector.
3.
Remove the
impact sensor.
To fit 1.
Fit the
impact sensor.
Tightening torque 10 Nm (7.3 lbf ft)
2.
Plug in the connector.
3.
Refit the grille.
