Air Bag Control Module

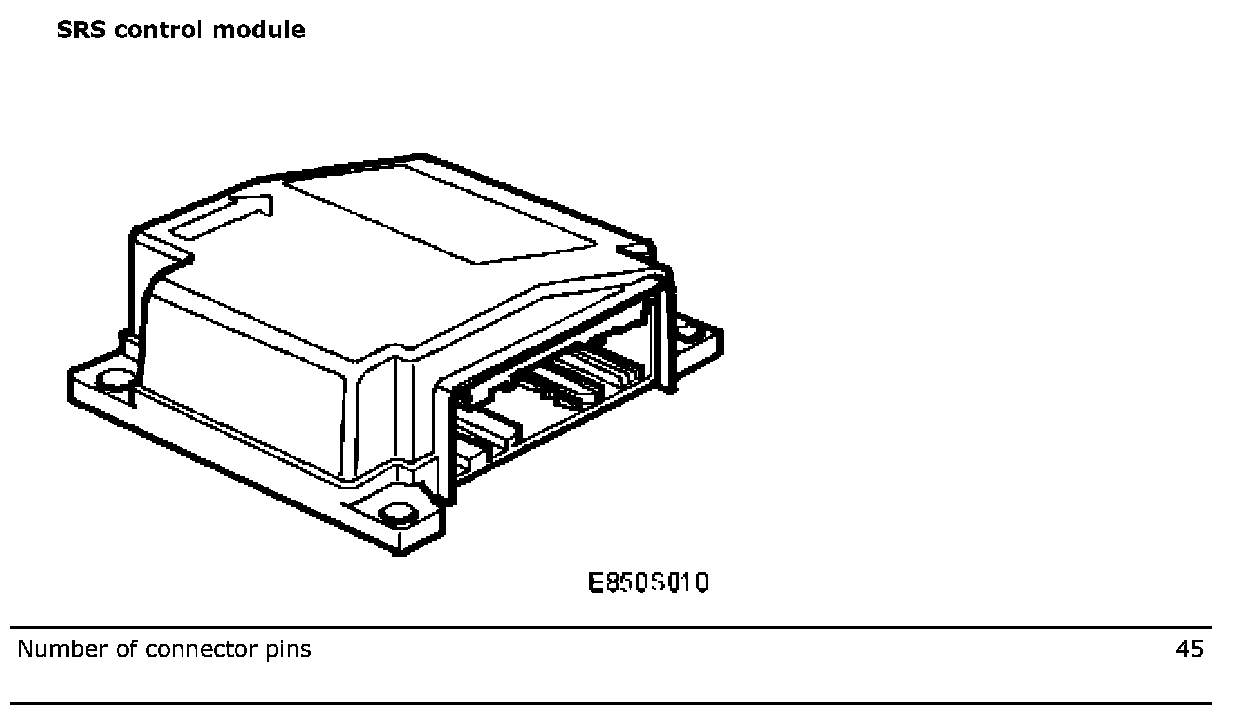

SRS Control ModuleSRS Control Module:

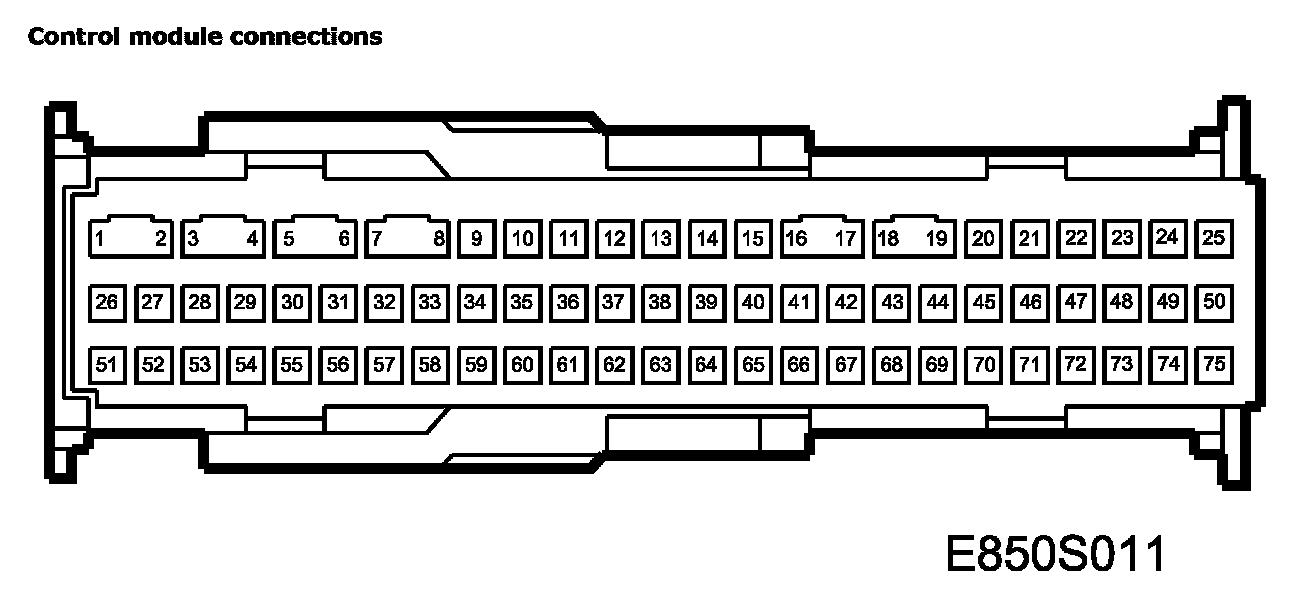

Control module connectionsControl Module Connections:

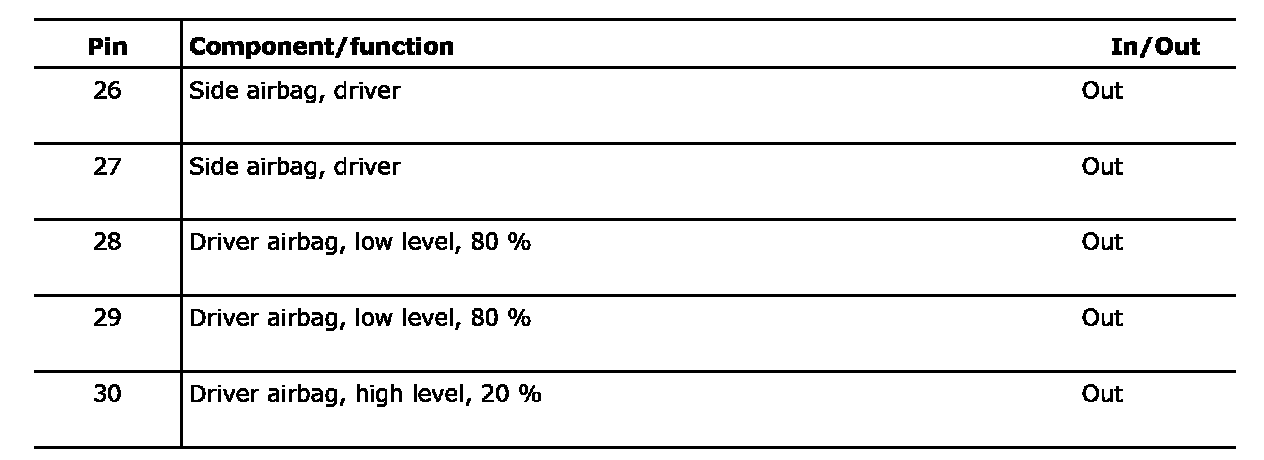

Part 1:

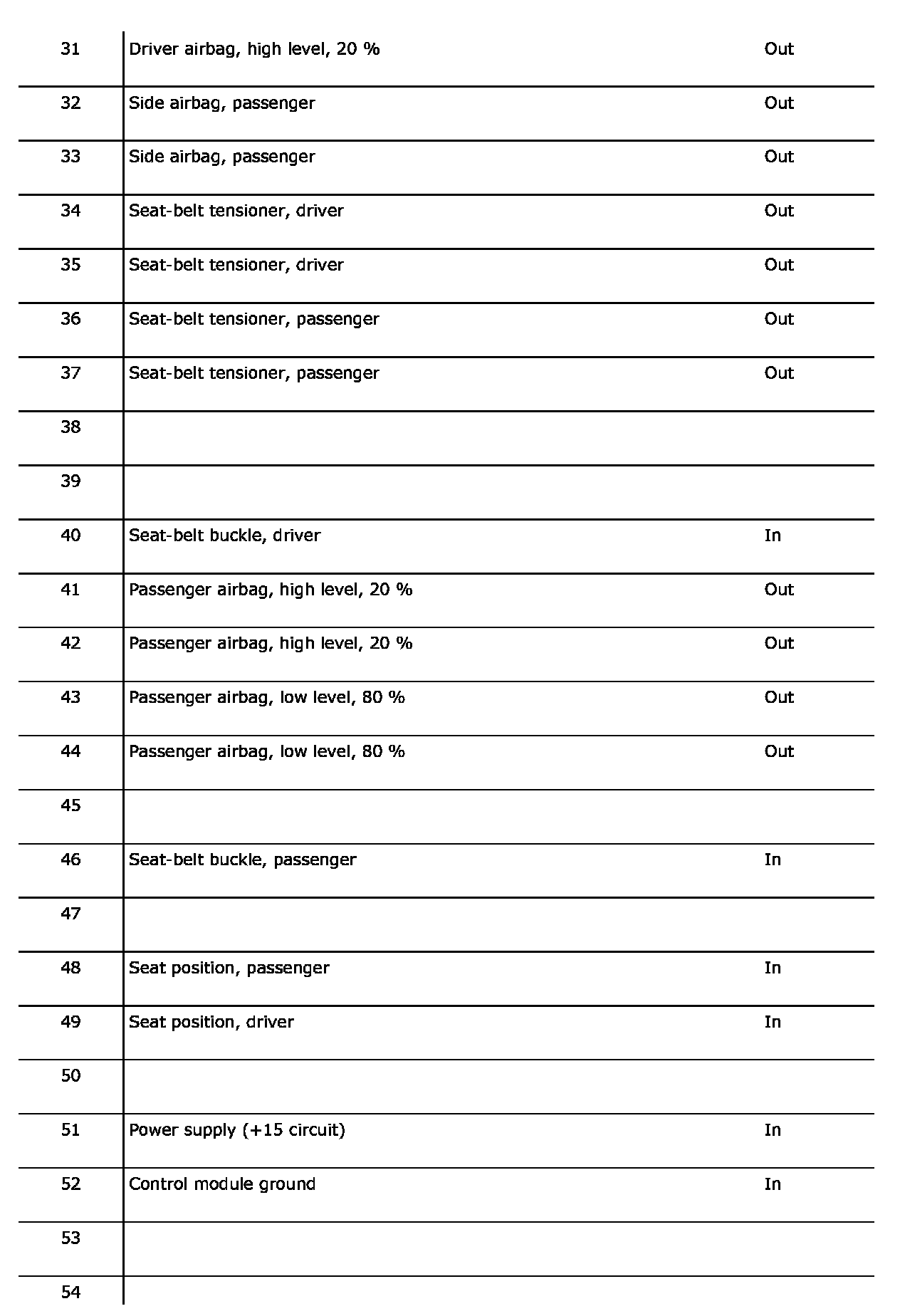

Part 2:

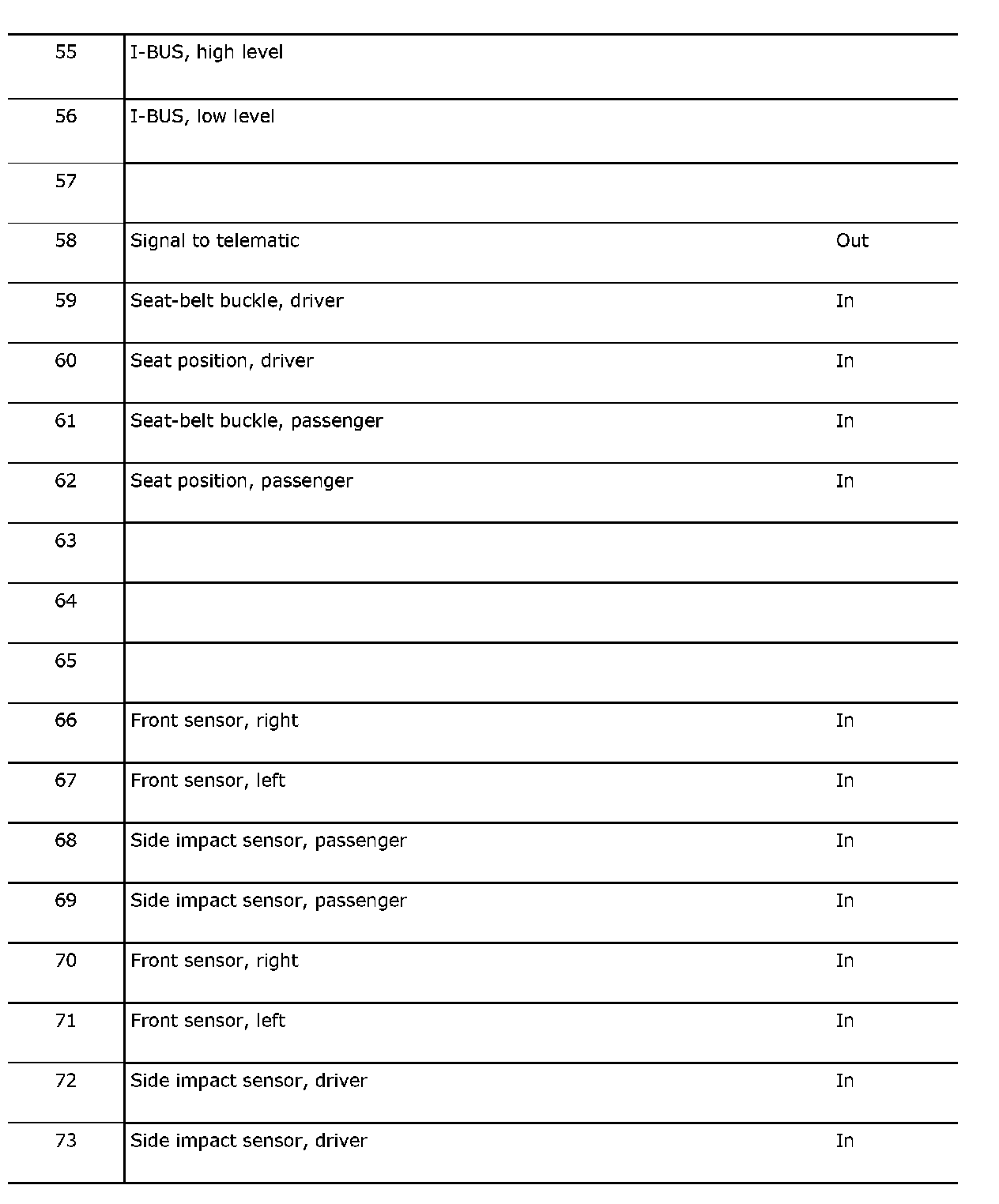

Part 3:
Measurement valuesThe following table indicates the values for measuring SRS levels. The diagnostic tool should be used for measurement.
