Air Temperature Sensor ( Ambient / Intake )

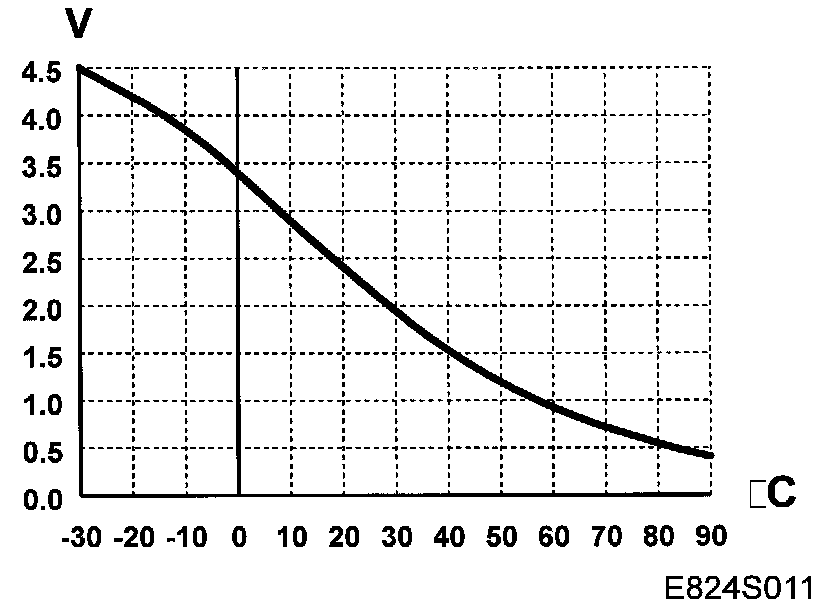

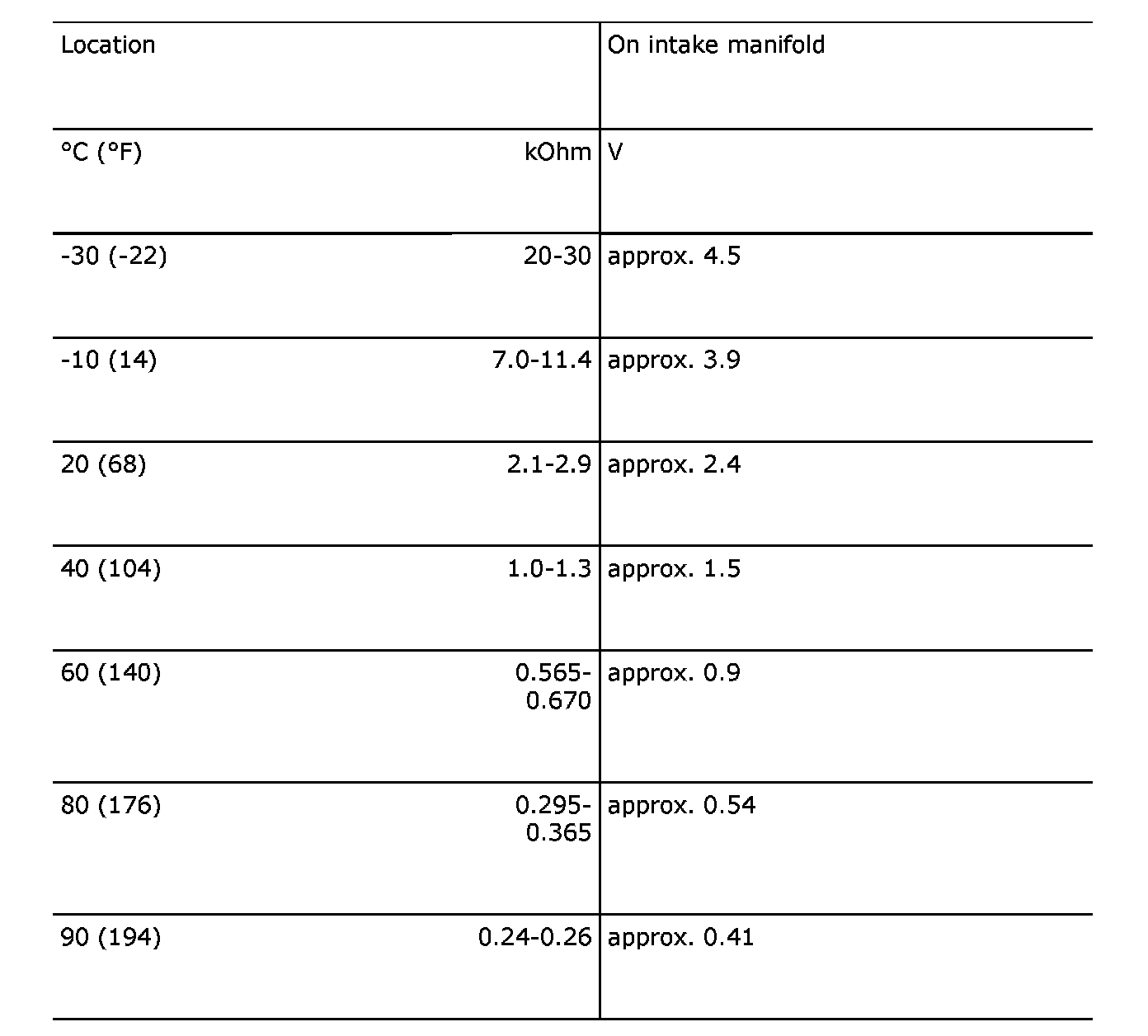

Intake Air Temperature Sensor (407)The temperature sensor (407) is integrated with the absolute pressure sensor (603) in one component. The sensor (407/603) is located on the charge air pipe.
Power supply
5 V through
2.74 kohm resistor in control module.
