Manifold Pressure/Vacuum Sensor

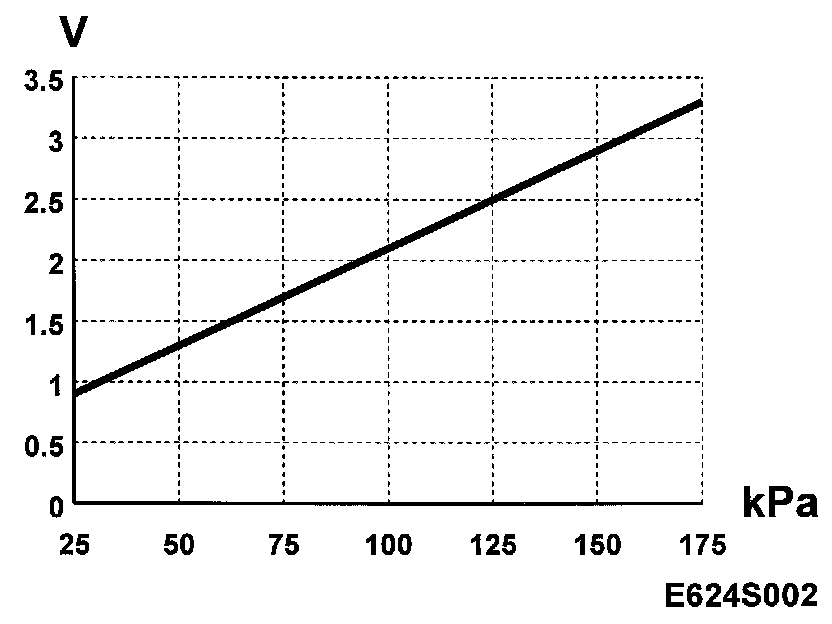

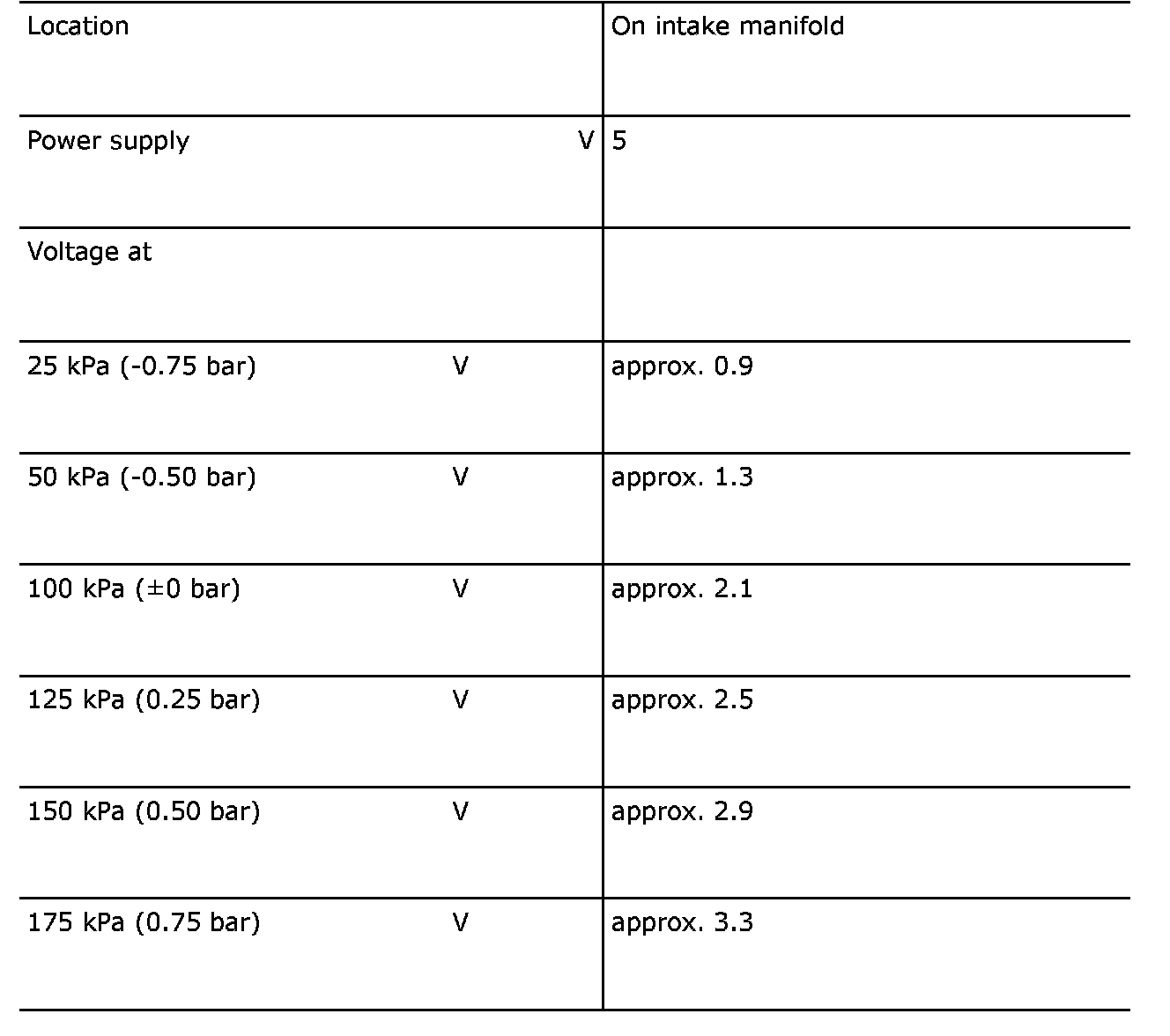

Manifold Absolute Pressure Sensor (431)Pressure given in kPa refers to absolute pressure, i.e.
100 kPa corresponds to barometric pressure at sea level.
When checking the pressure sensor with a pressure/vacuum pump, slightly lower voltages may be obtained at high altitudes.
