Main Unit (Premium/Prestige)

Test Values And Control Module Connections For Premium/Prestige







Scope

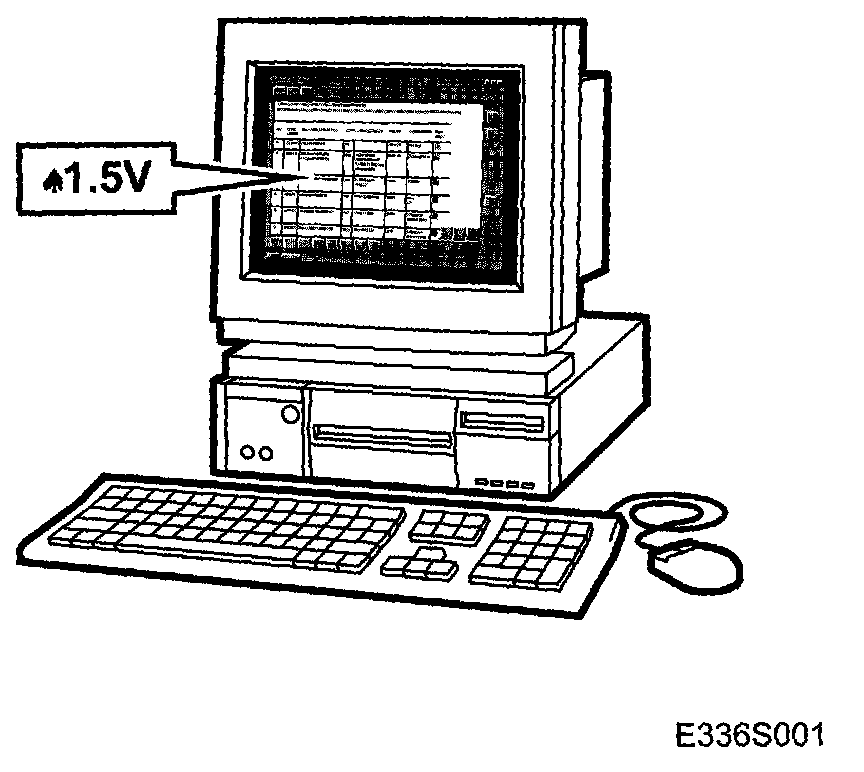

Values and instructions for testing the voltage levels of the control modules are found under the relevant headed sections.

Remember:
^ Observe the conditions set for testing and use common sense when assessing the results.
^ The test values presented apply when the ignition is in the ON position unless otherwise stated.
^ First make sure that the control module is receiving power and that it is grounded.
^ Then check all the sensor inputs and signals from other systems.
^ Finally, check the control module outputs. Remember that the test values do not indicate whether the module is working.
^ If a test value is incorrect, consult the wiring diagram to trace which leads, connectors and components should be checked more thoroughly.

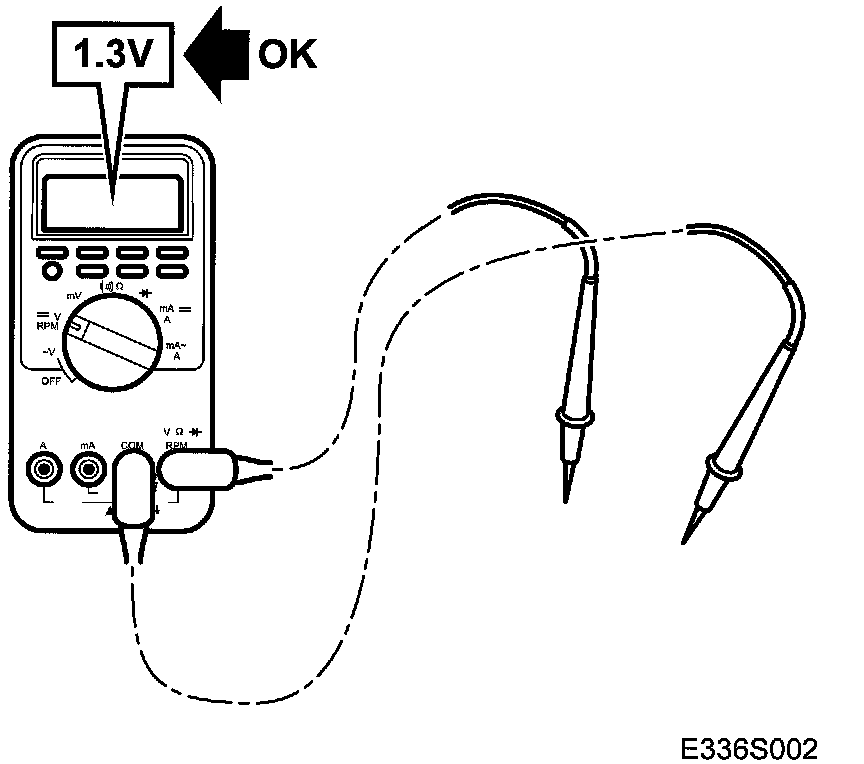

^ The specified test values refer to those obtained with calibrated Fluke 88/97.
^ Test values in % (+) and ms (+) show the pulse ratio and pulse duration of the signal. A test instrument capable of giving pulse ratio and pulse duration readings should be used. The (+) symbol indicates a positive trigger pulse, TRIG+.

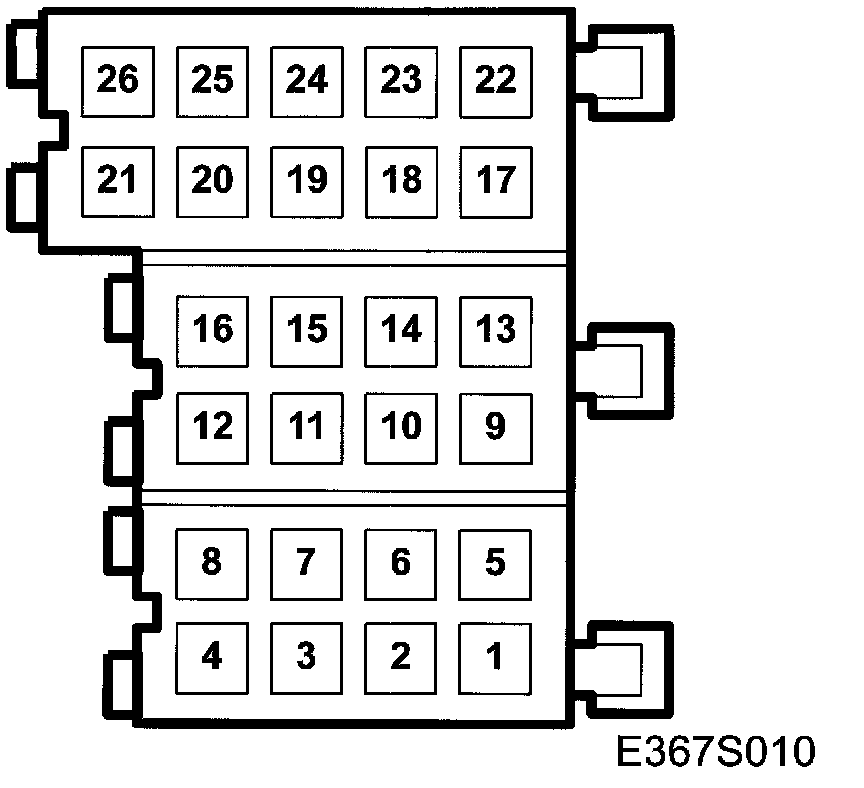

Main unit connections (26-pin)

Pin No 1-2:

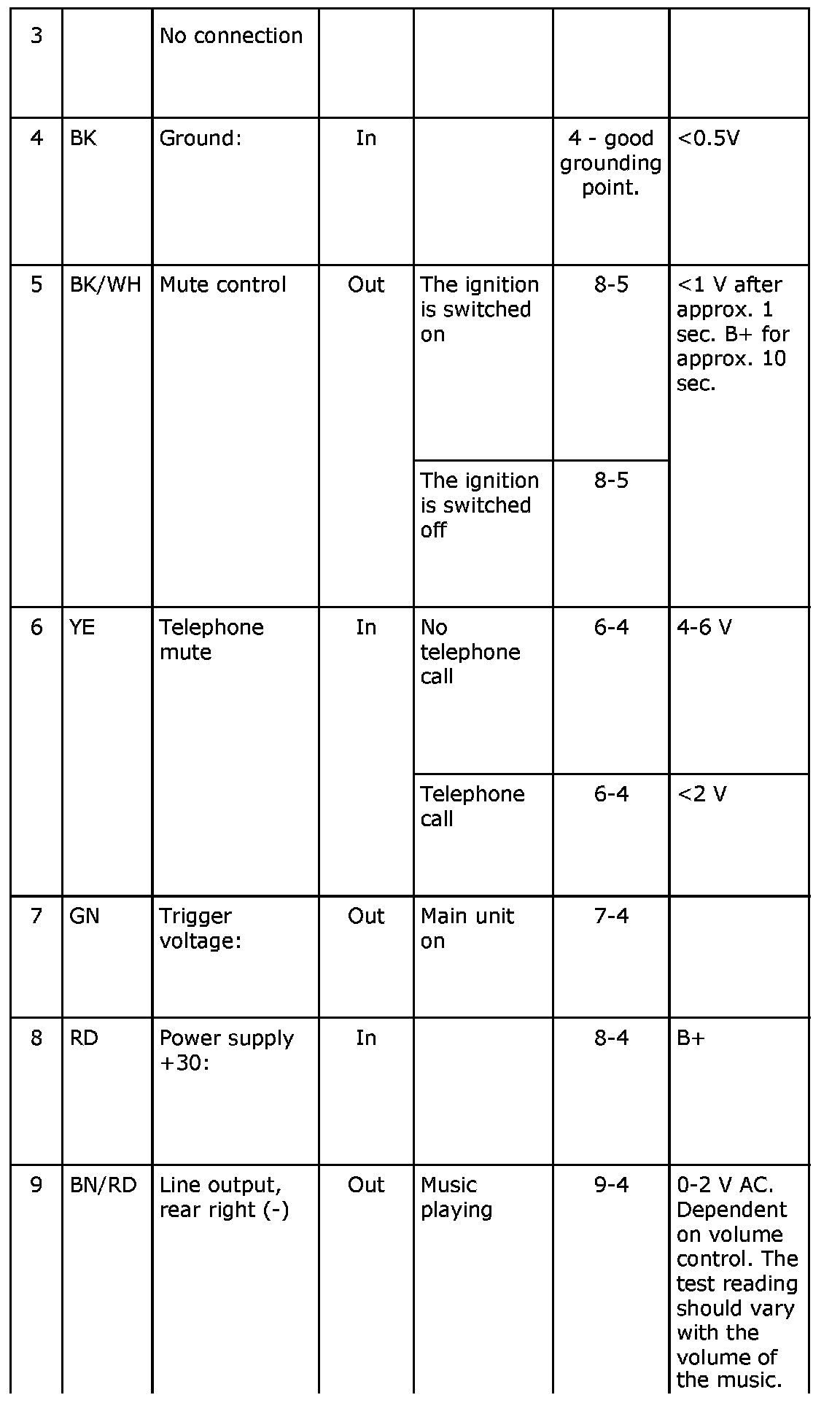

Pin No 3-9:

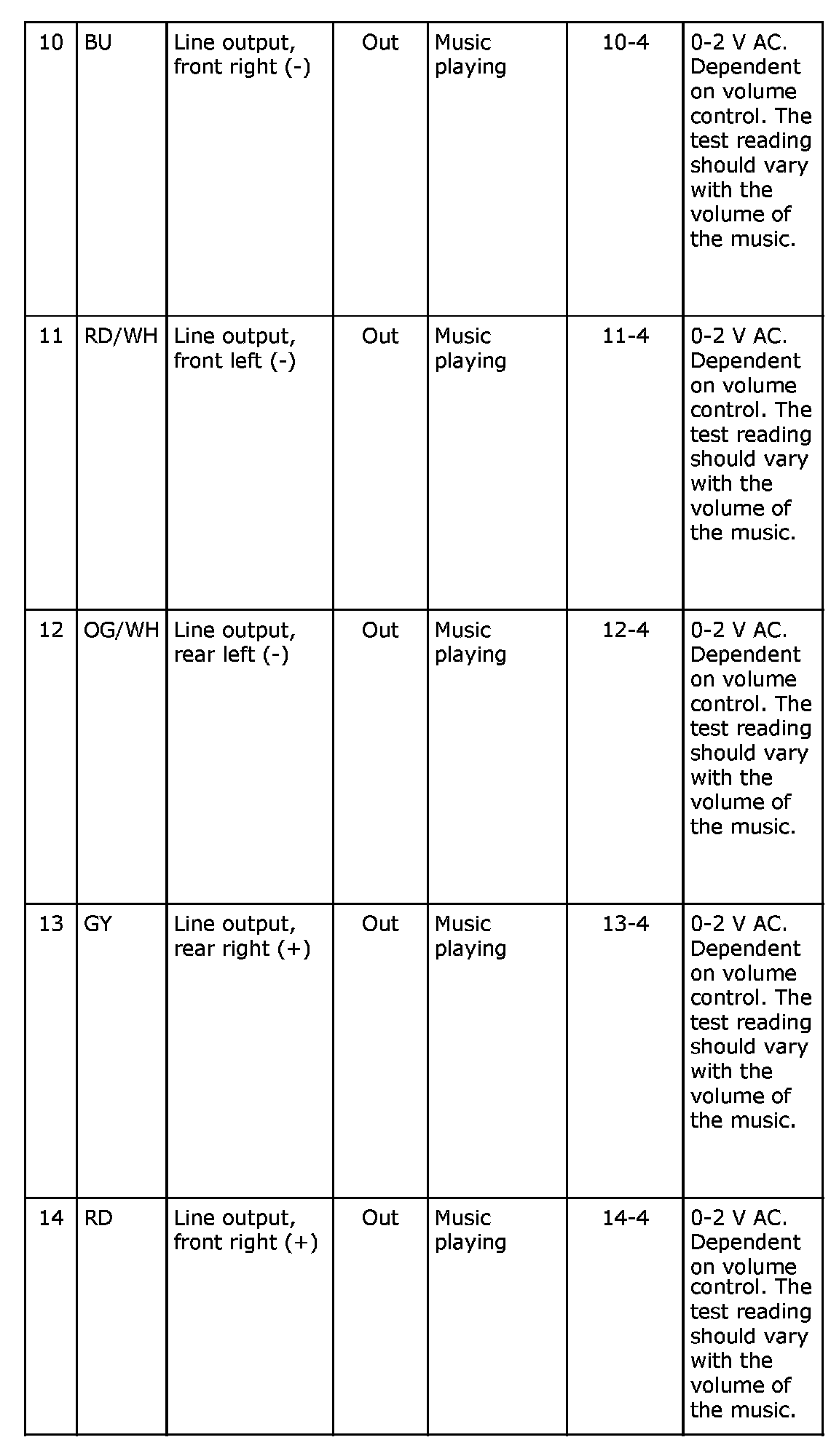

Pin No 10-14:

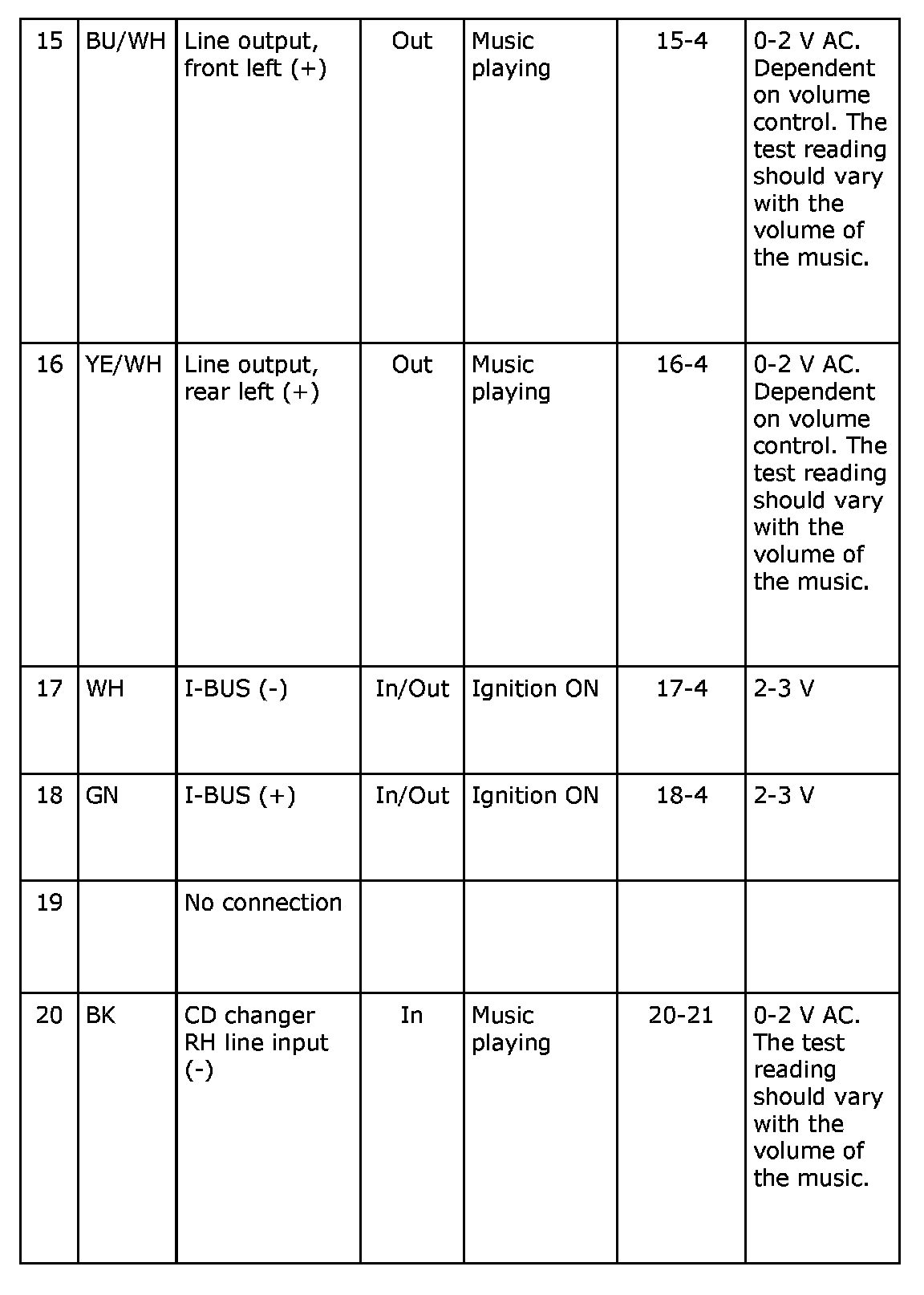

Pin No 15-20:

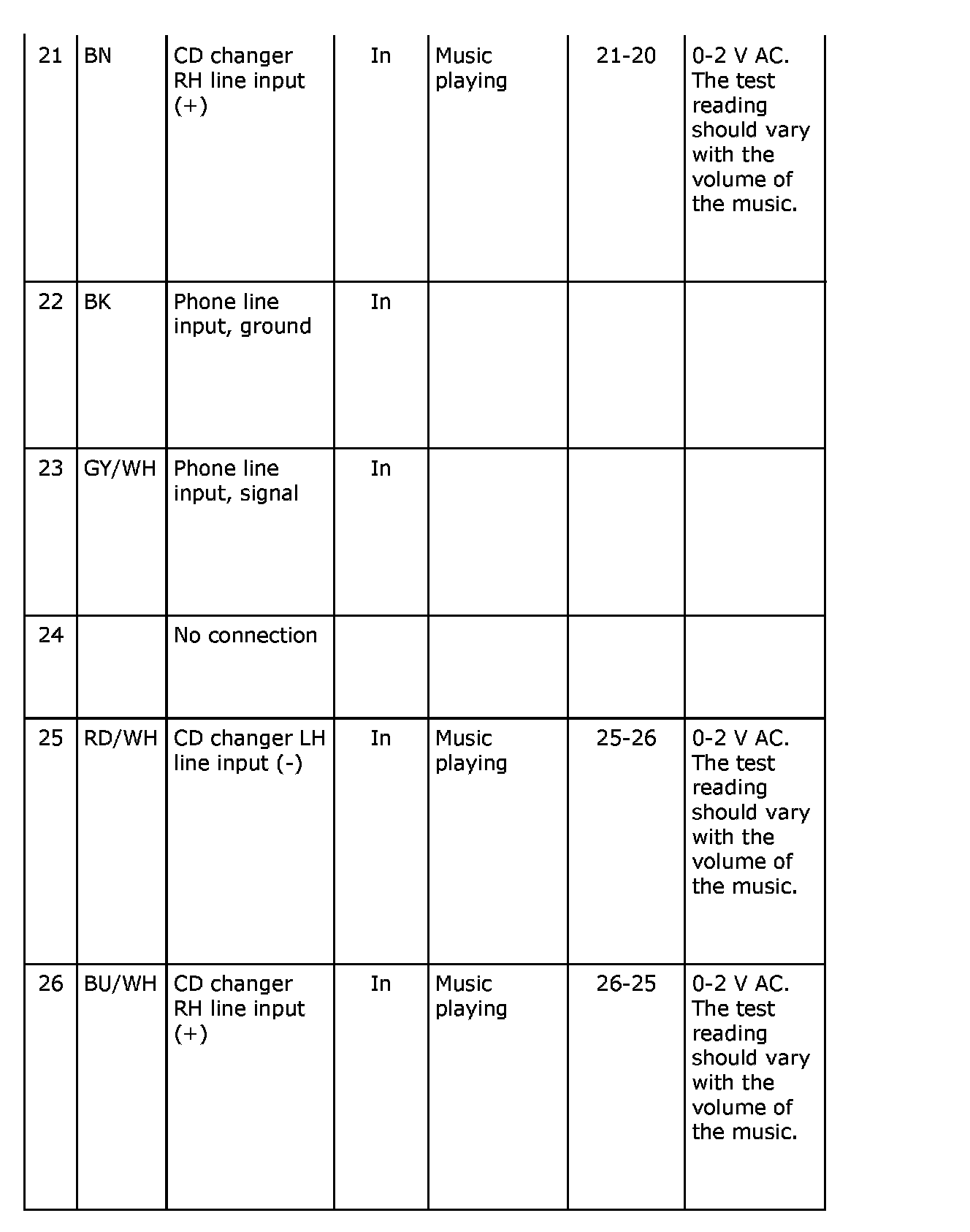

Pin No 21-26:
