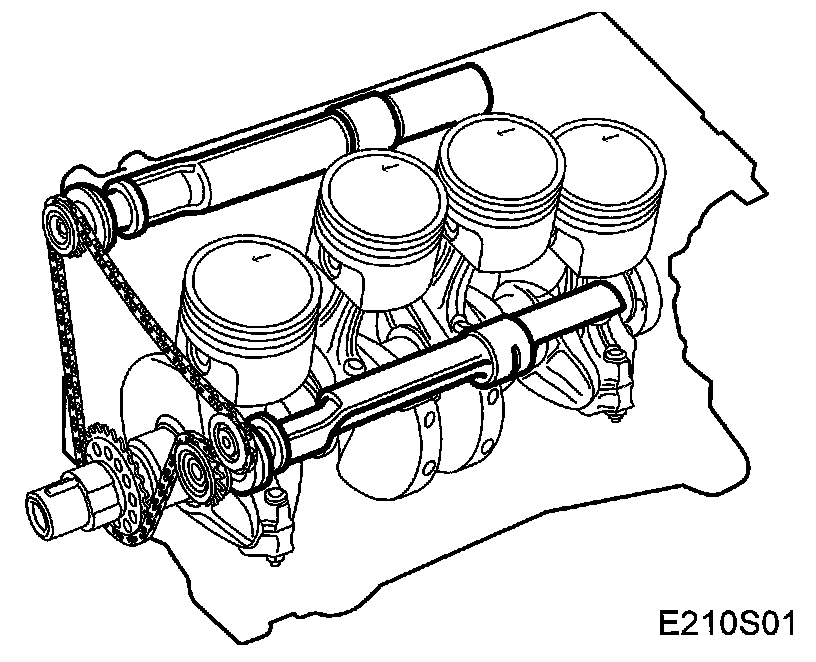

Balance Shaft

Balancer Shafts






General Data
Diameter of balancer-shaft journal (inner) 39.892 mm - 39.908 mm
Diameter of balancer-shaft bearing (inner) 39.988 mm - 40.043 mm
Bearing clearance, journal bearing (inner) 0.080 mm - 0.151 mm
Maximum permissible bearing clearance (inner) 0.18 mm
Diameter of balancer-shaft journal (outer) 19.947 mm - 19.960 mm
Diameter of balancer-shaft bearing (outer) 20.000 mm - 20.021 mm
Bearing clearance, journal bearing (outer) 0.040 mm - 0.074 mm
End float 0.060 mm - 0.460 mm
