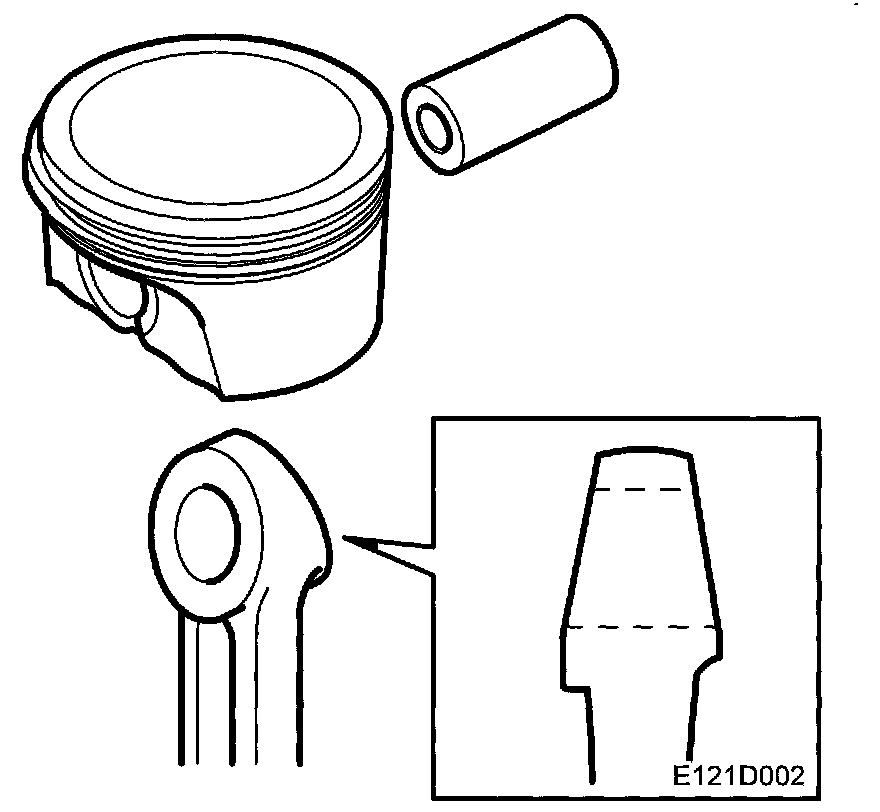

Connecting Rod, Engine
Gudgeon pins Diameter
23.996 - 24.000 mm
Clearance, gudgeon pin/
connecting rod bush
0.012 - 0.021 mm
Length
63 mm
Connecting rods Diameter at big-end
56.000 - 56.019 mm
Gudgeon pin bushing, inside diameter (fitted)
24.012 - 24.017 mm
Maximum difference in weight between
connecting rod big-ends in the same engine
6 grams (0.21 ounces)
Length B235 Centre-Centre
153 mm
Length B205 Centre-Centre
159 mm
