Torque Specifications

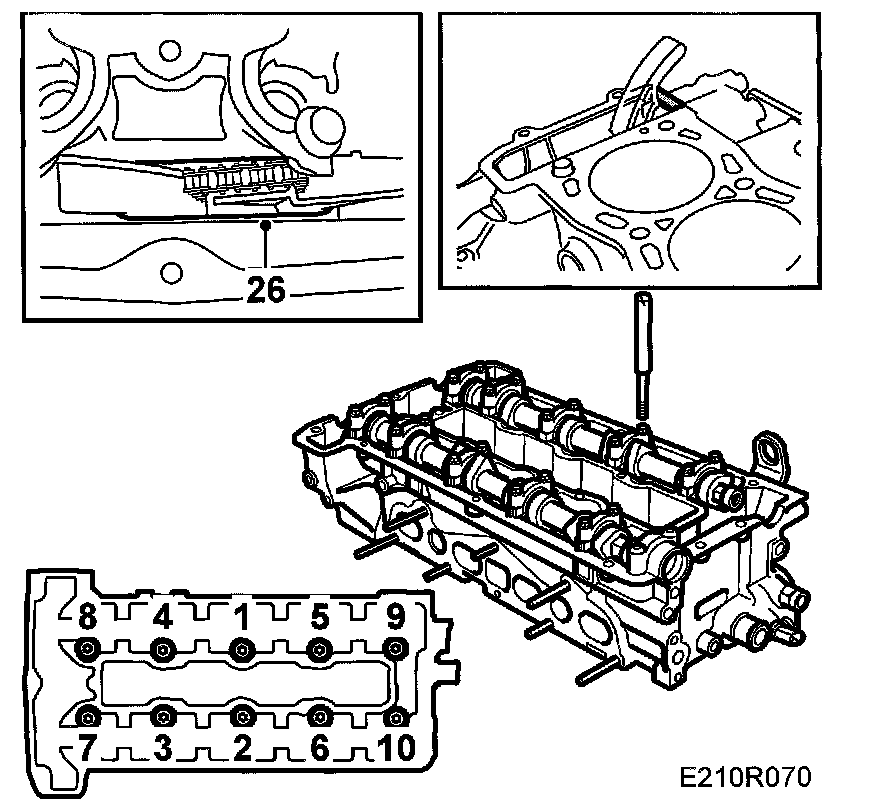

Cylinder Head Tightening Sequence:
Cylinder HeadExhaust manifold M8
25 Nm (19 ft. lbs.)
Cylinder head, stage I M12
40 Nm (30 ft. lbs.)
Step II
60 Nm (44 ft. lbs.)
Step III
Tighten a further 90°
Intake Manifold M8
22 Nm (16 ft. lbs.)
Camshaft Bearing Caps M8
15 Nm (11 ft. lbs.)
Camshaft Sprockets M10
63 Nm (47 ft. lbs.)
