Power Steering System


Torque Specifications

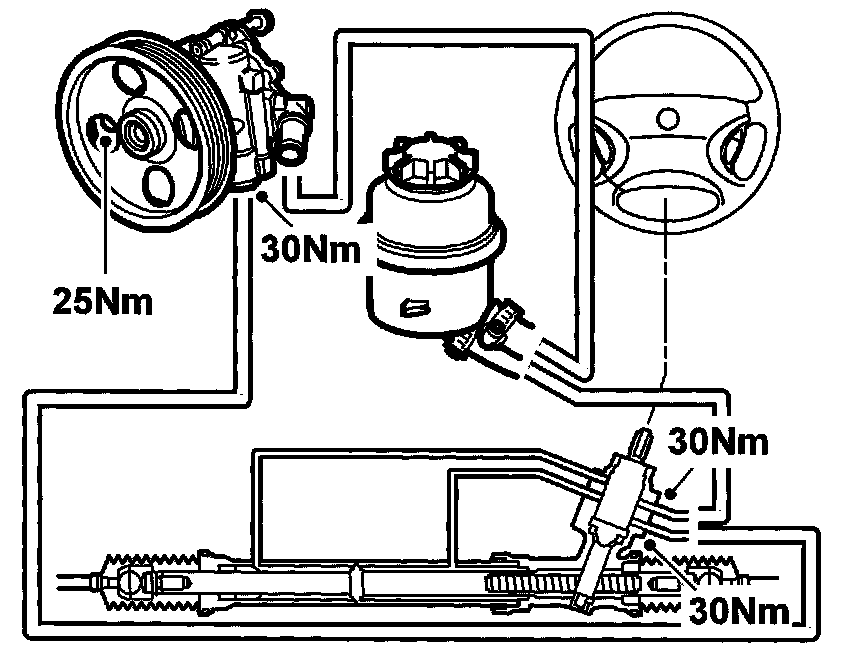

Part 1 Of 2:





Power Steering Pump 25 Nm (20 ft. lbs.)
Delivery Pipe, Power Steering Pump 30 Nm (25 ft. lbs.)
Delivery Pipe, Valve Body 30 Nm (25 ft. lbs.)
Return Pipe, Valve Body 30 Nm (25 ft. lbs.)
