System Specifications
Oil Pressures Oil pump pressure-reducing valve opens at
3.8 bar
Warning lamp comes on when oil pressure is below
0.3 bar - 0.55 bar
Minimum oil pressure
2.5 bar
at 2000 rpm with warm engine 105 ± 2 °C (221 ± 4 °F) and 10W30 oil
End float between oil pump rotor and housing
0.03 mm - 0.08 mm

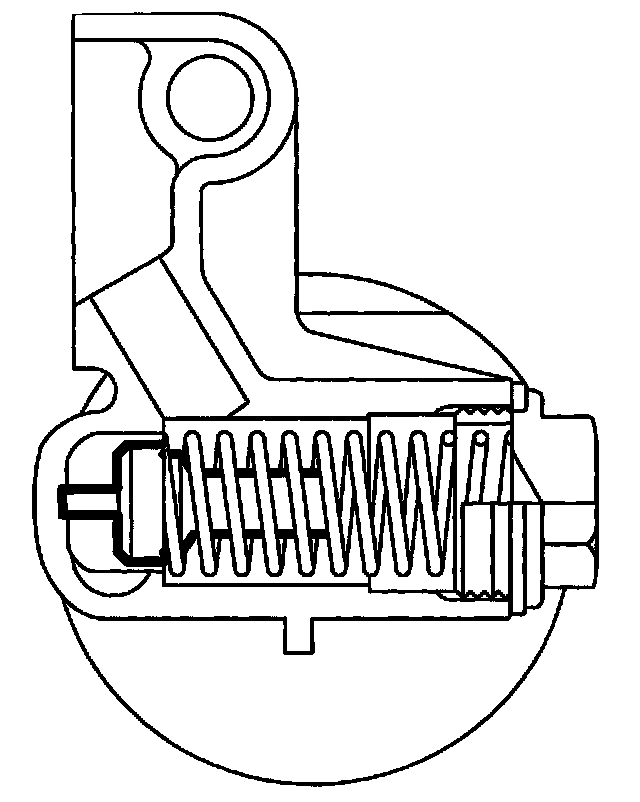

Engine oil cooler thermostat opens at
105 ± 2 °C (221 ± 4 °F)
