Steering Mounted Controls Transmitter: Service and Repair
Steering Wheel SwitchWARNING: Read the Safety and handling directions and Before changing a control module before starting work.To remove 1.
Remove the airbag on the driver's side.

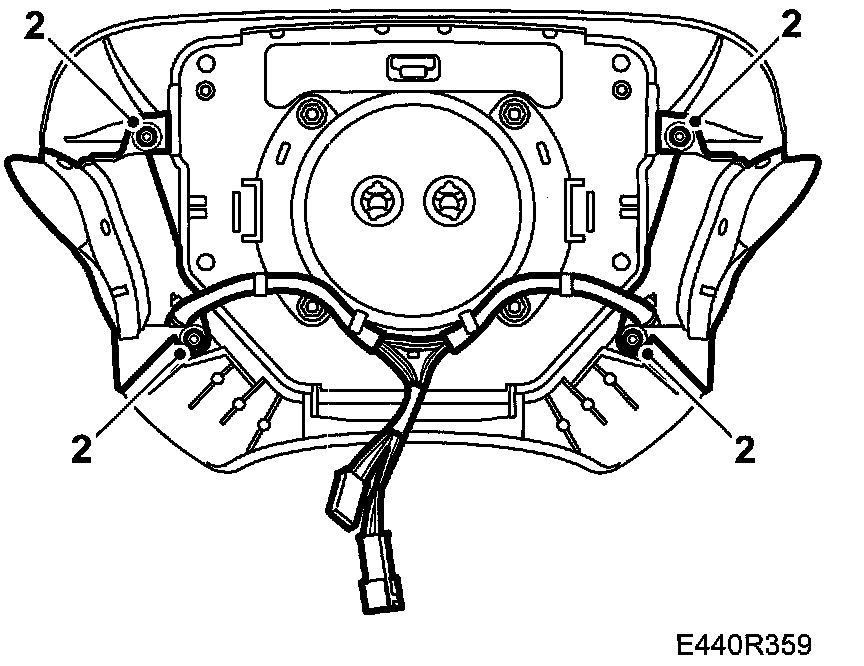

2.
Remove the
steering wheel switch.

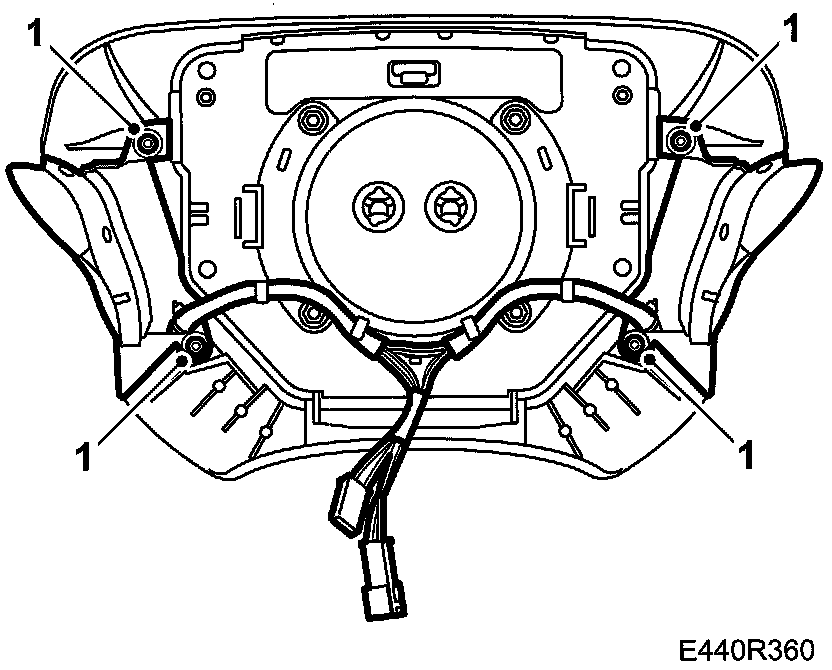

Fitting 1.
Fit the
steering wheel switch.
2.
Fit the airbag.
