Input Shaft Speed Sensor
Input Shaft Speed SensorTo Remove

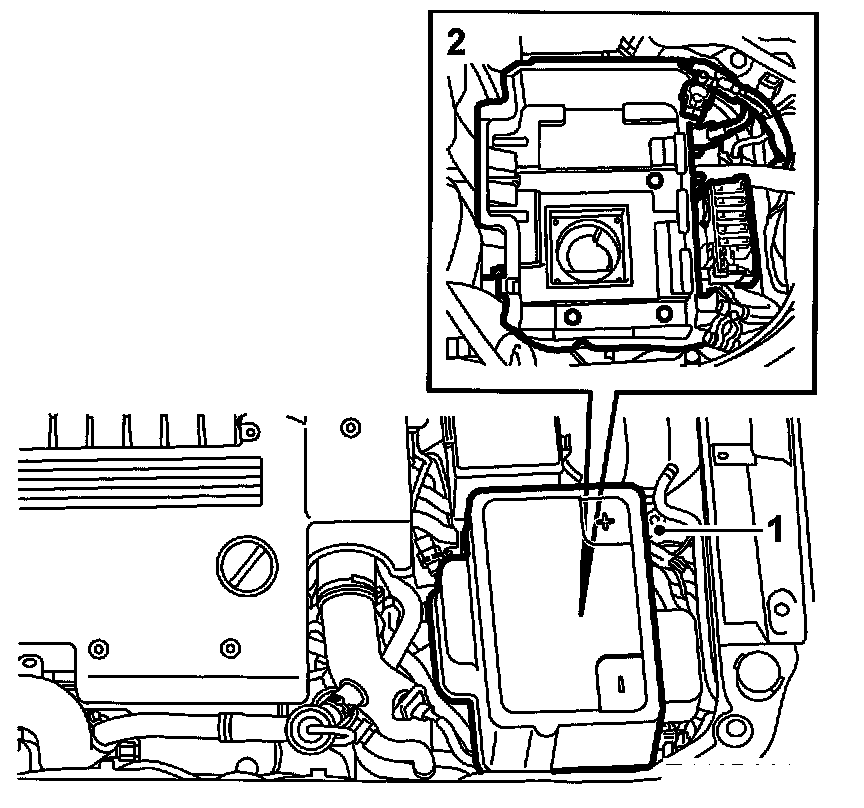

1. Remove the battery cover and the battery.
2. Remove the MAXI fuse holder from the battery tray and place it to one side. Remove the battery tray.
3. Undo the battery cable bracket.

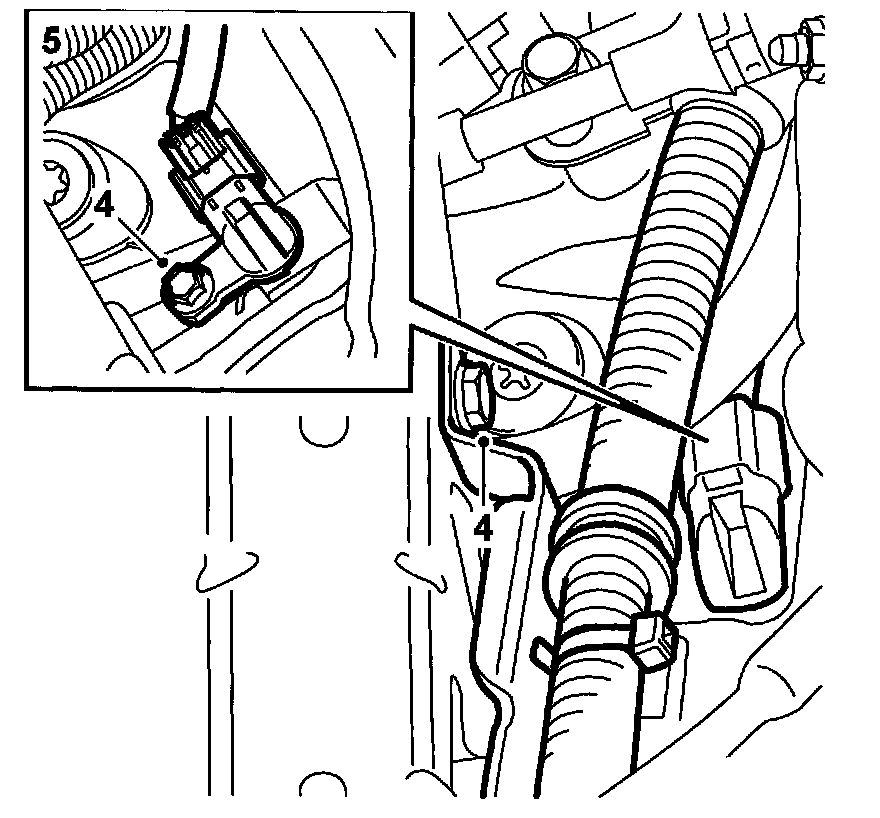

4. Clean the area round the sensor. Remove the sensor's retaining bolt.
5. Remove the sensor.
6. Unplug the connector.
Fitting

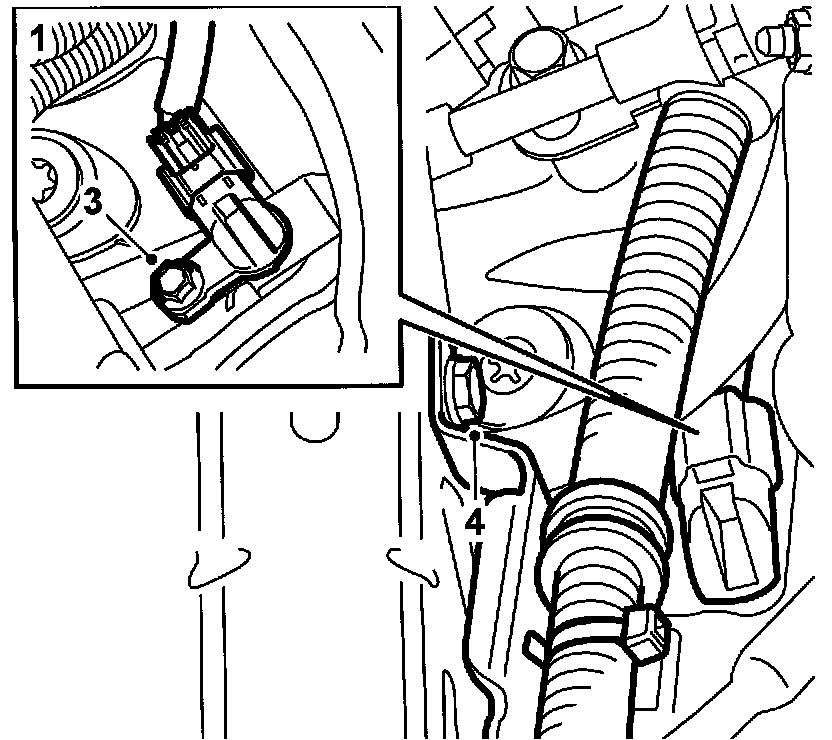

1. Plug in the sensor's connector.
2. Fit the sensor in place.
3. Tighten the sensor's retaining bolt.
Tightening torque: 6 Nm (4.5 ft. lbs.)

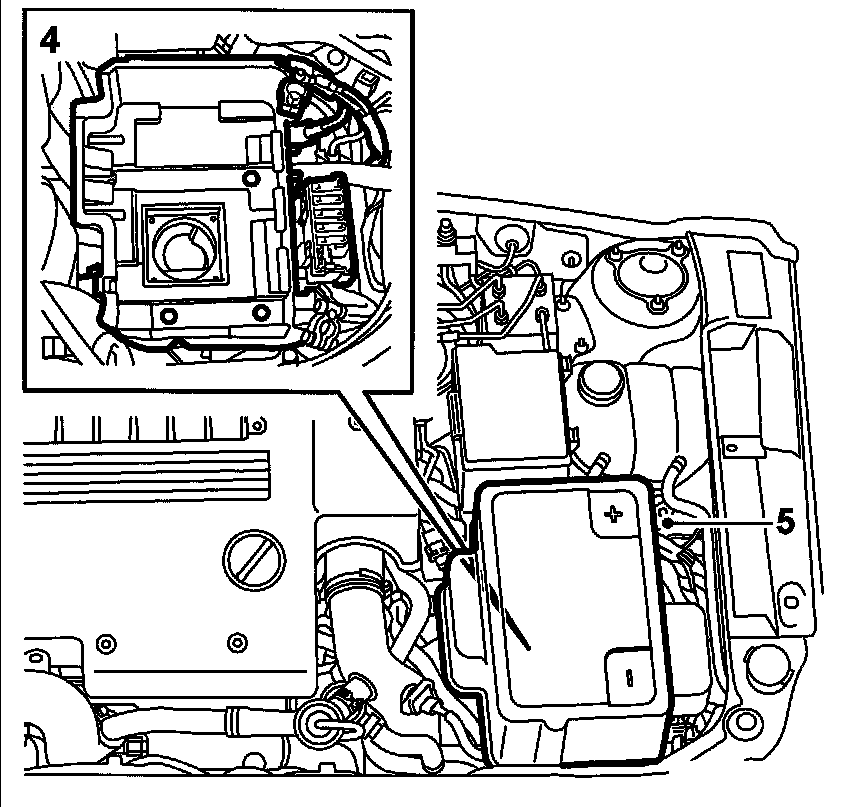

4. Fit the battery cable bracket.
5. Fit the battery tray, MAXI fuse board, battery and battery cover.
6. Set the right time on the clock.
