Output Shaft Speed Sensor
Output Shaft Speed SensorTo remove

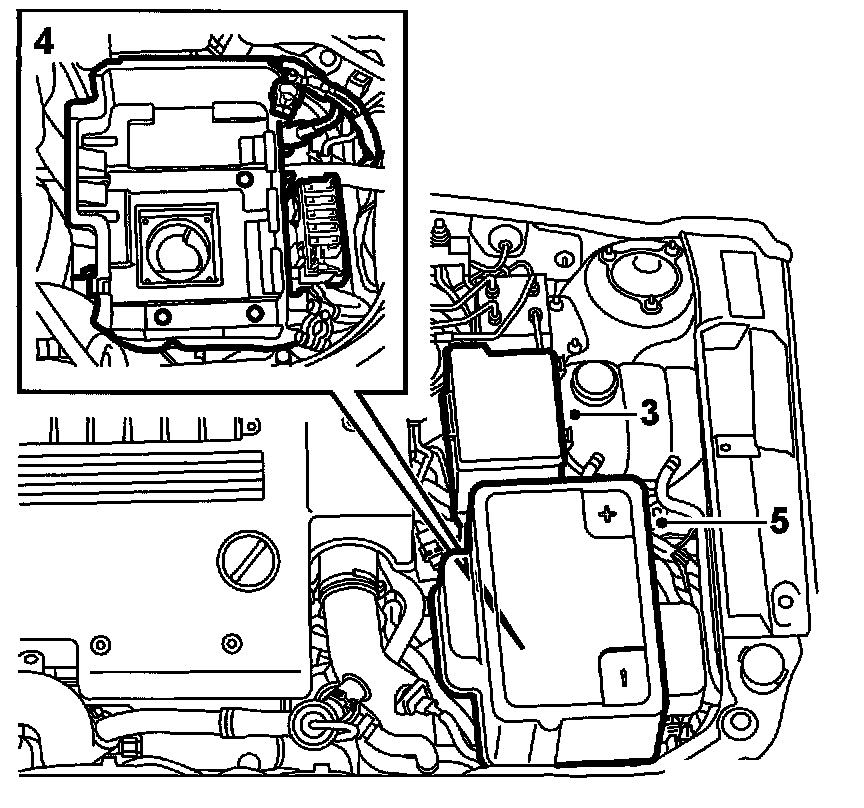

1. Remove the battery cover and the battery.
2. Remove the MAXI fuse board and place it to one side. Remove the battery tray.
3. Disconnect the electrical distribution unit and move it aside.

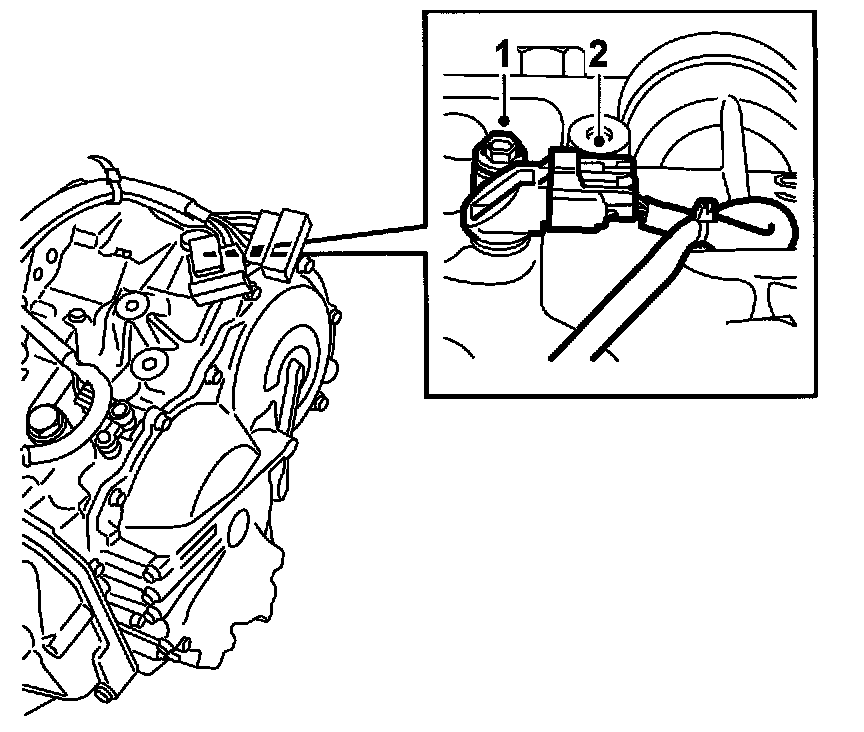

4. Clean the area round the sensor. Remove the retaining bolt and withdraw the sensor.
5. Unplug the sensor's connector.
Fitting
1. Plug in the sensor's connector.
2. Fit the sensor in place and tighten the retaining bolt.
Tightening torque: 6 Nm (4.5 ft. lbs.)

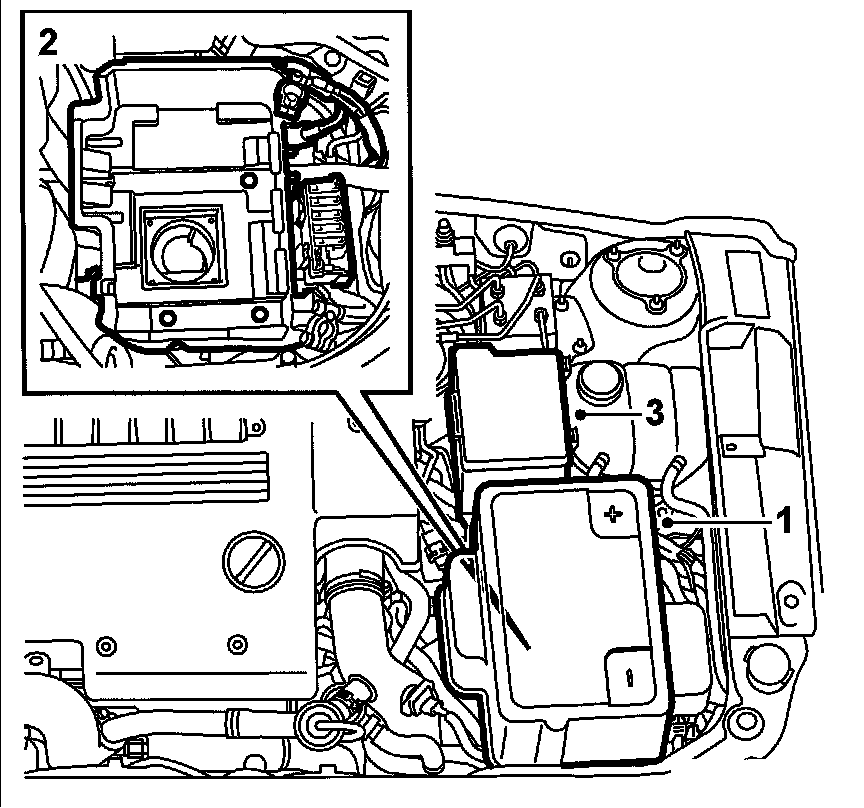

3. Fit the electrical distribution unit.
4. Fit the battery tray and MAXI fuse board.
5. Fit the battery and battery cover.
6. Set the right time on the clock.
