Symptom Related Diagnostic Procedures

Wind Noise From Front Side Windows

Fault symptoms

Wind noise from front side windows

Probable cause

The window is positioned too high. This means that when closed, the window presses out the window seal causing wind noise.

Procedure

1. Remove the door trim.

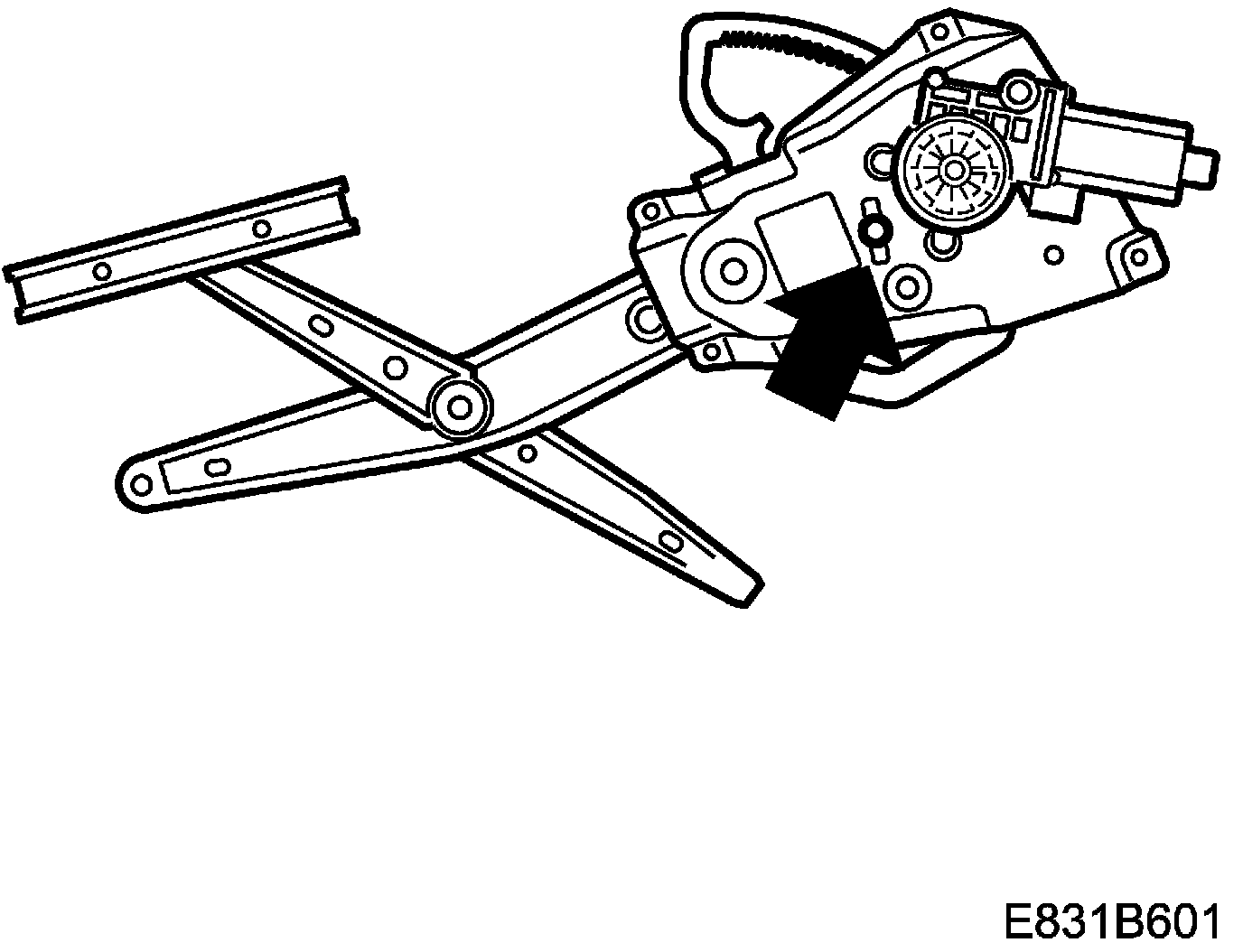

2. Adjust the set screw 1-2 mm upward.

3. Fit the door trim.
4. Test the window and test drive the car to check that the window is correctly adjusted.
