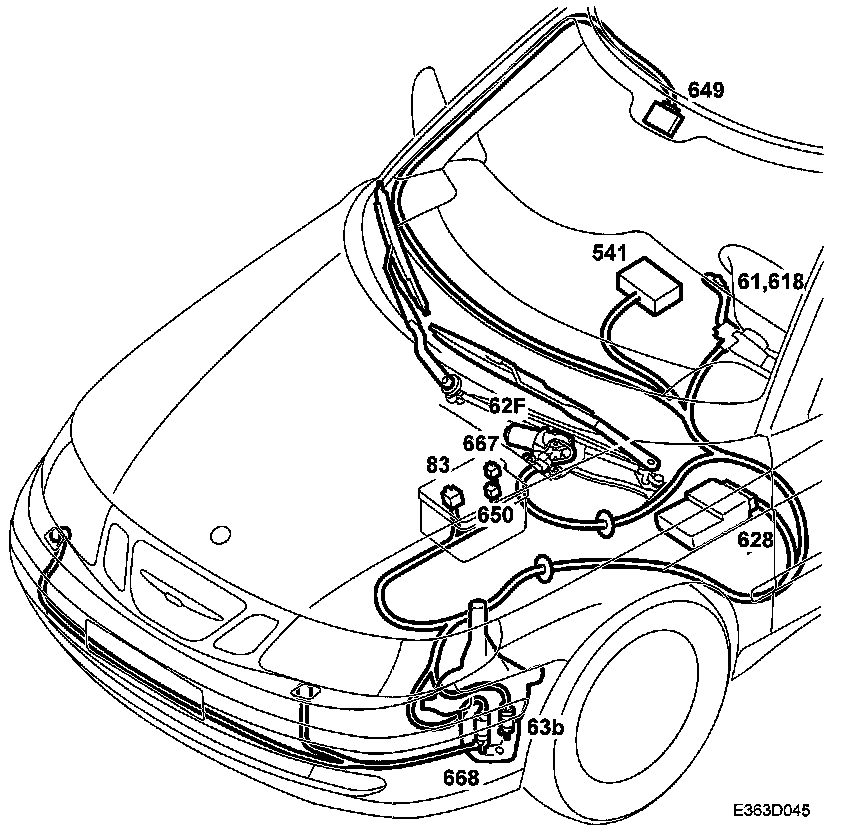

System Overview, Windscreen Wipers
System Overview, Windscreen Wipers ^
Windscreen
wiper switch (61, 618)
^
Windscreen
wiper motor (62F)
^
Washer fluid pump, windscreen (63b)
^
Washer fluid pump, headlamps (668)
^
Relay, intermittent wiper (83)
^
Relay, headlamp
washer fluid pump (667)
^
DICE (628)
^
SID (541)
^
Rain sensor (649)
^
Rain sensor relay (650)
