Main Components, Front Wipers

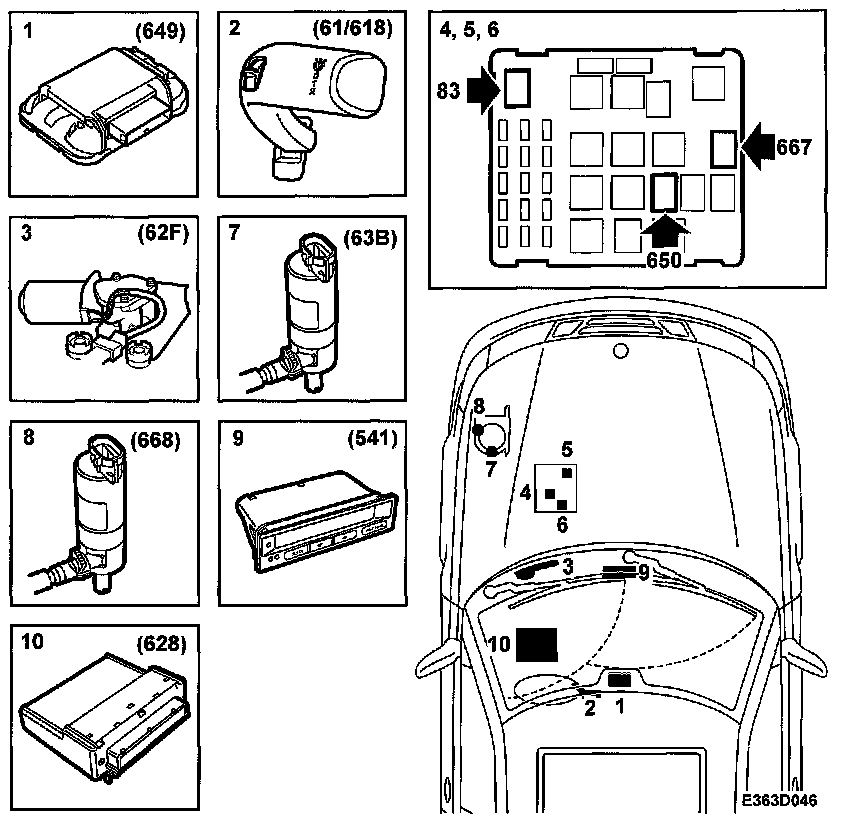

Main Components, Front Wipers 1.
Rain sensor (649)
2.
Windscreen
wiper switch (61, 618)
3.
Windscreen
wiper motor (62F)
4.
Rain sensor relay (650)
5.
Relay, intermittent wiper (83)
6.
Relay, headlamp
washer fluid pump (667)
7.
Washer fluid pump, windscreen (63b)
8.
Washer fluid pump, headlamps (668)
9.
SID (541)
10.
DICE (628)
