Washer Fluid Level Switch: Service and Repair

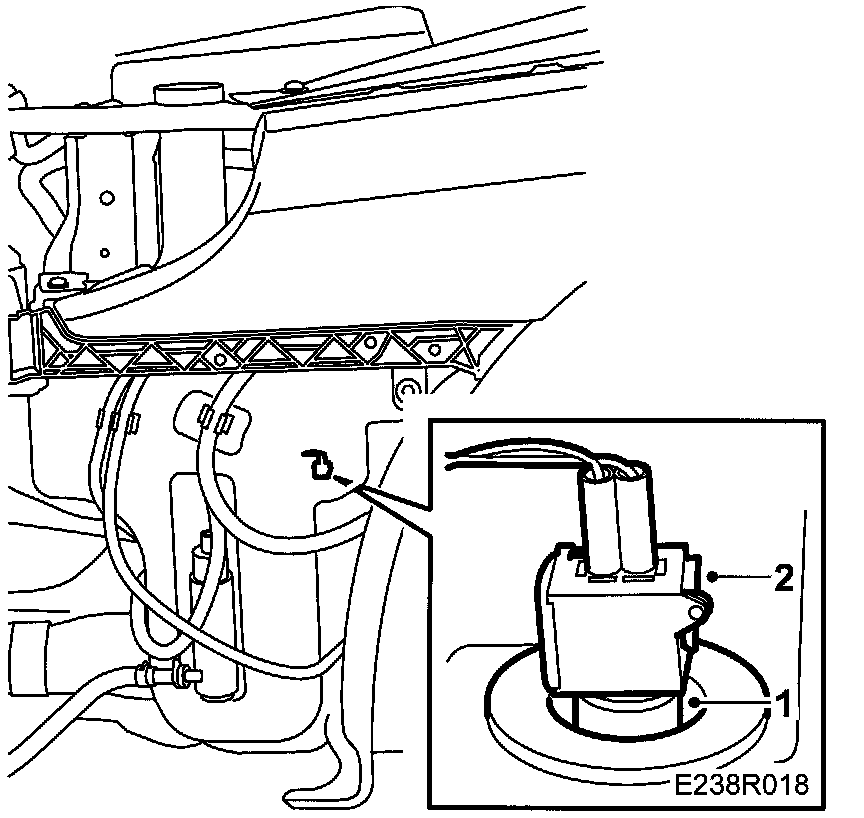

Washer Fluid Level SensorTo remove 1.
Empty the washer fluid reservoir.
2.
Raise the car.
3.
Unplug the level sensor connector.
4.
Withdraw the level sensor from the washer fluid reservoir.
To fit 1.
Press the level sensor into the washer fluid reservoir with the float hanging down.
2.
Plug in the level sensor connector.
3.
Lower the car.
4.
Fill with washer fluid.
