Windshield Washer Hose: Service and Repair

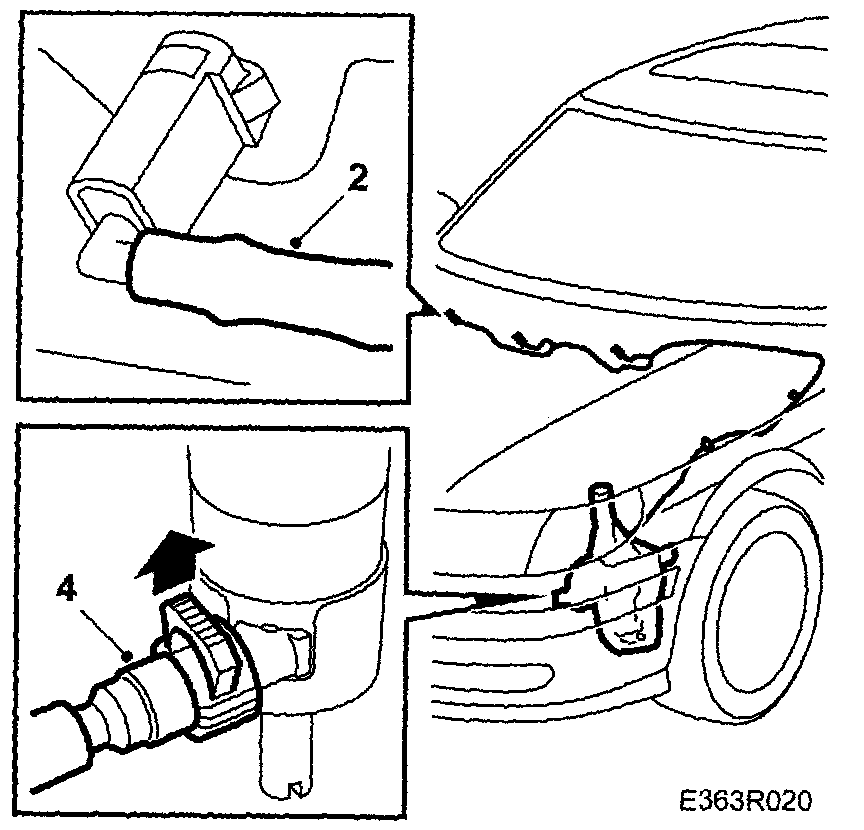

Windscreen Washer HosesTo remove 1.
Remove the bonnet insulation.
2.
Disconnect the hoses from the nozzles in the bonnet.
3.
Remove the front left-hand wing liner.
4.
Disconnect the hose from the pump and pull out the hose.

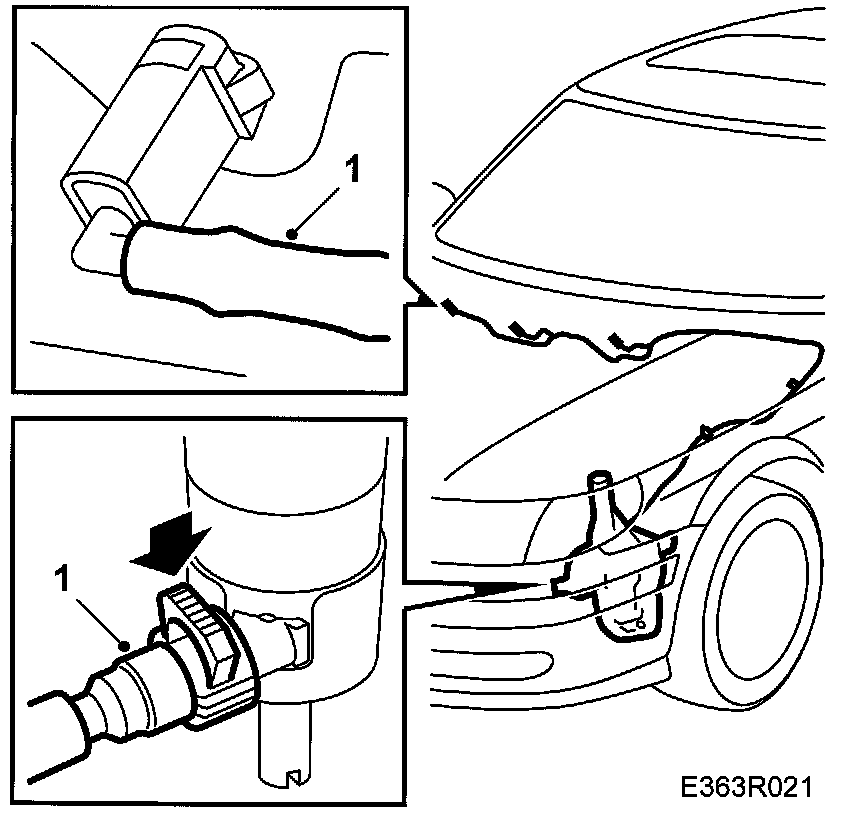

To fit 1.
Fit the new hose in the same way as the old one was fitted.
2.
Fit the wing liner.
3.
Fit the bonnet insulation.
