Wiper Switch: Service and Repair

Windscreen Wiper Switch

To remove
1. Put the steering wheel in its outermost position.

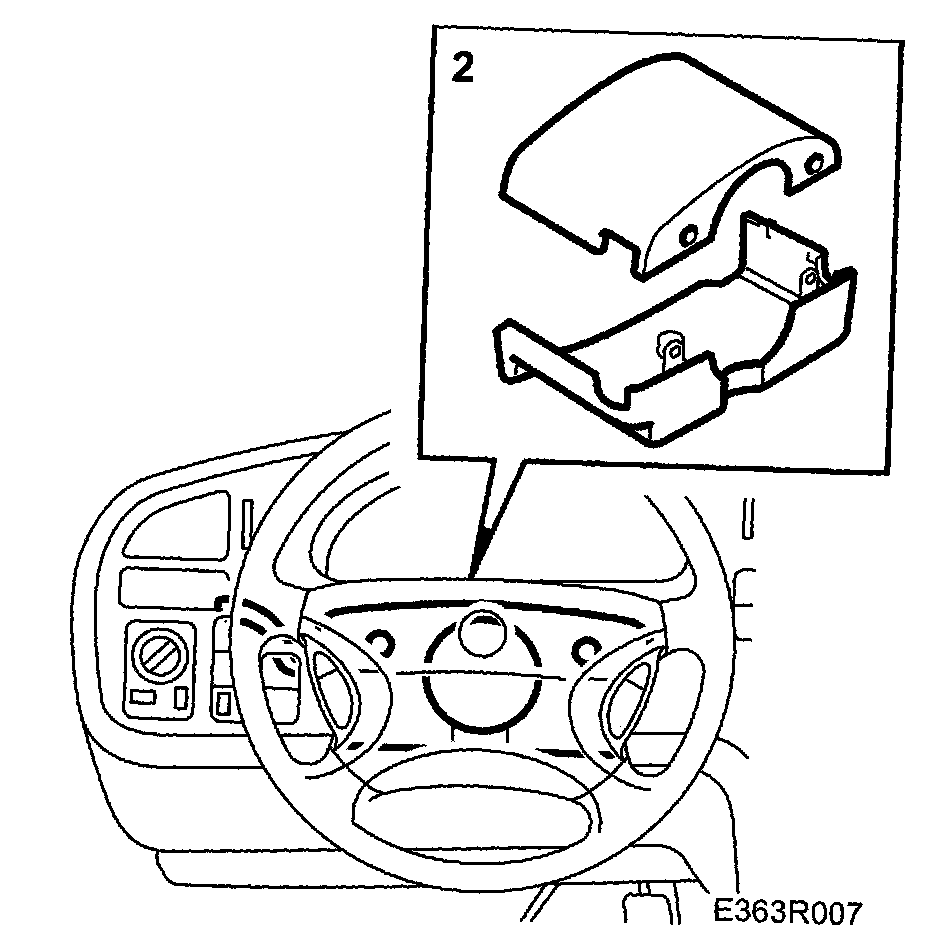

2. Remove the steering column bearing bracket cowls (3 screws).

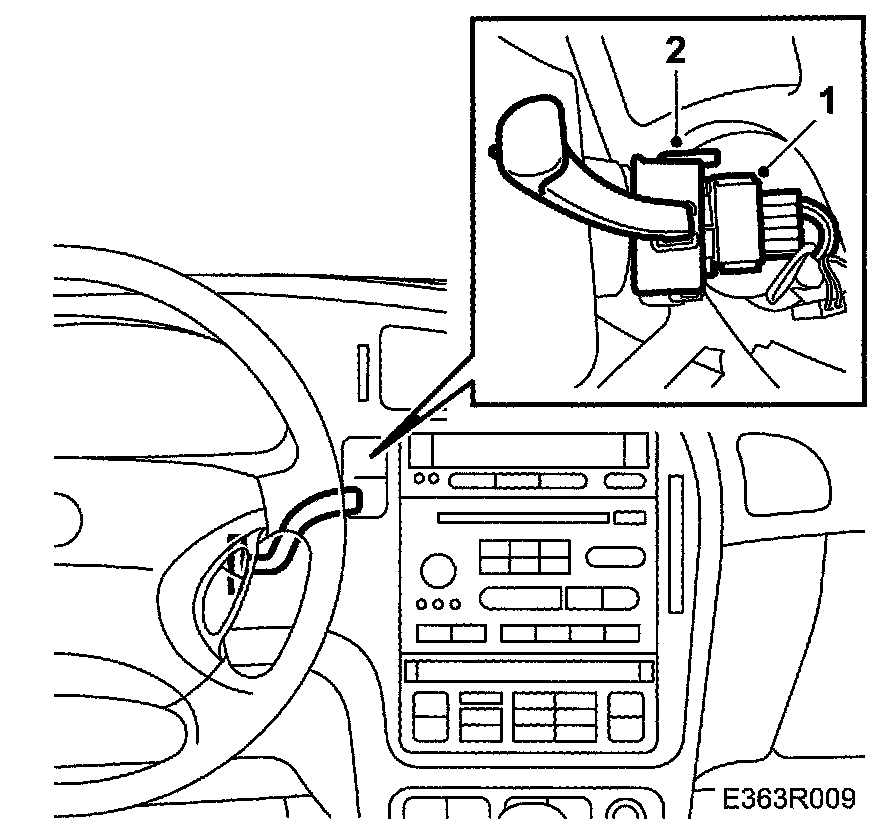

3. Pull out the switch, 2 clips (it is fitted into a groove).







4. Unplug the switch's electrical connection.

To fit







1. Plug in the switch's electrical connection.
2. Fit the switch.
3. Fit the steering column bearing bracket cowls.







4. Adjust the steering wheel to its original position.
