Underhood Fuse Block



Electrical Center Identification Views


Fuse Block - Underhood, Top View (5.3L)






Fuse Block - Underhood, Bottom View






Fuse Block - Underhood C1 (5.3L)

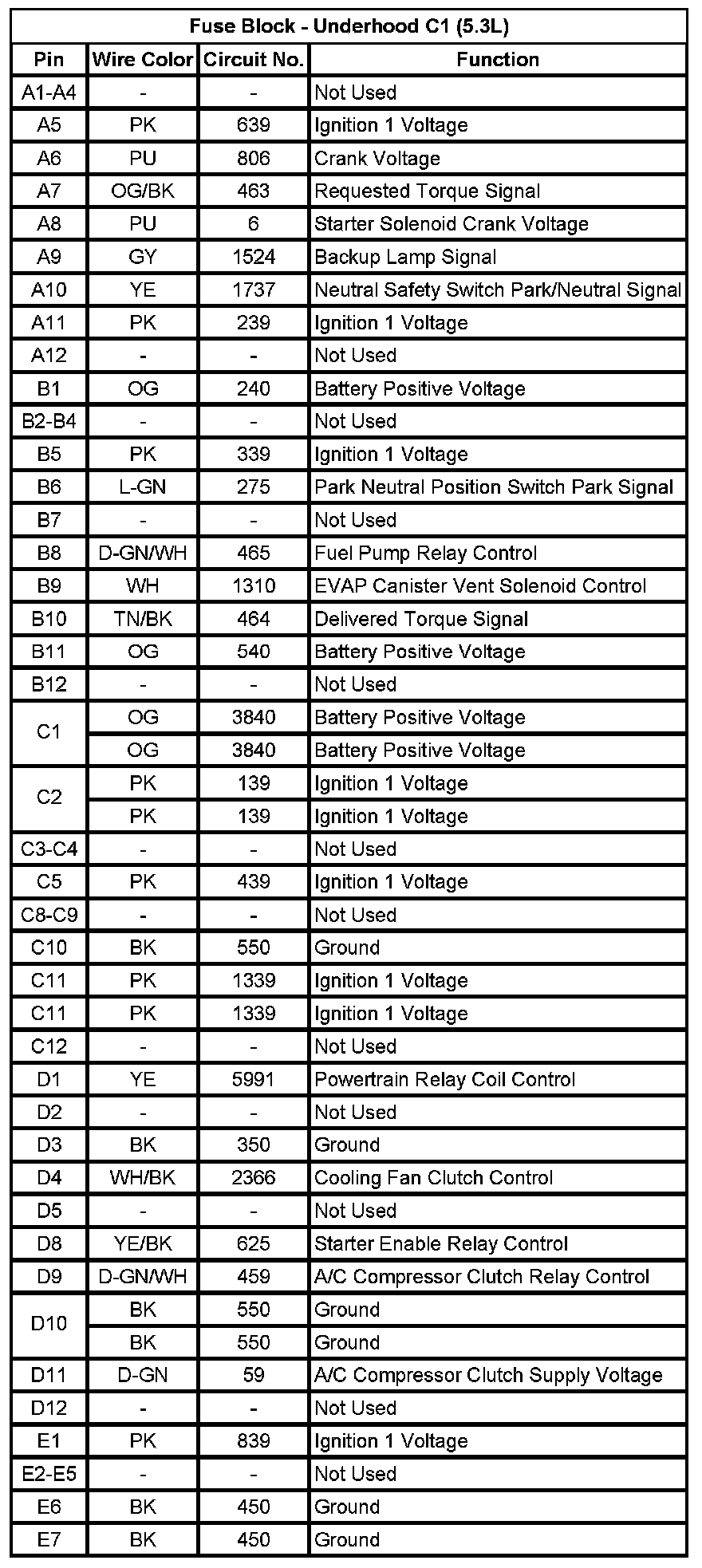

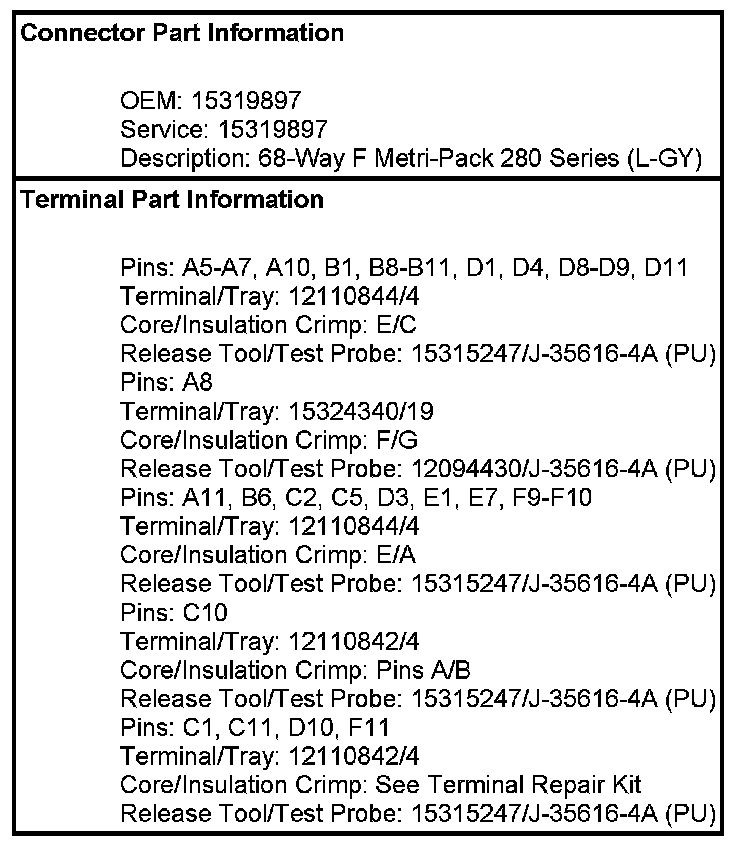

Fuse Block - Underhood C1 (5.3L) (Pin A1 To E7):

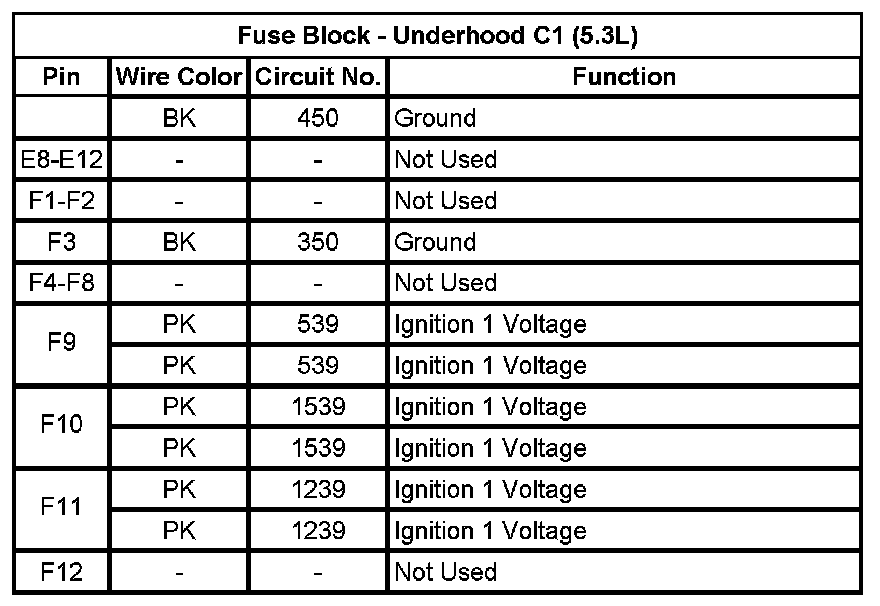

Fuse Block - Underhood C1 (5.3L) (Pin E8 To F12):






Fuse Block - Underhood C2









Fuse Block - Underhood C2 (Pin A1 To E3):






Fuse Block - Underhood C3














Fuse Block - Underhood C4














Fuse Block - Underhood C6 (TT6)














Fuse Block - Underhood C7














Fuse Block - Underhood C8














Fuse Block - Underhood C9
