Accessories and Optional Equipment



Component Connector End Views

Audio Amplifier X1 (UQA)





Audio Amplifier X2 (UQA)





Cellular Microphone

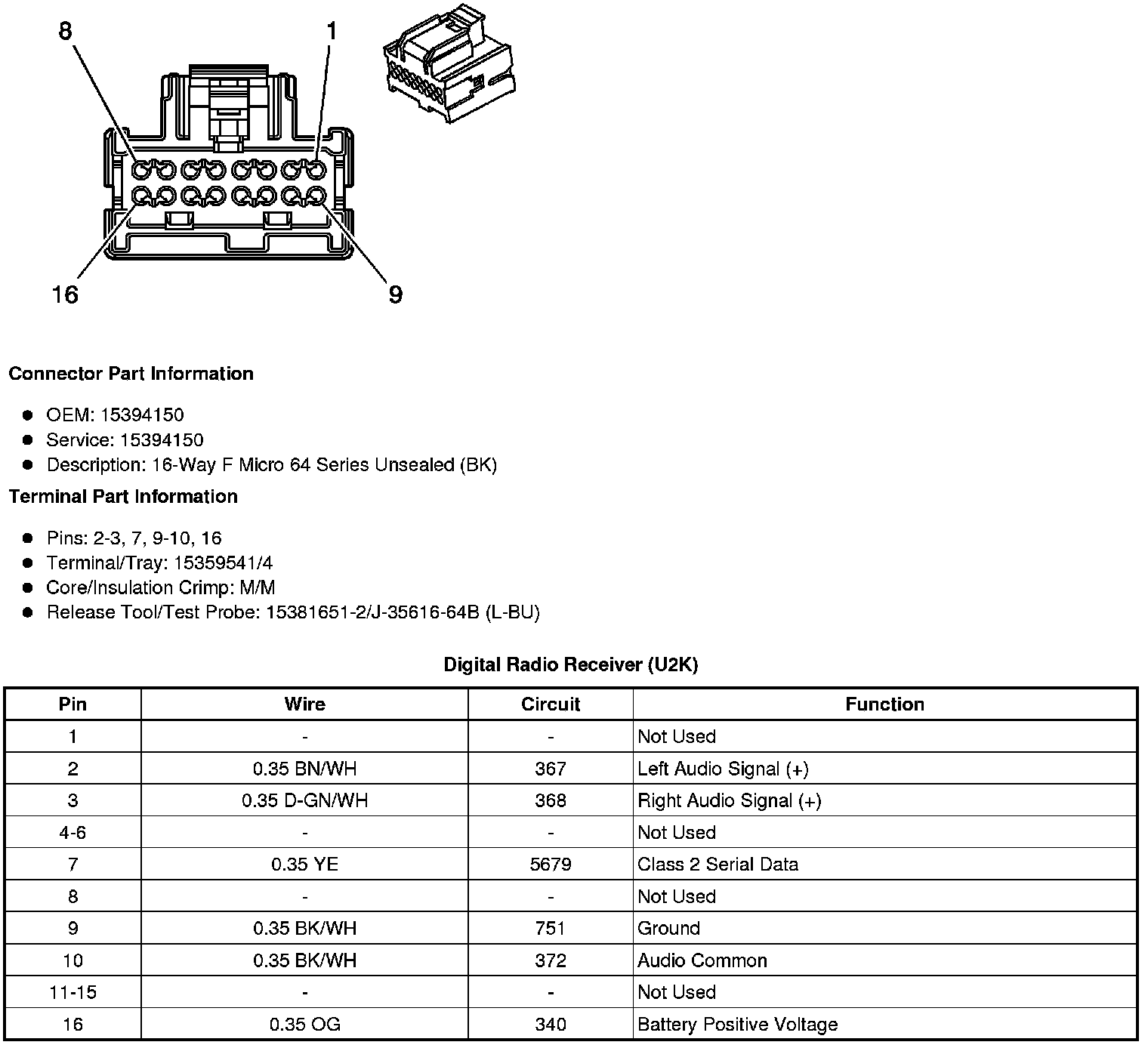

Digital Radio Receiver (U2K)





Digital Video Disc (DVD) Player (U42)

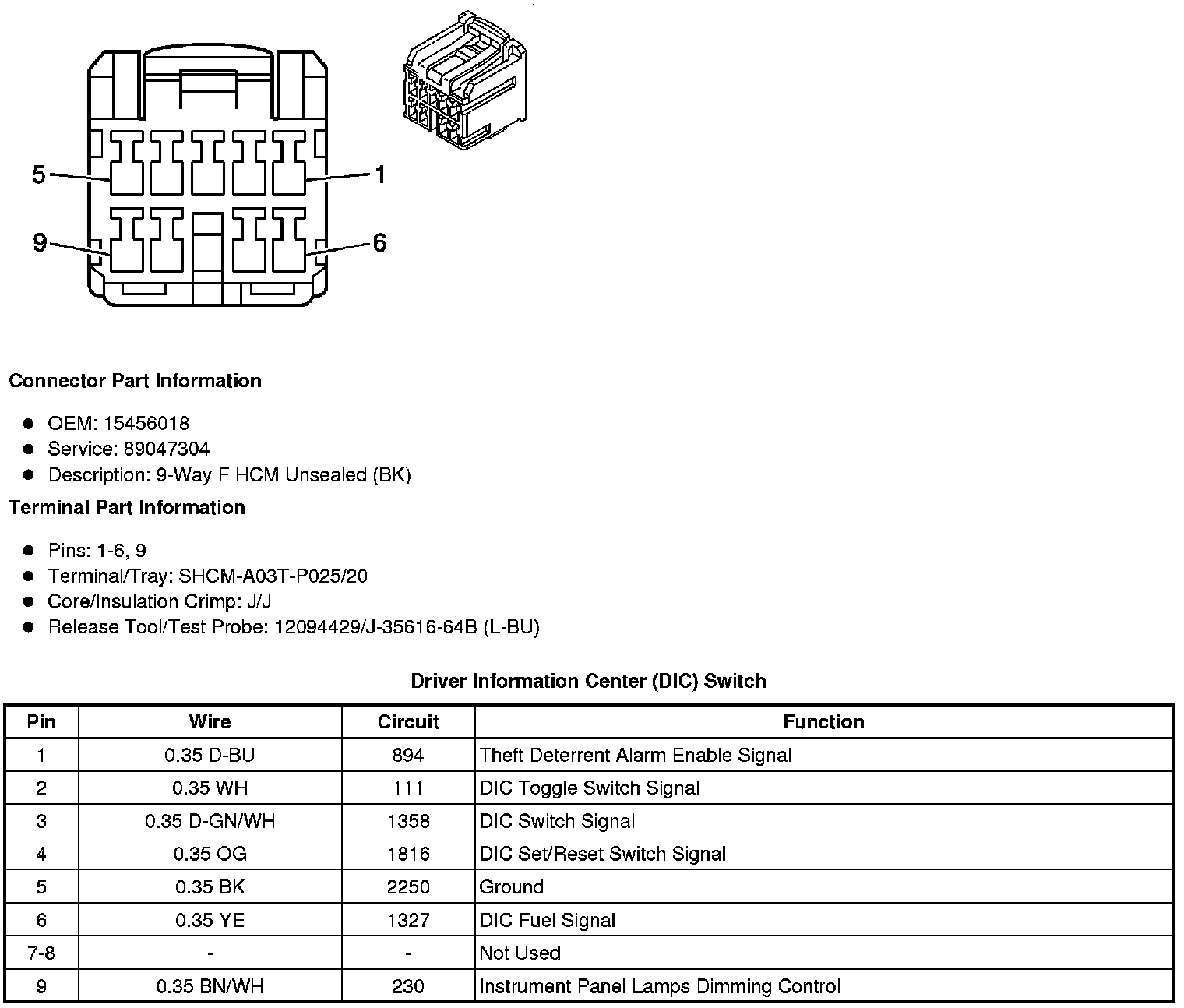

Driver Information Center (DIC) Switch

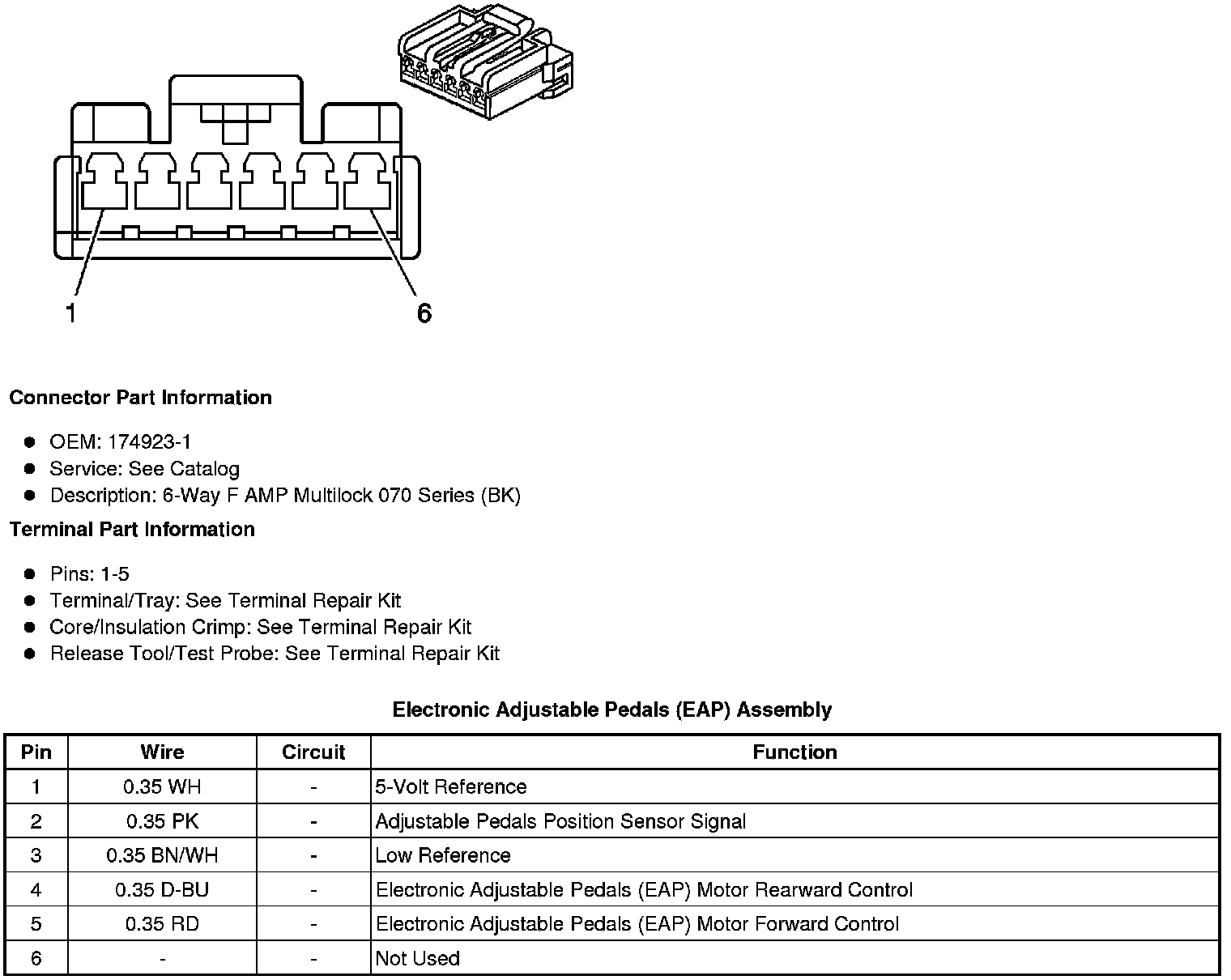

Electronic Adjustable Pedals (EAP) Assembly

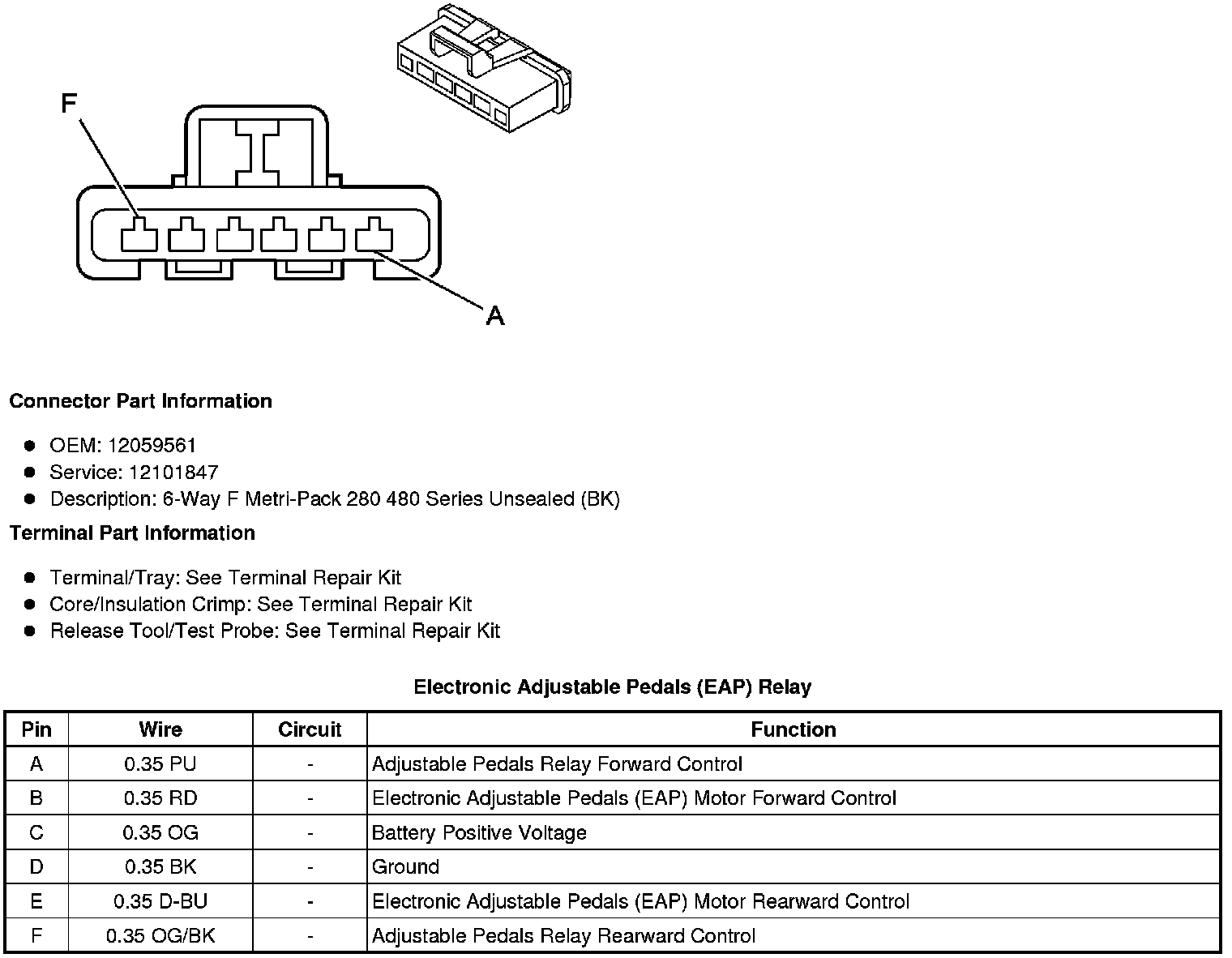

Electronic Adjustable Pedals (EAP) Relay

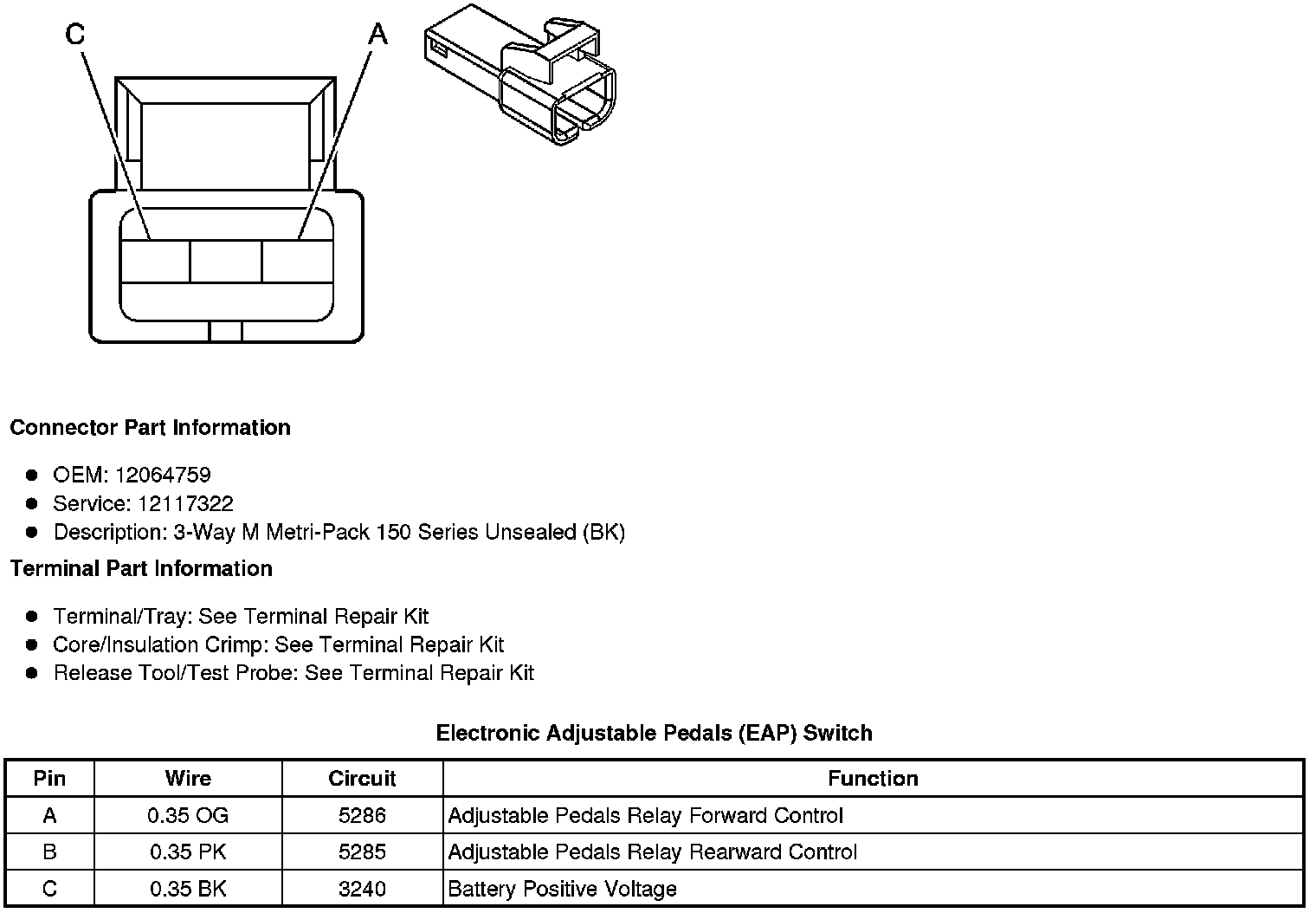

Electronic Adjustable Pedals (EAP) Switch

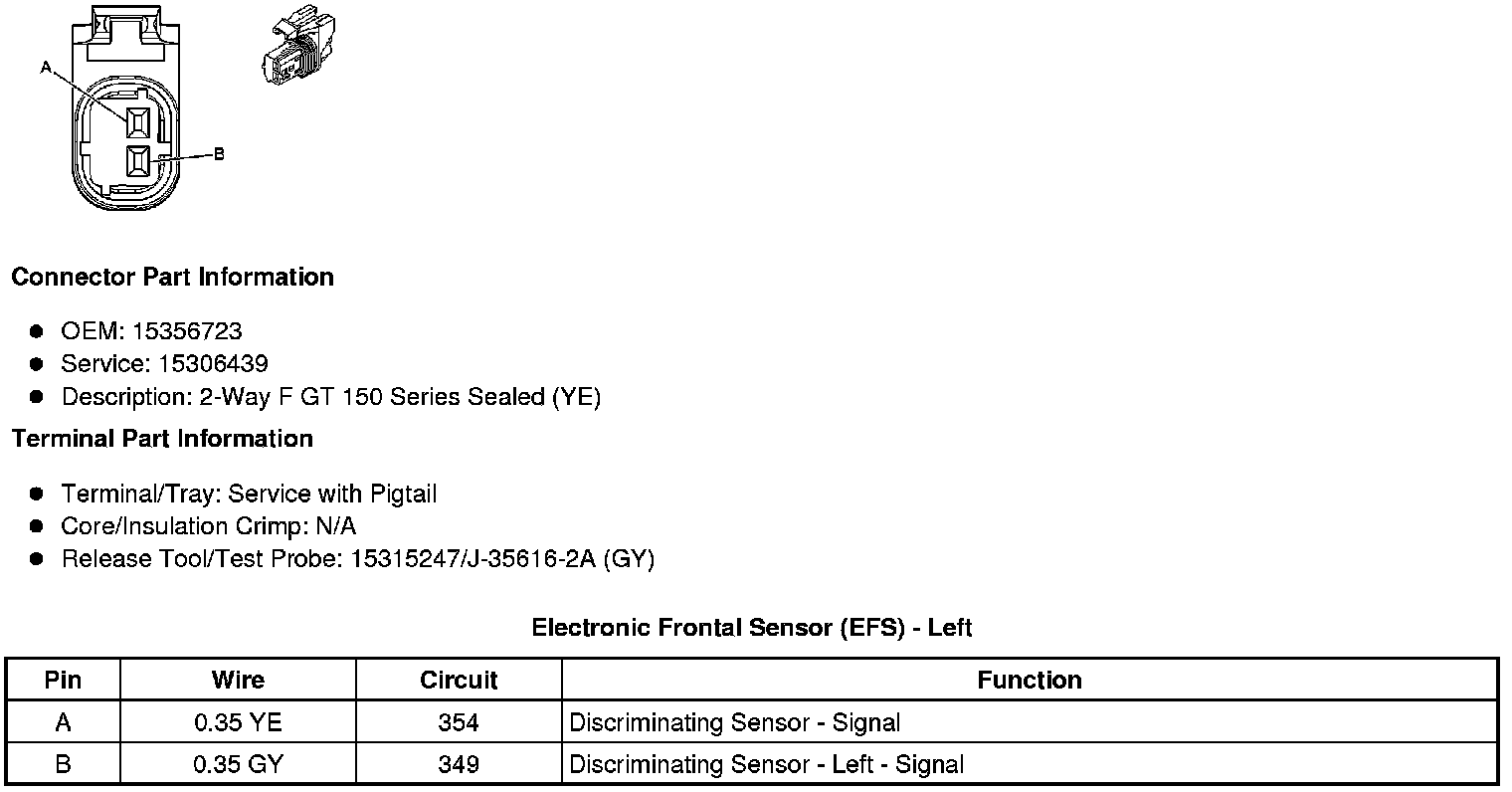

Electronic Frontal Sensor (EFS) - Left

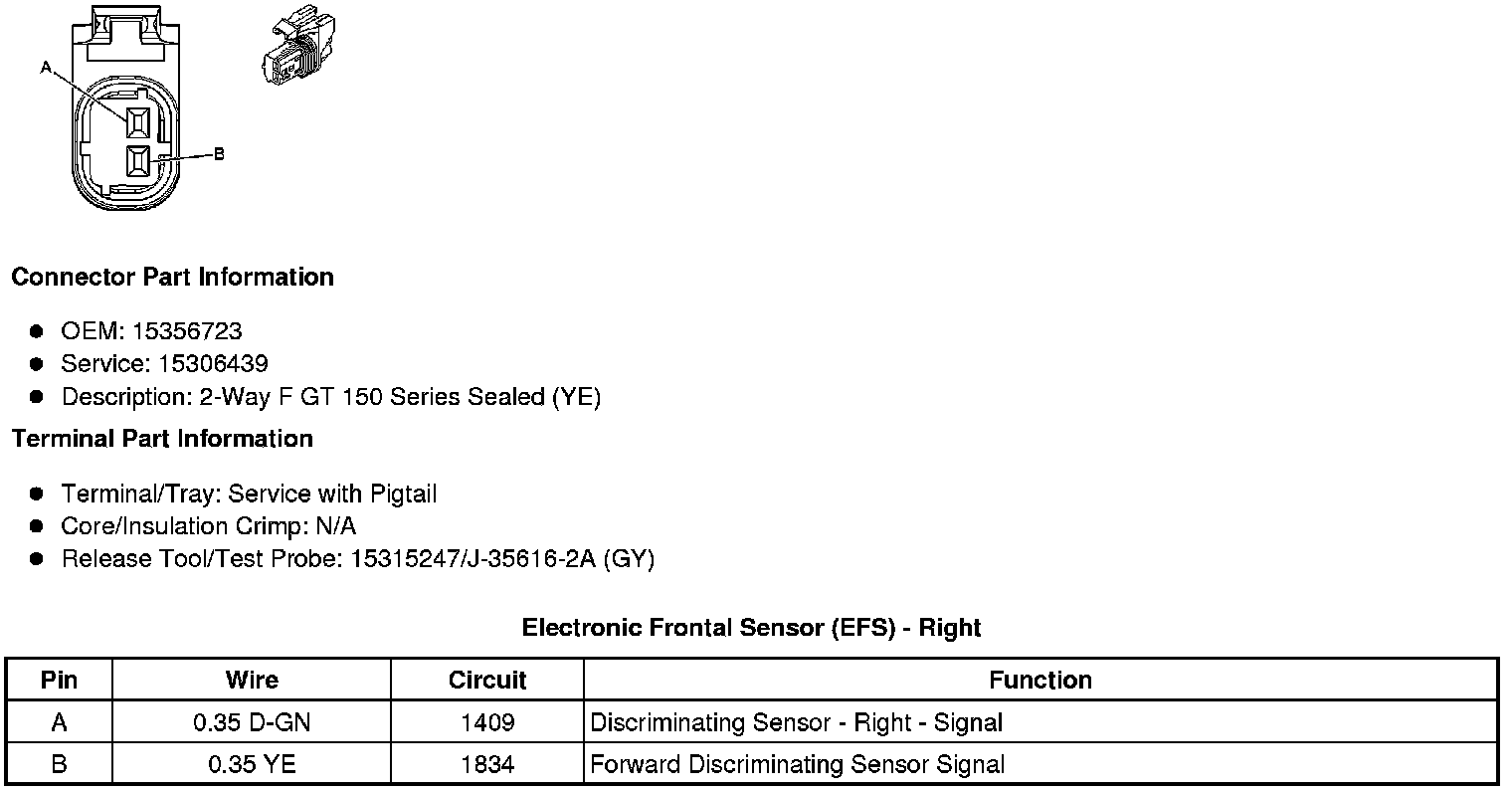

Electronic Frontal Sensor (EFS) - Right





Garage Door Opener





Radio X1 (-UQA)





Radio X1 (UQA)





Radio X2

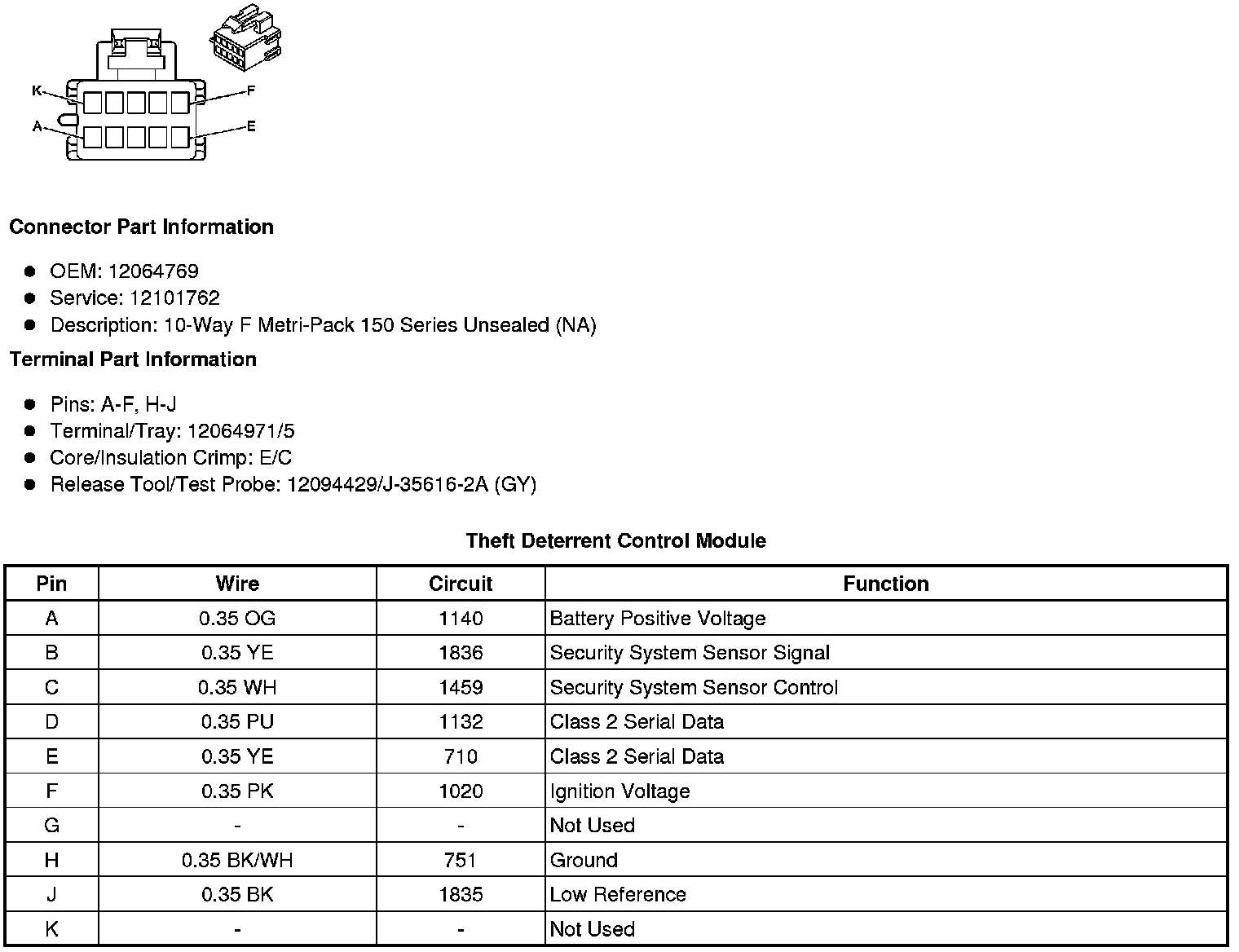

Theft Deterrent Control Module

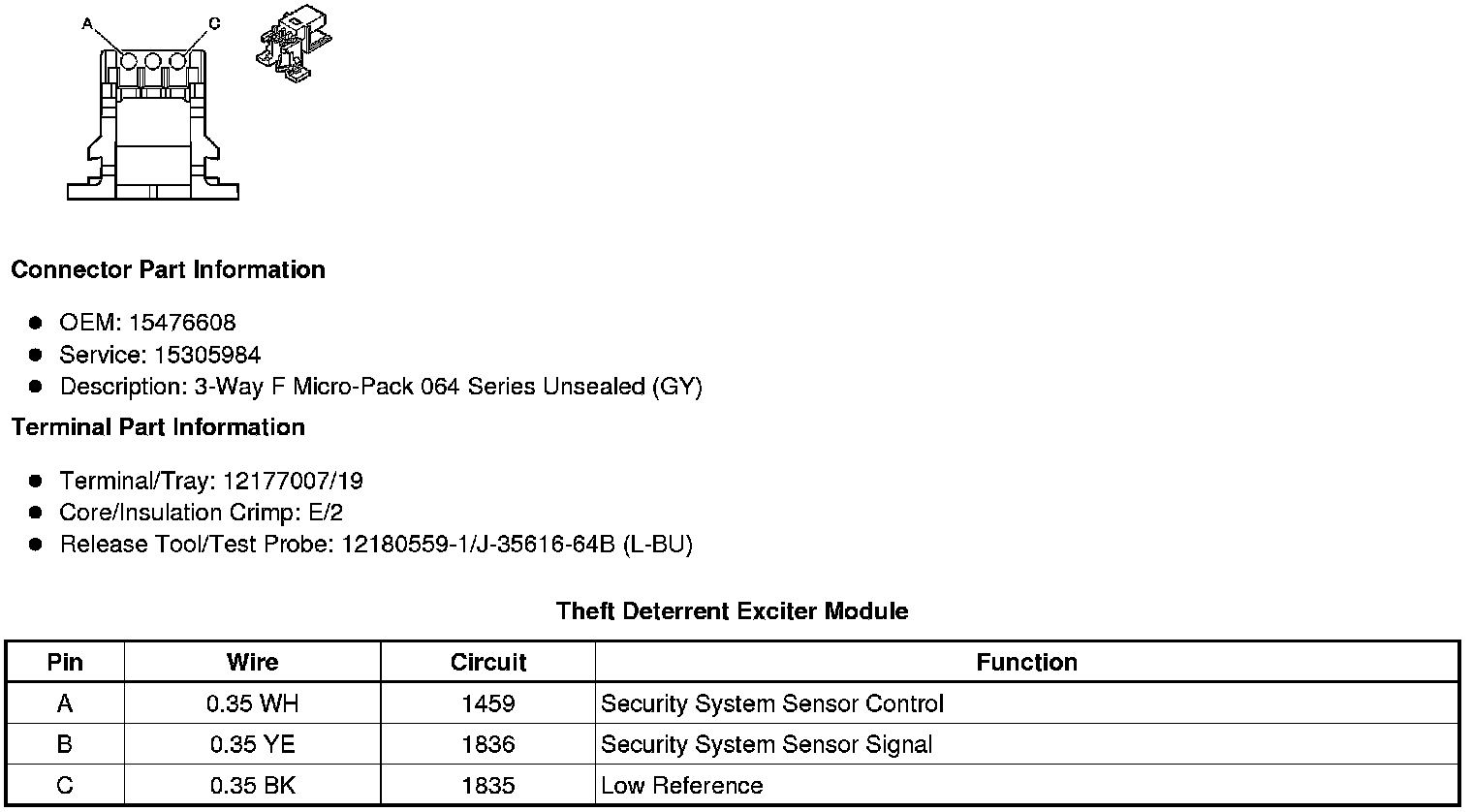

Theft Deterrent Exciter Module





Vehicle Communication Interface Module (VCIM) X1





Vehicle Communication Interface Module (VCIM) X2
