Part 2
Component Connector End Views

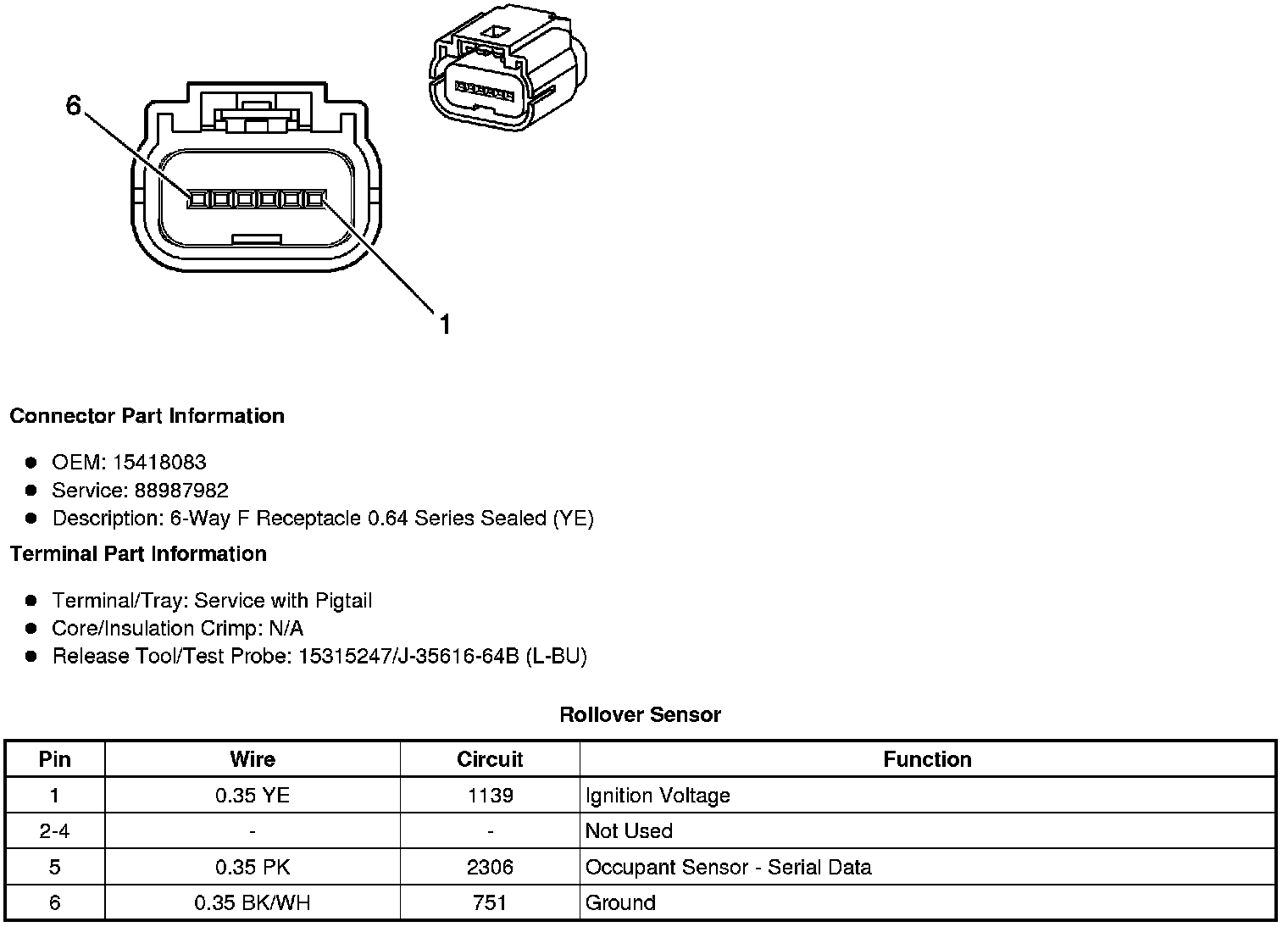

Rollover Sensor
Secondary Air Injection (AIR) Pump (K18)
Secondary Air Injection (AIR) Pump Relay (K18)
Secondary Air Injection (AIR)
Solenoid
(K18)
Throttle Body
(5.3L)
Throttle Body
(4.2L)
