Global Positioning System Display Unit: Service and Repair
OnStar Control PanelRemoval 1.

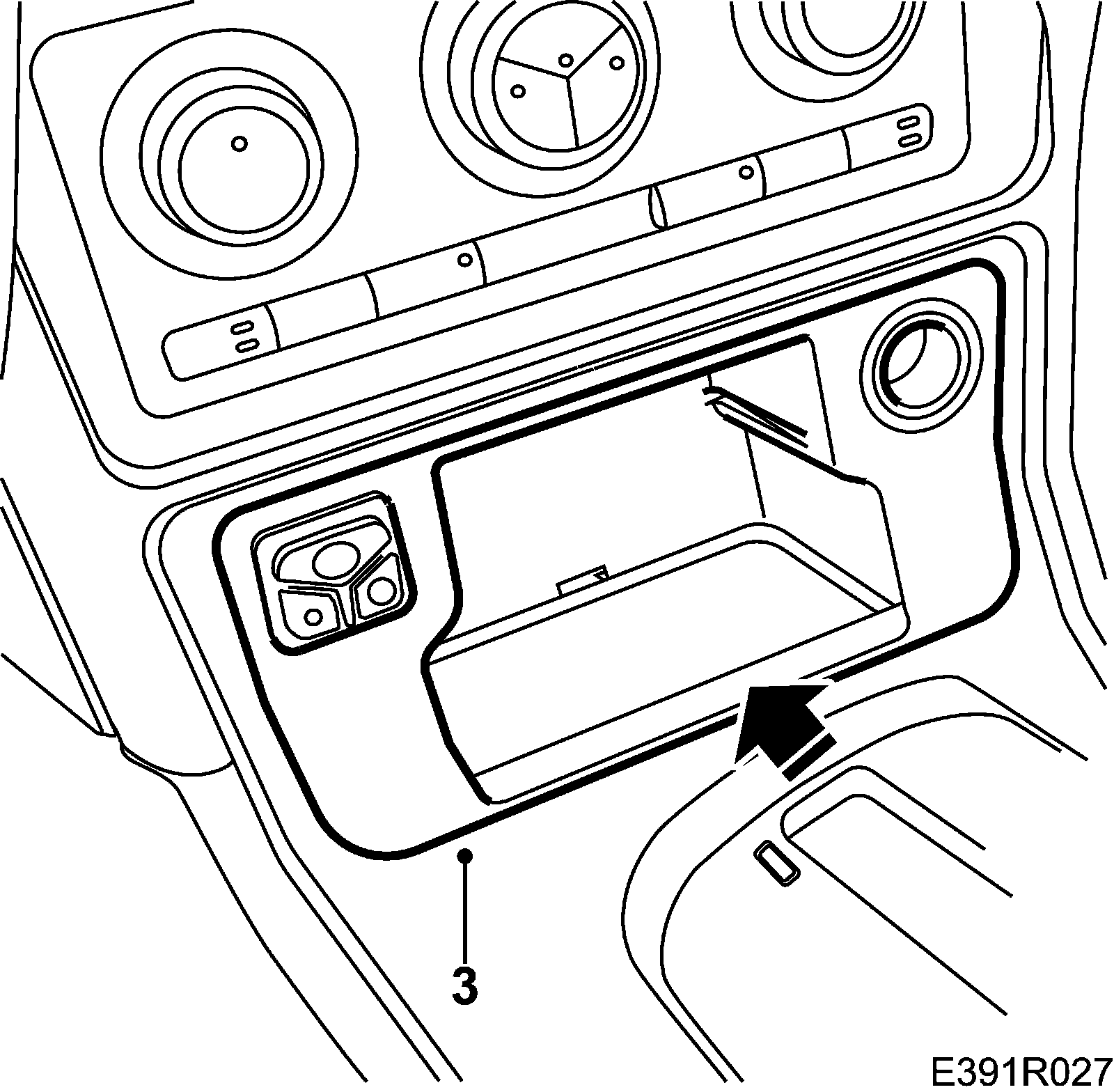

Remove the storage compartment from the instrument panel using 82 93 474 Removal tool.
2.

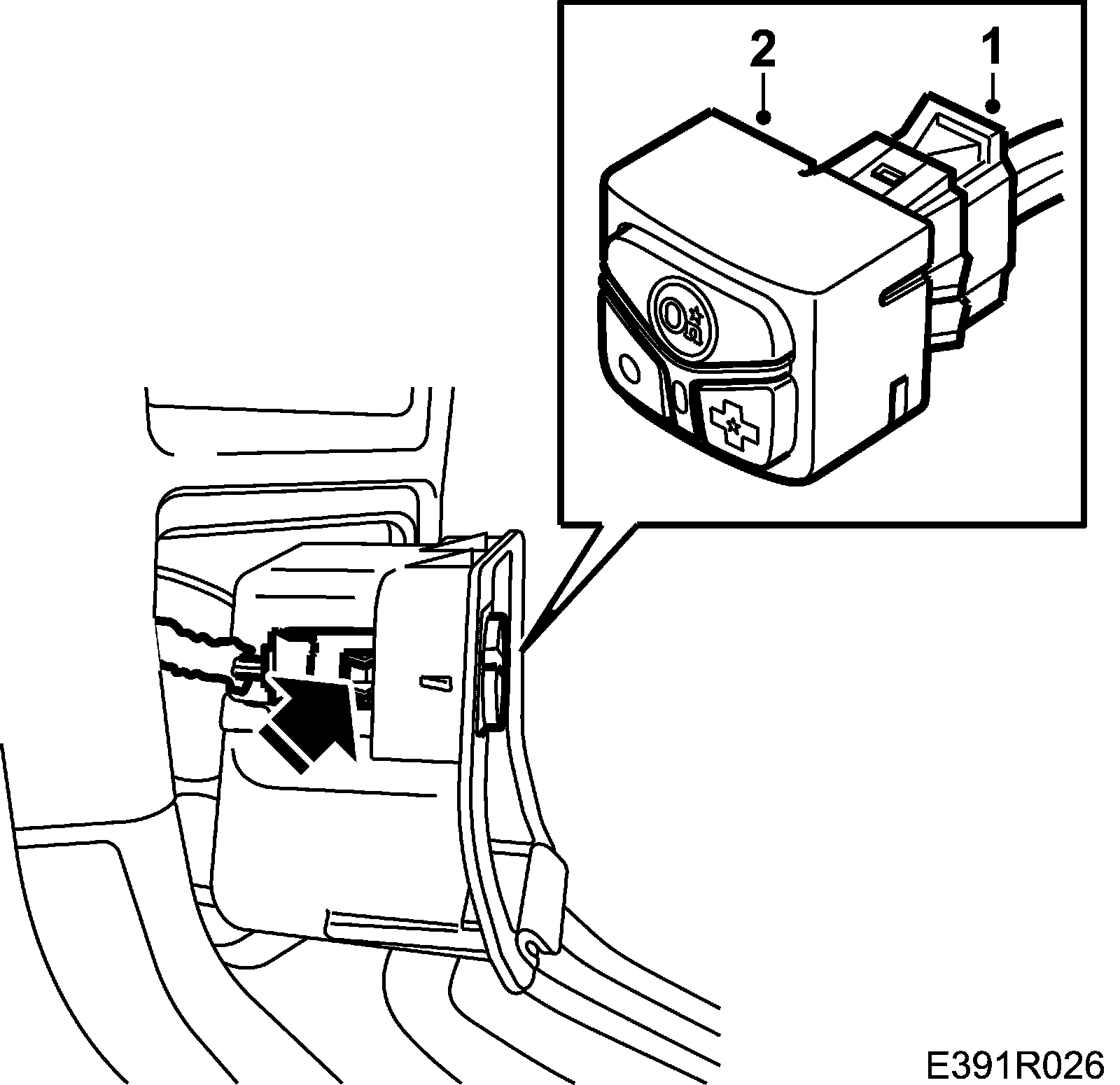

Release the catches on the back of the control button unit and push it out.
3.
Unplug the connector.
Refitting 1.

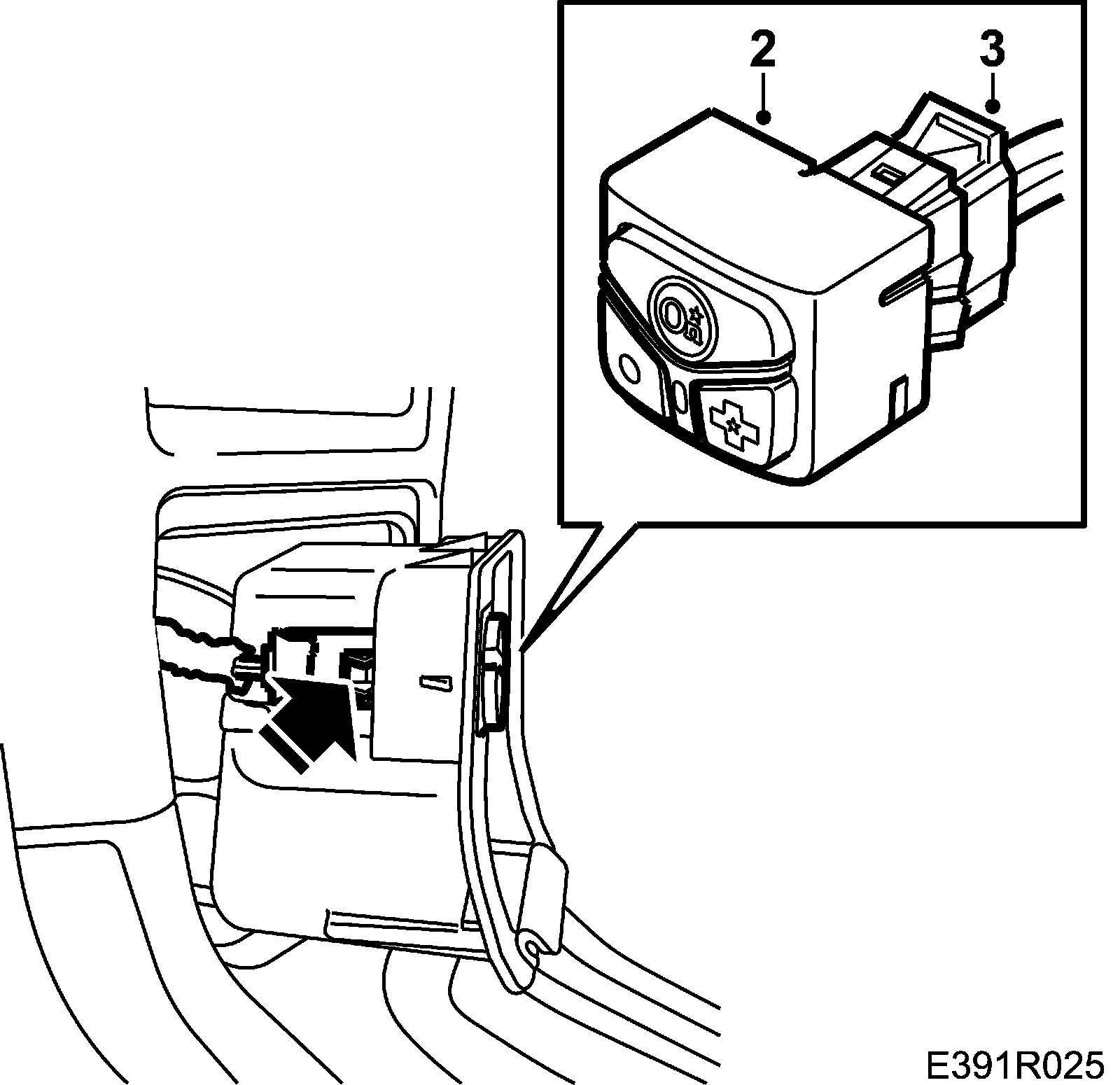

Plug in the connector.
2.
Push in the button in the storage compartment.
3.

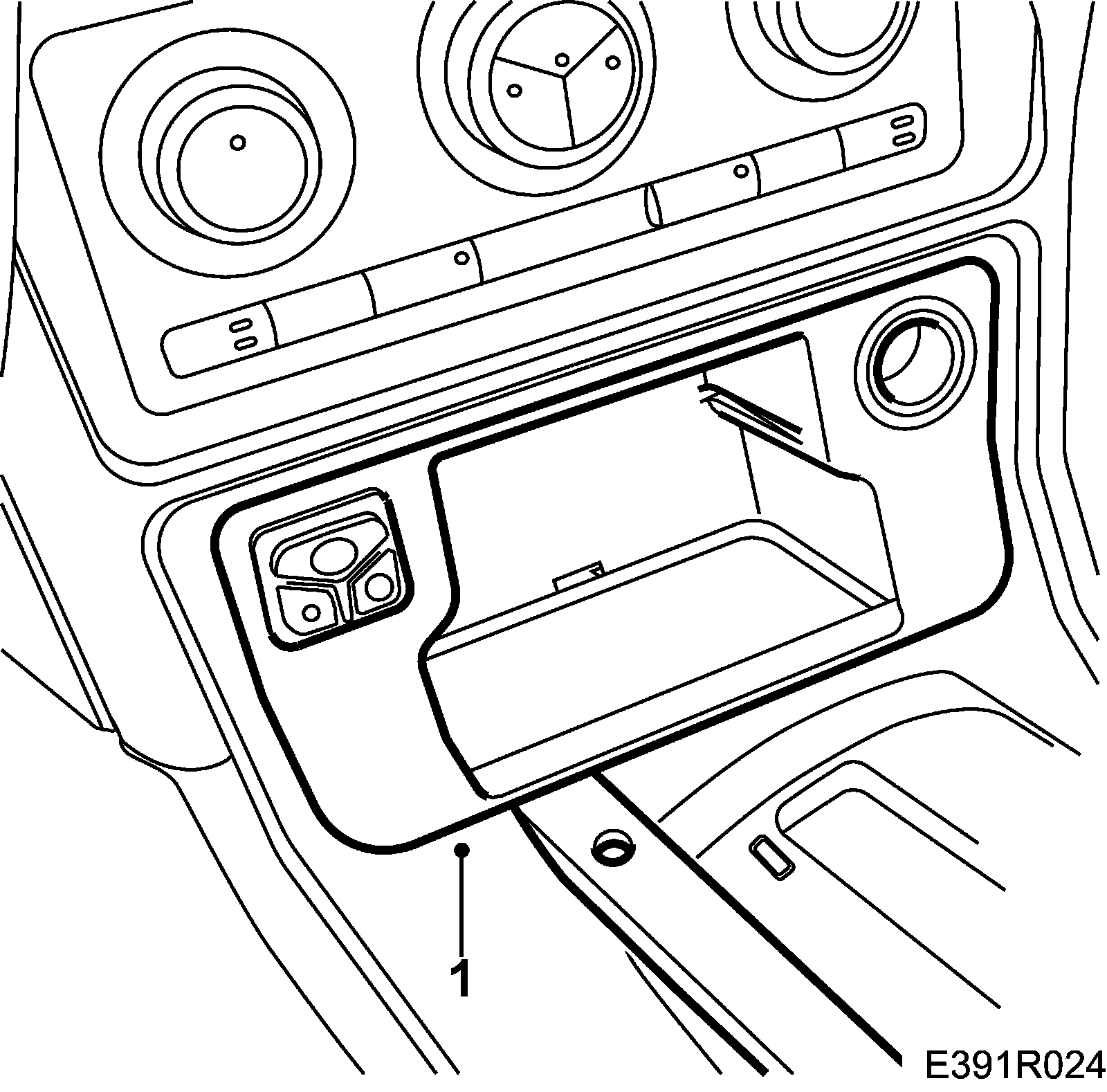

Fit the storage compartment.
