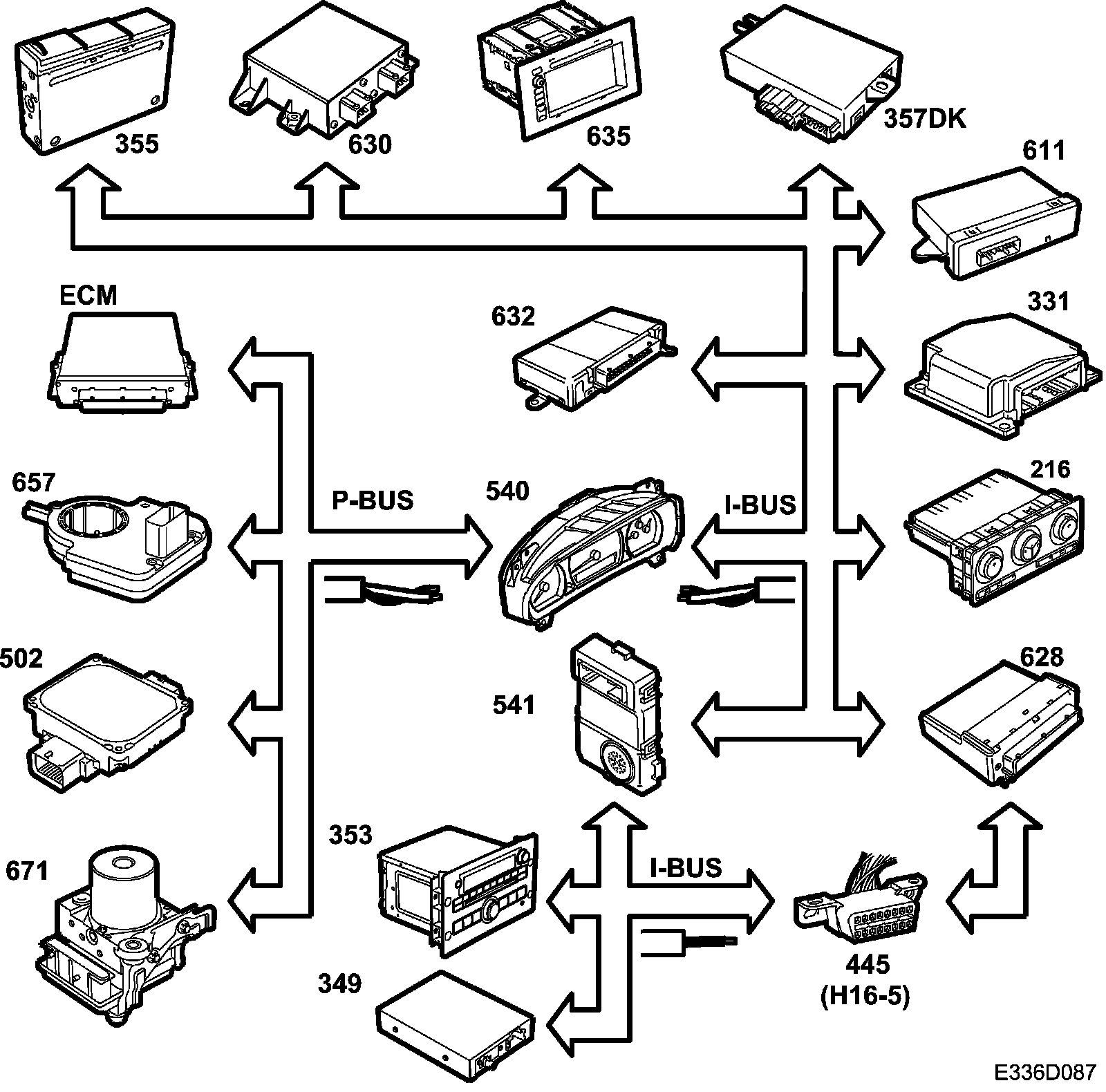

Control Module Outputs, Bus
Control Module Outputs, Bus -
Vehicle speed
-
Odometer reading is used by the SID control module (541)
-
Fuel level is used by the SID control module (541), ECM
-
The acoustic signal is used by the SID control module (541)
-
Diagnostic communication (445)
-
Identification number used by TWICE (632)
-
The light sensor value is used by the SID control module (541)
