5D

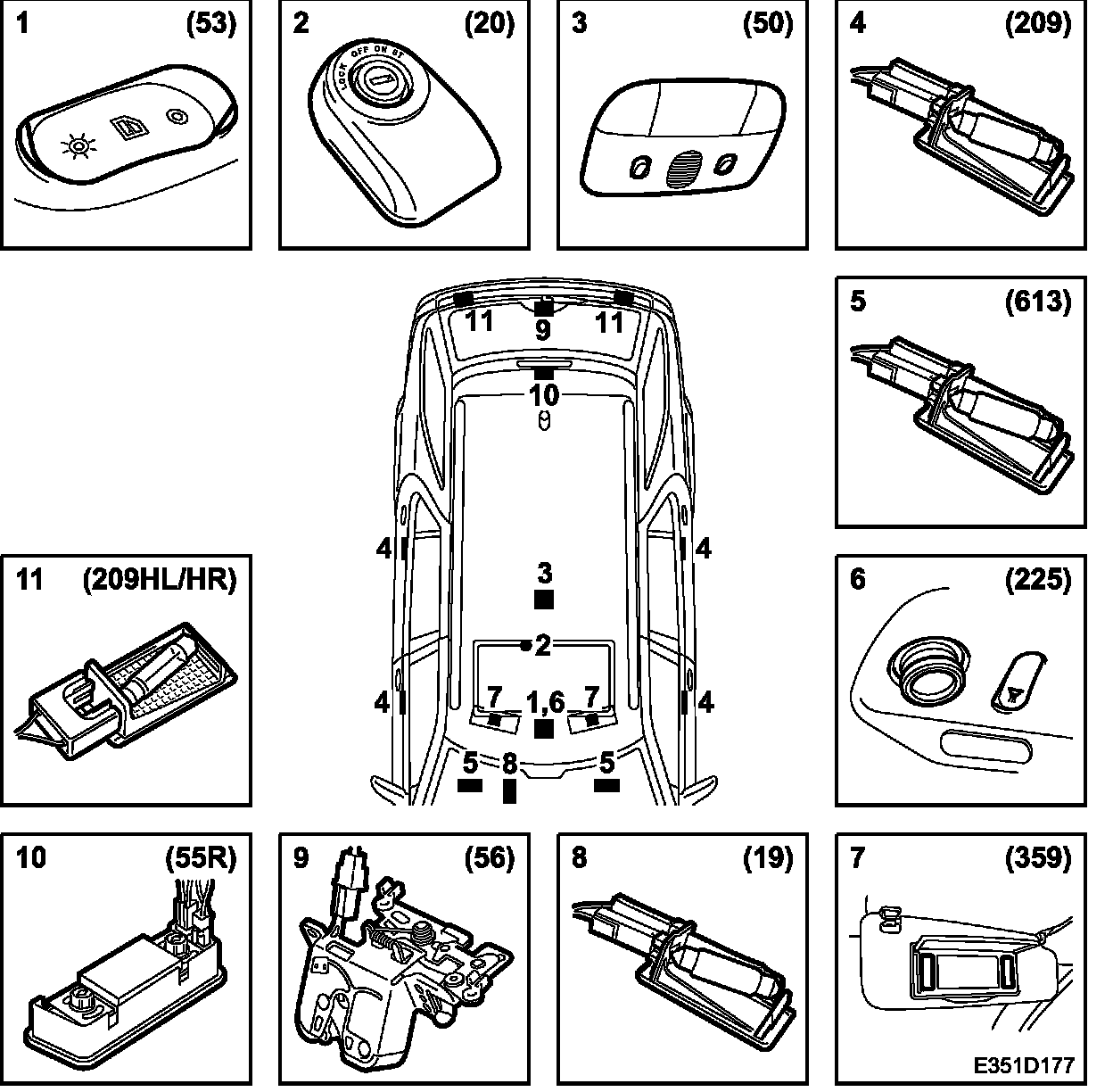

Main Components, Interior Lighting 5D 1.
Switch for interior lighting (53)
2.
Ignition switch (20)
3.
Centre roof lamp (50)
4.
Courtesy lights (209)
5.
Floor lighting, front (613)
6.
Reading lamp (225)
7.
Vanity mirror lighting (359)
8.
Glove box light (19)
9.
Luggage compartment lighting switch (56)
10.
Luggage compartment lighting (55)
