Main Beam Lamp, Halogen, Replacement

Main beam lamp, halogen, replacement

NOTE: Fit bulbs with correct rating only, the wiring can otherwise be damaged.

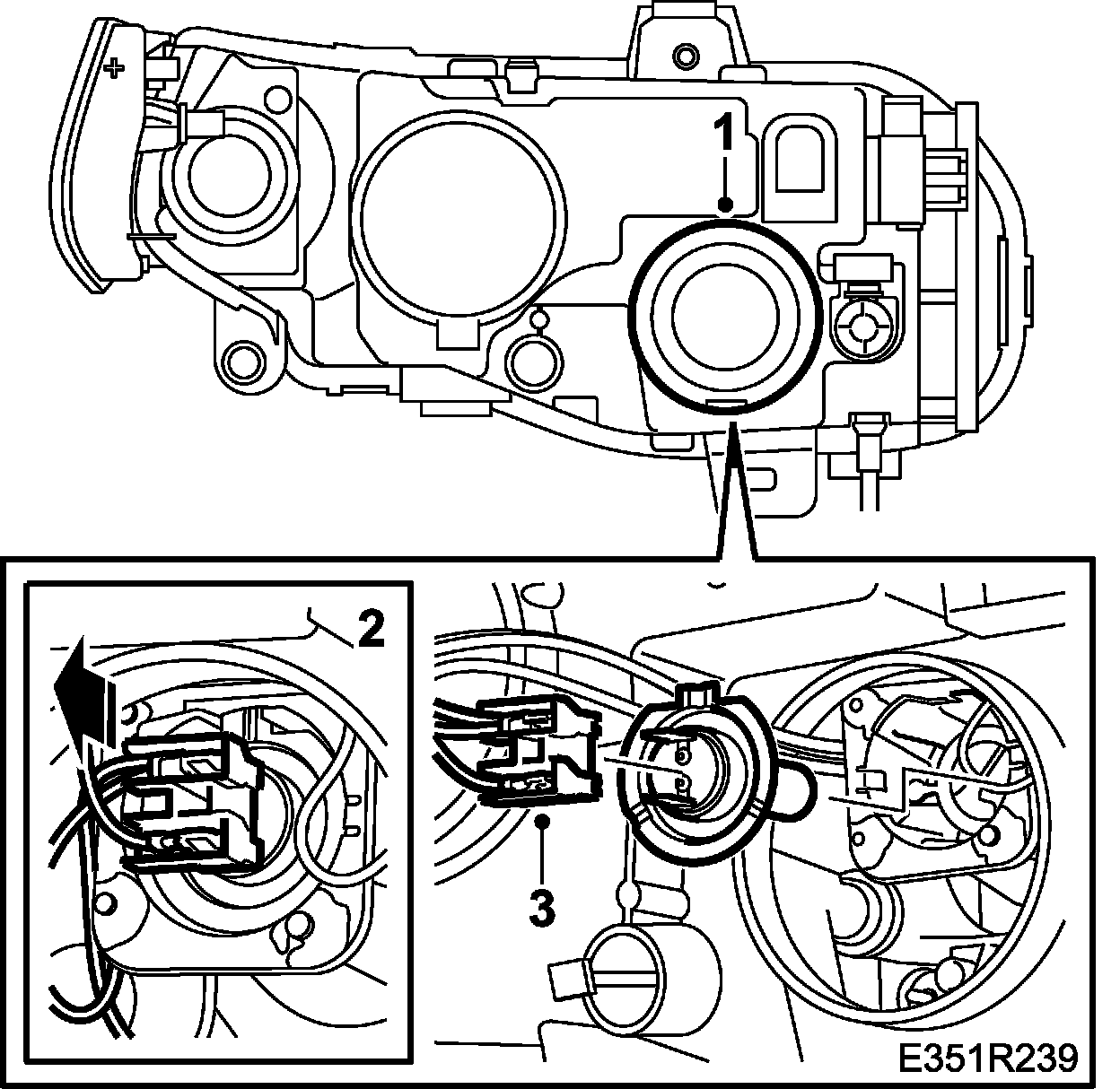

1. Remove the cover.

NOTE: Push the engine air intake hose backwards to improve access on the right-hand side. To improve access on the left-hand side, the battery cover should be removed.







2. Hold the electrical connector and wiggle the lamp slightly up and down while pulling it outwards.
3. Disconnect the electrical connector from the bulb.

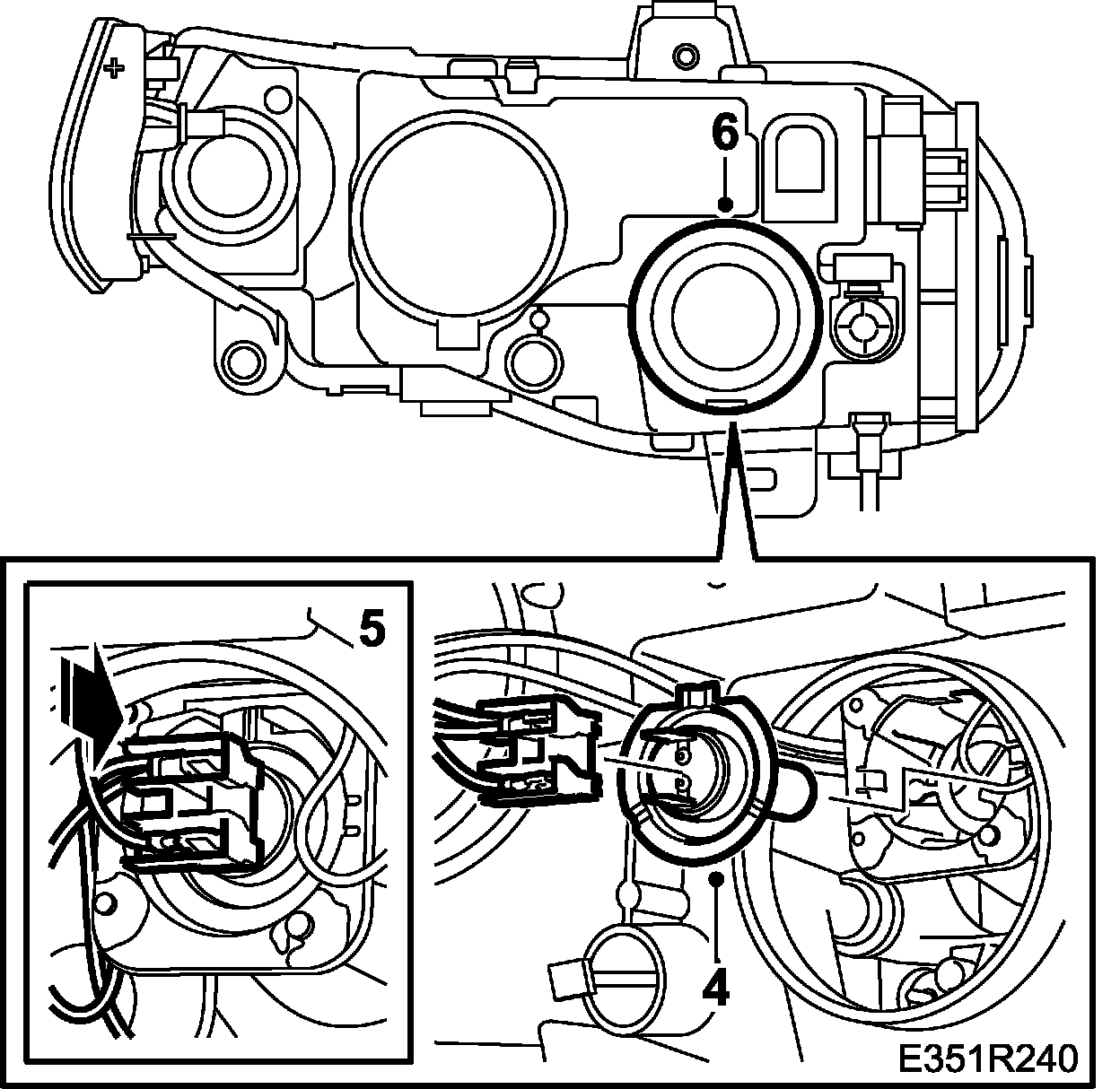

4. Fit the new bulb to the electrical connector without touching the bulb lens with the fingers.







5. Fit the lamp into its mounting in the reflector by slightly wiggling the lamp up and down while pushing it forwards.
6. Fit the cover.
