Tire Pressure Monitoring, TPMS, Main Components

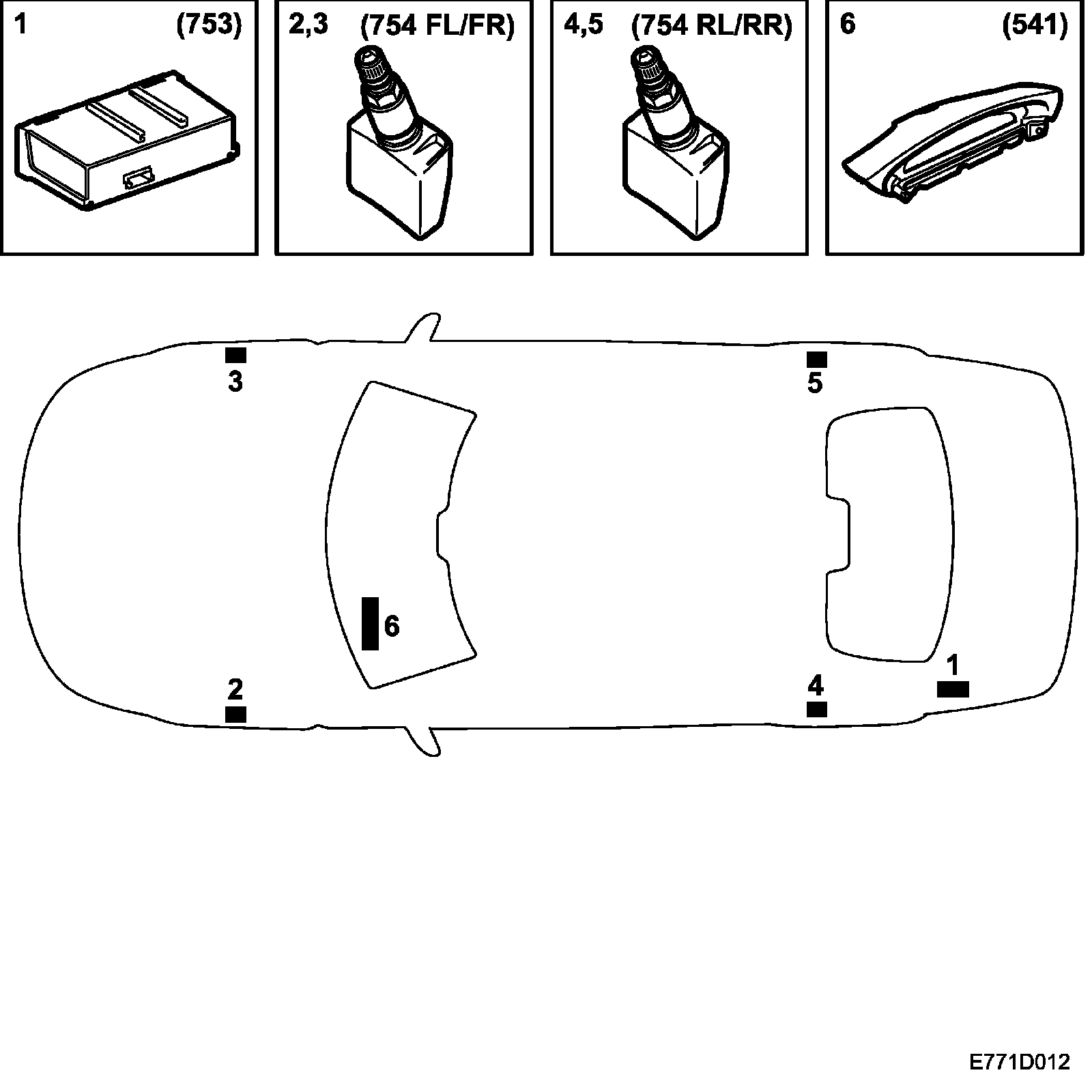

Tire pressure monitoring, TPMS, main components 1.
Control module, tire pressure monitoring (753)
2.
Pressure sensor, tire pressure, left-hand front (754FL)
3.
Pressure sensor, tire pressure, right-hand front (754FR)
4.
Pressure sensor, tire pressure, left-hand rear (754RL)
5.
Pressure sensor, tire pressure, right-hand rear (754RR)
6.
SID (541)
