Main Fuse Board 22A In the Dashboard



Main Fuse Board 22a In The Dashboard

Upper socket is input current.

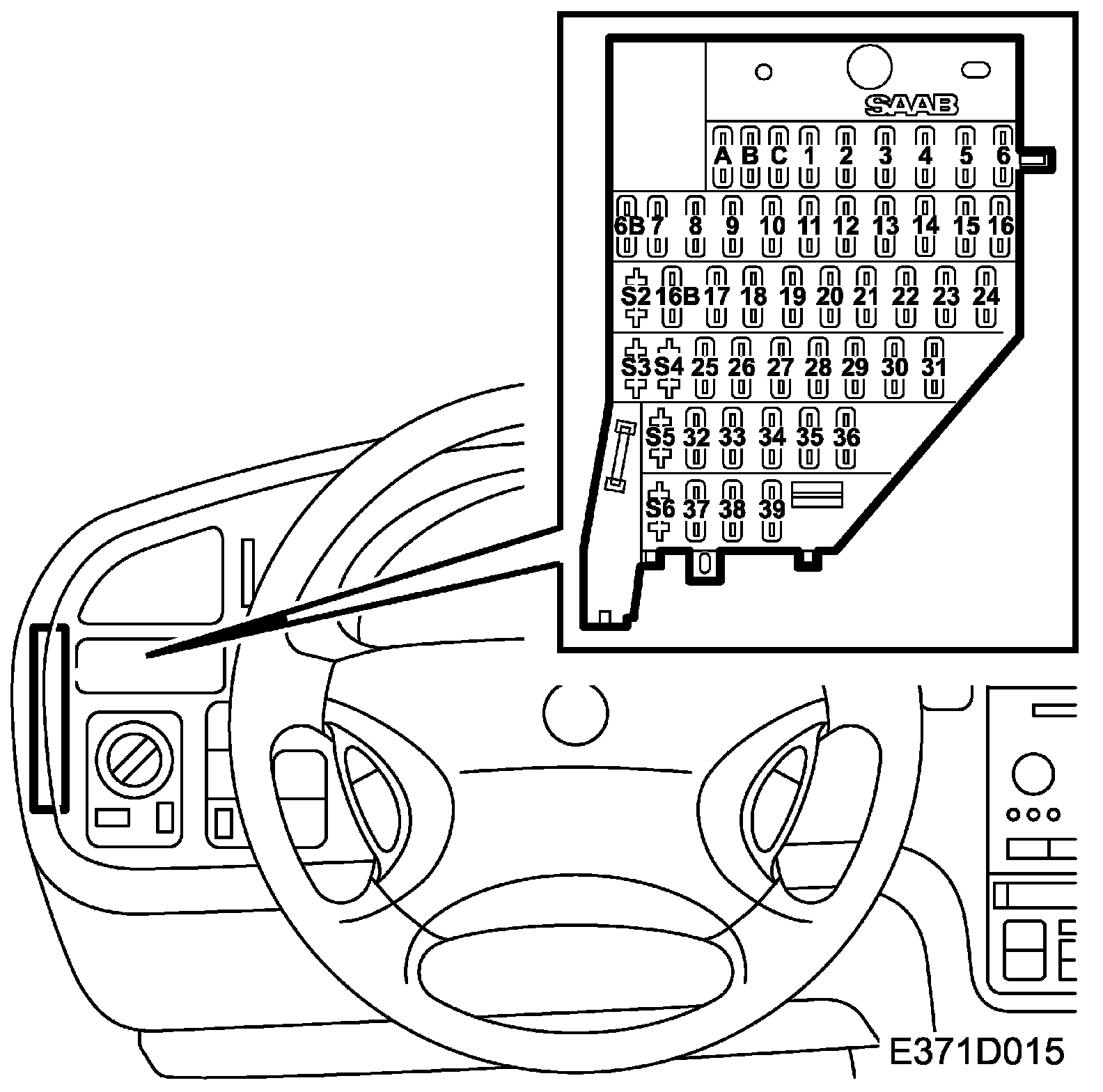

LHD

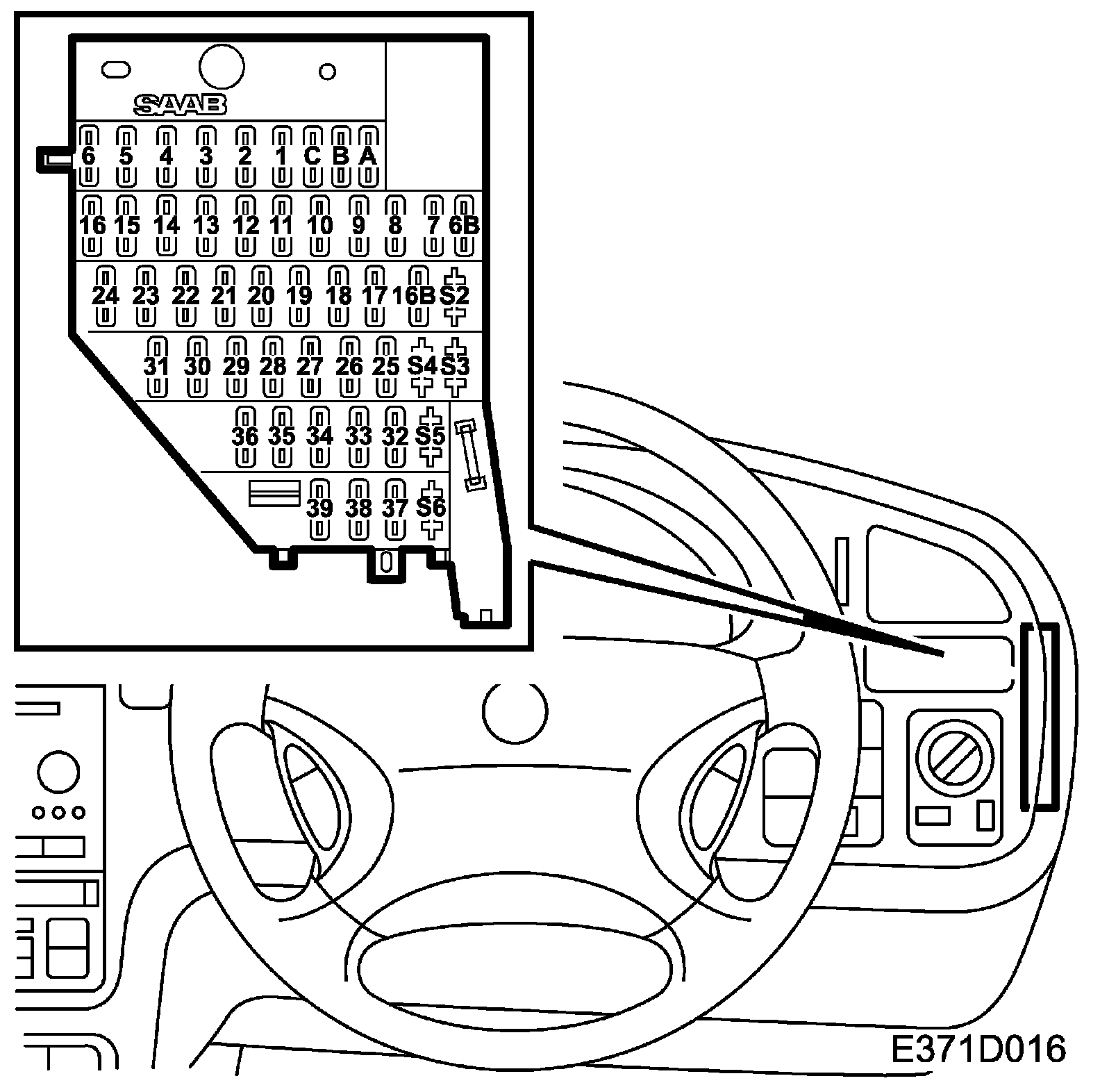

RHD

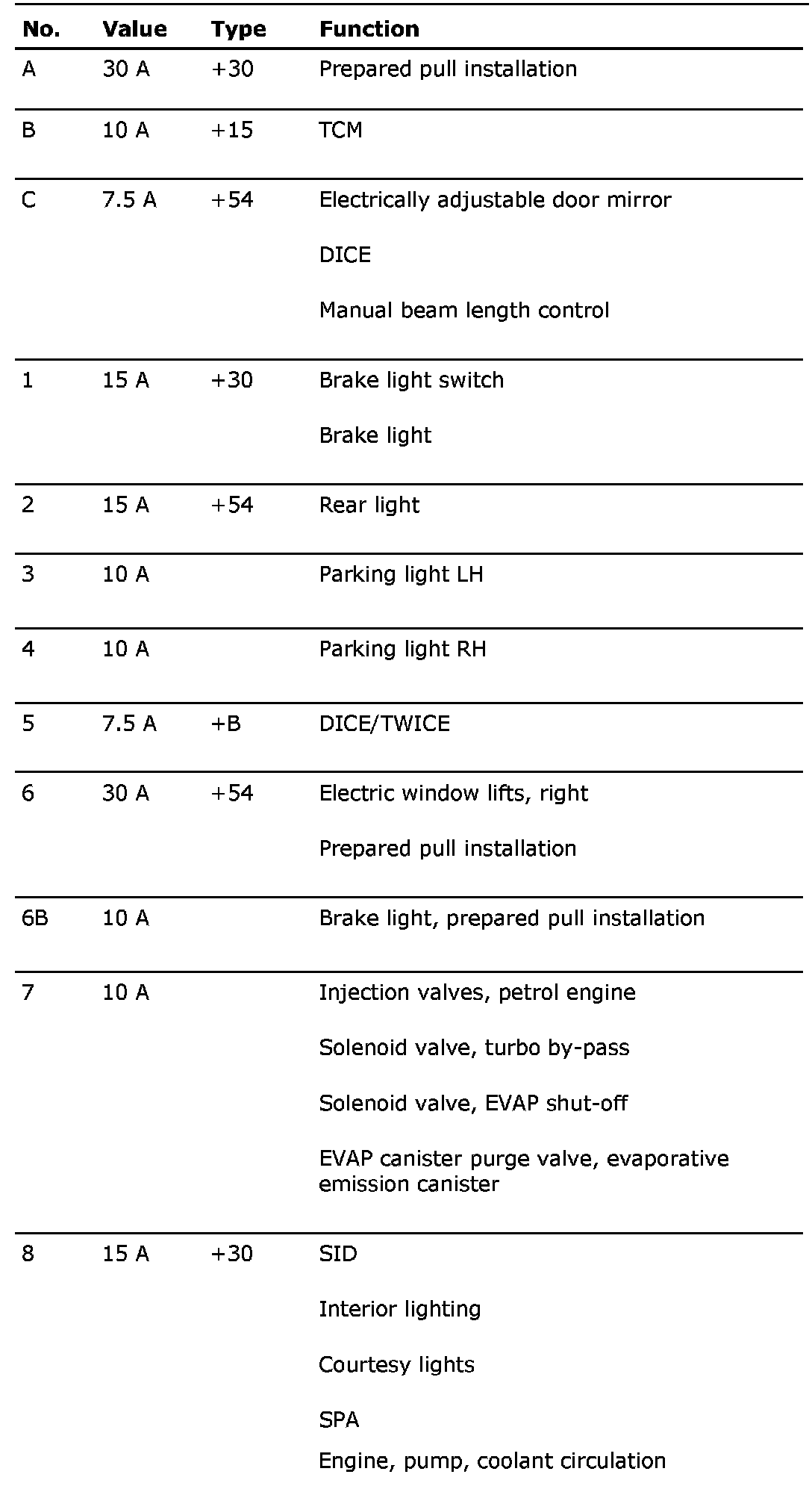

Part 1:




Part 2:




Part 3:




Part 4:




Part 5:






Location: On the short side of dashboard beside driver's door.
