Checklist For Changing Turbocharger And Engine Control Module



Checklist For Changing Turbocharger And Engine Control Module

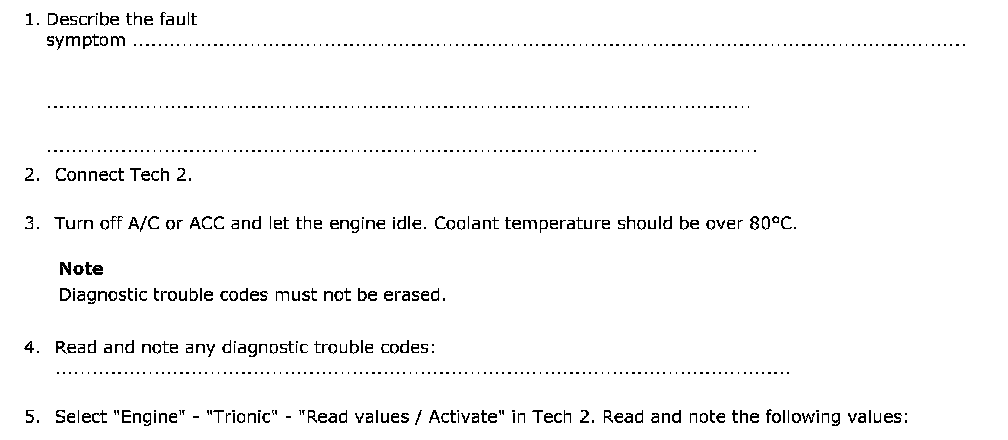

Checklist













Under system information you will find information on chassis and version numbers for Trionic T7

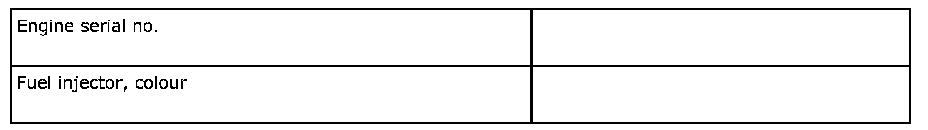

The plate with the engine number is placed on the cylinder block according to WIS - Engine - Base engine, petrol - Technical data - Engine number.

To see the colour of the injectors, remove the upper engine cover.
