Transmission Position Sensor/Switch: Description and Operation

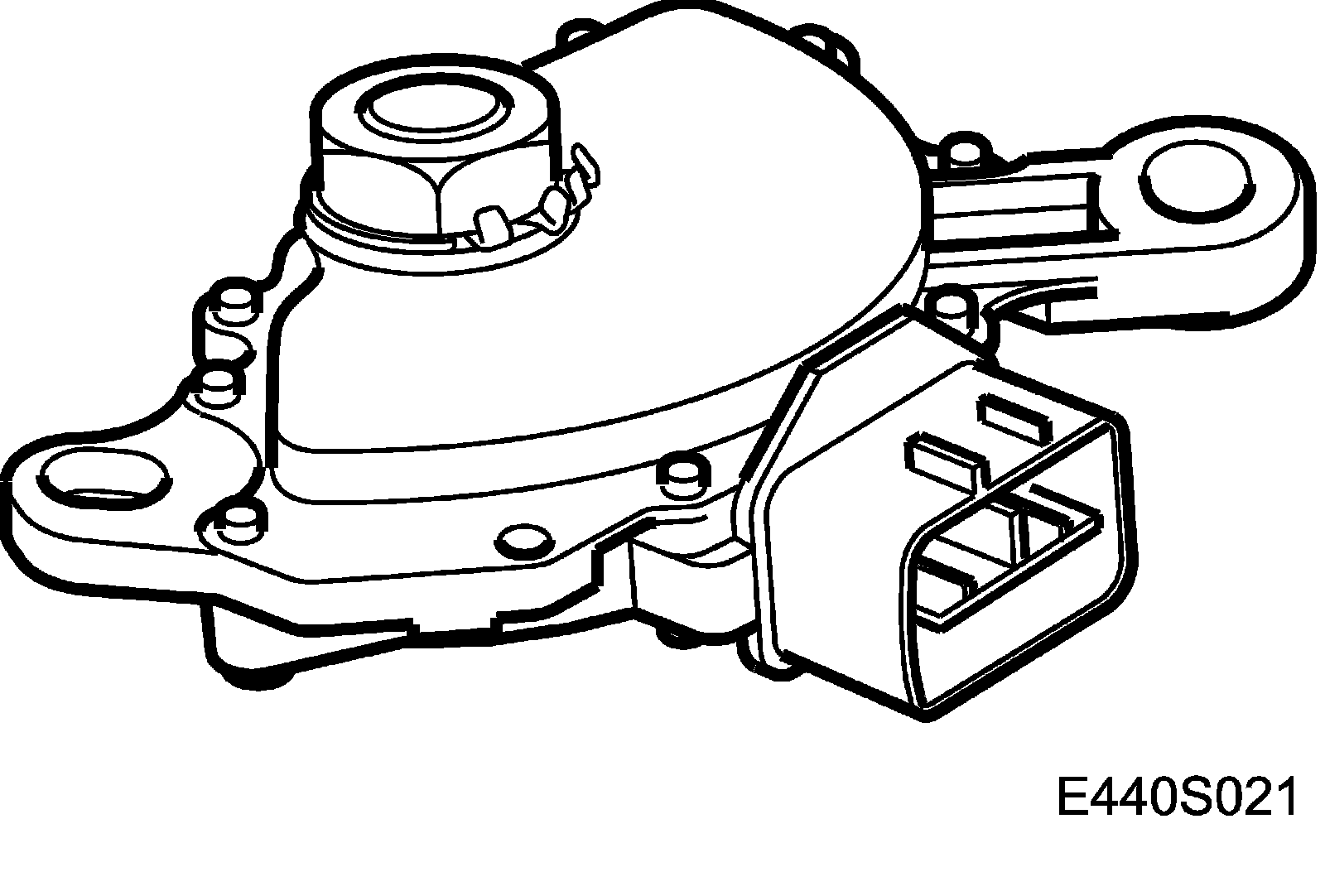

Gear selector position sensor Location
On the transmission casing
Fitting
Adjustment required for proper operation
Type
Slip contacts
Power supply (+15 circuit)
IG contact
Function

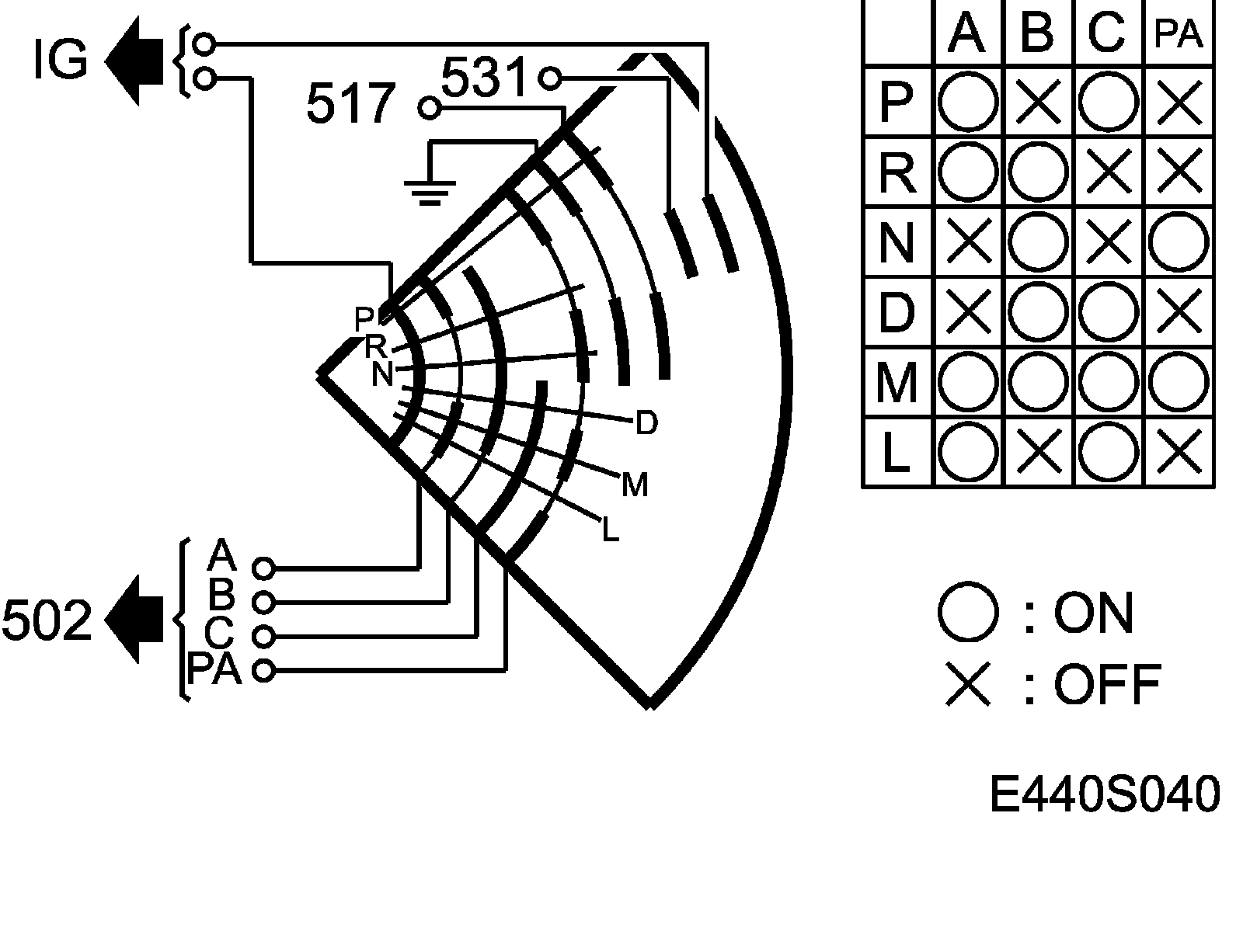

Selector lever position
A, B, C and PA contacts
Starter motor interlock
Contacts ST, M
Reversing lights
Contacts E, D
Resistance
Open contact
OL
Closed contact
<5 Ohm
