SPA Control Module, 4D

To remove

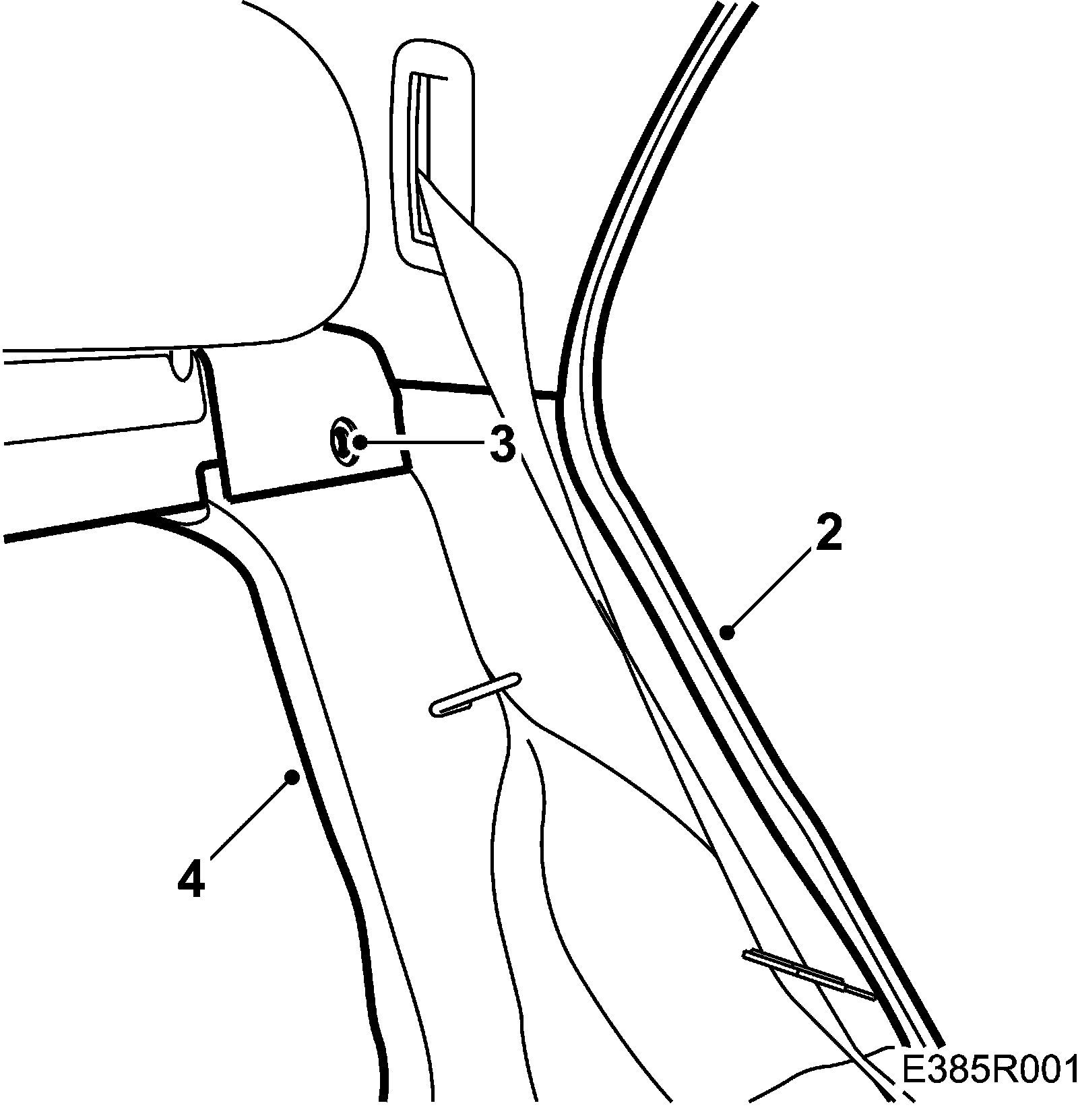

1. Open the left-hand rear door and tip forward the 60% part of the rear seat (seat cushion and backrest).
2. Loosen the door weather seal so that the side trim by the wheel housing is free
3. Remove the upper front clip of the side trim.
4. Bend aside the side trim.
5. Remove the sound absorbing cushion.

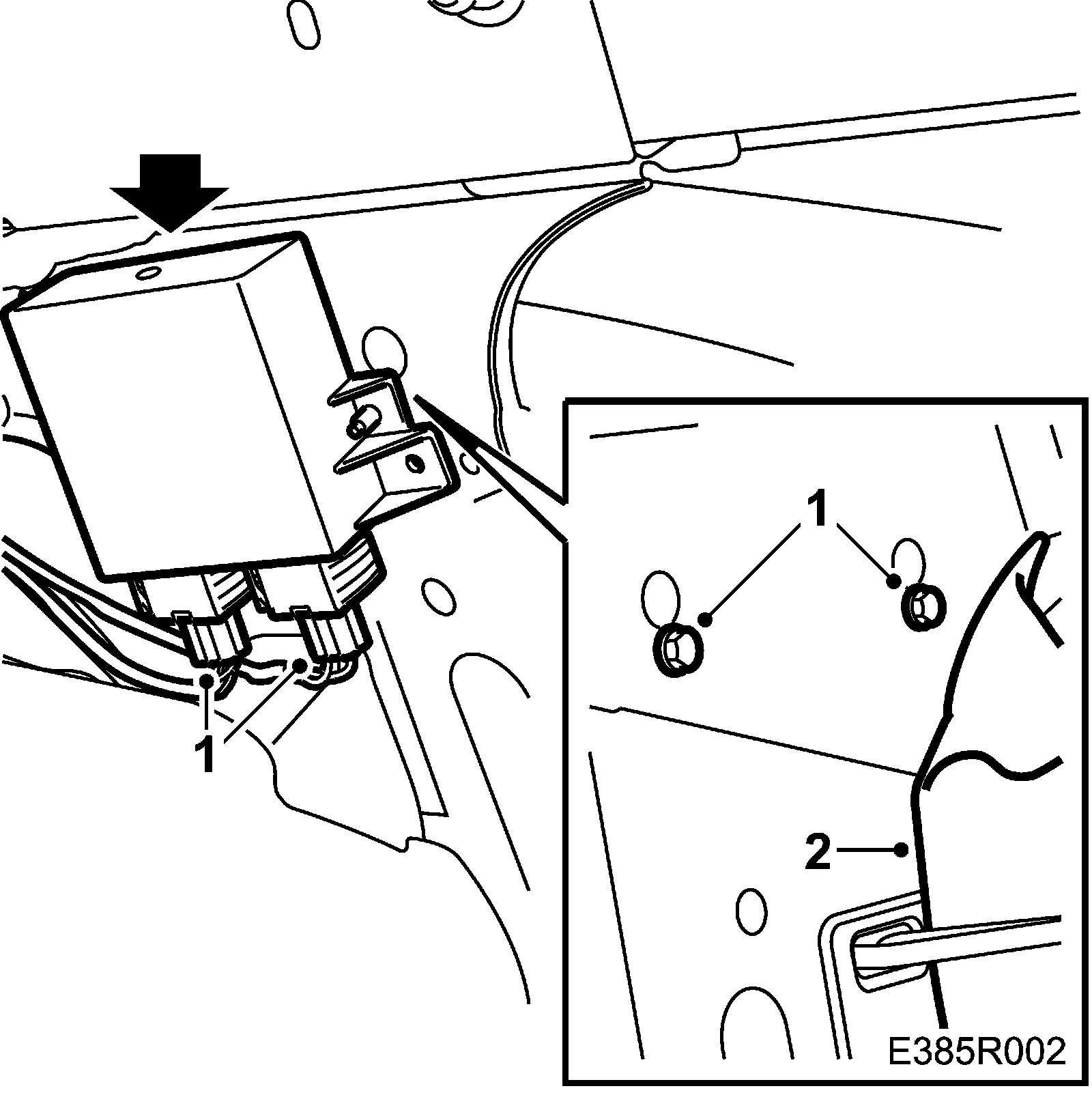

6. Loosen but do not remove the 2 control module retaining screws.
Move the control module upwards and backwards so that the screws come out of the slots.
7. Undo the 2 connectors and remove the control module.

To fit

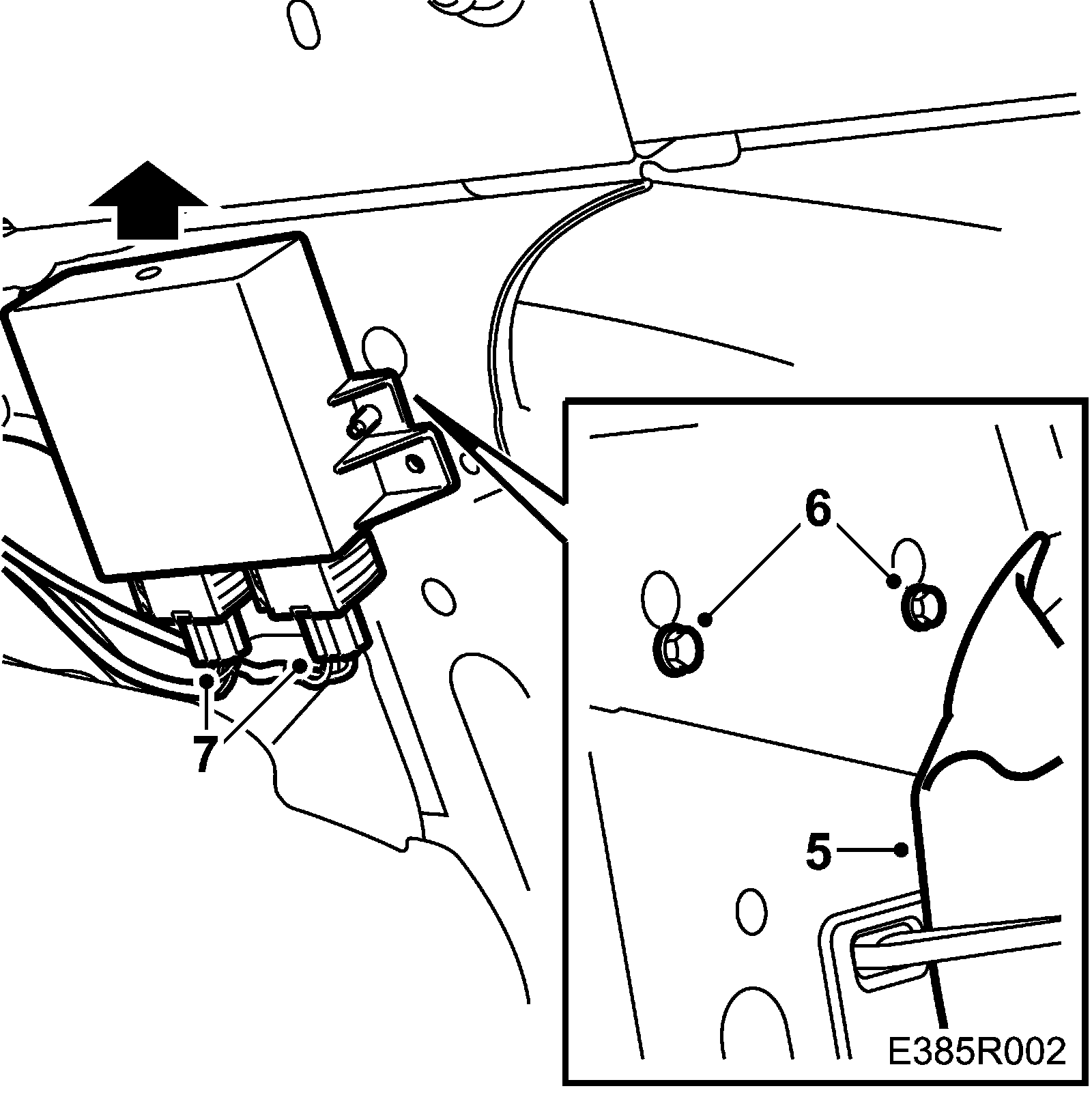

1. Plug in the 2 connectors, grey to grey and black to black. Fit the screws into the slots, making sure that the washers are in front of the mounting plate. Tighten the screws.
2. Fit the sound absorbing cushion.
3. Refit the side trim and secure with the clip.







4. Press the door weather seal into place.
5. Raise the rear backrest and lower the seat cushion.
