5D

SPA Control Module, 5D

To remove







1. Raise the rear seat cushions and tip the entire rear backrest forward.
2. Remove the front luggage compartment floor, 2 clips, so that the front part of the bottom trim becomes accessible.

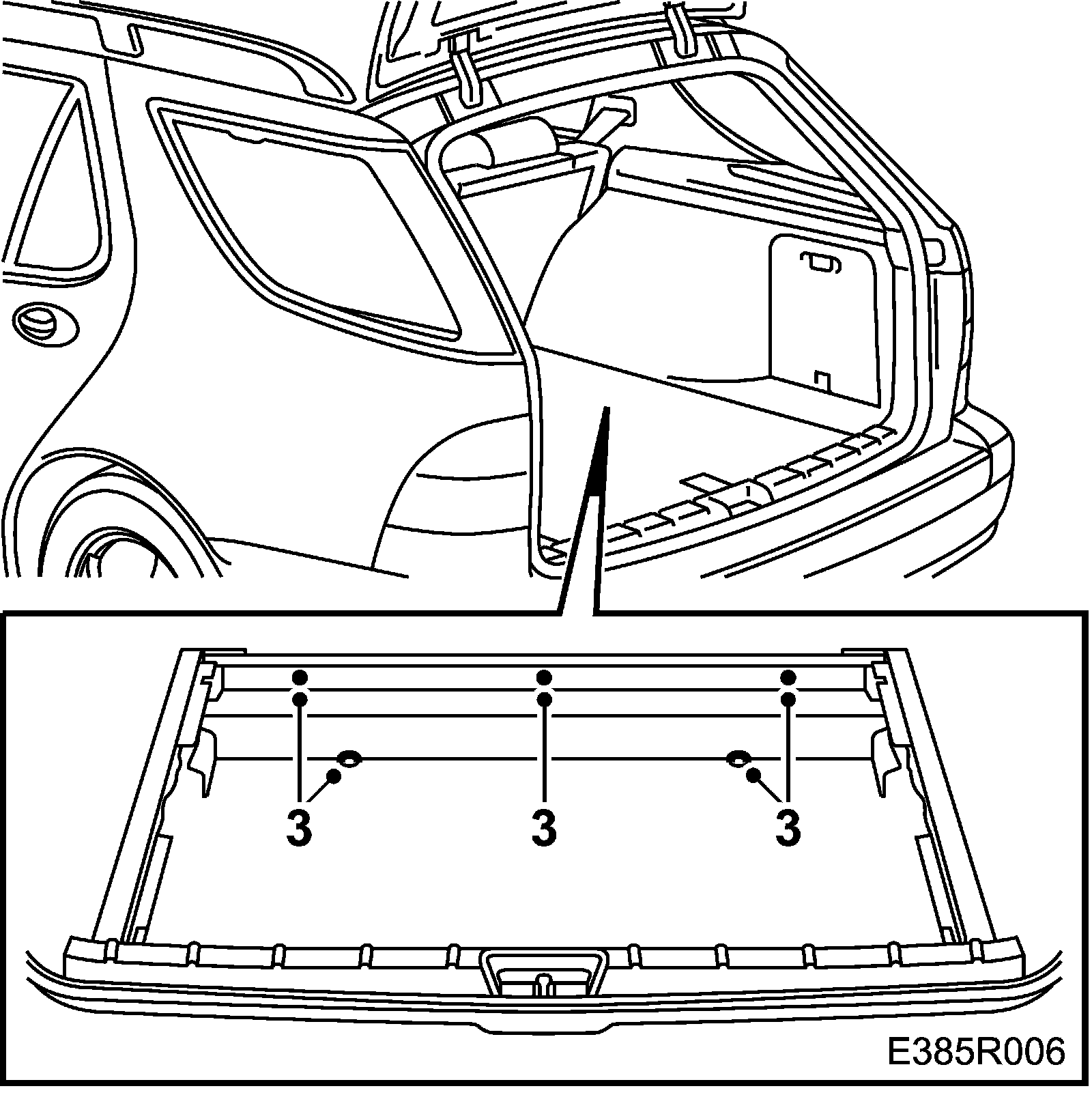

3. Remove the 3 clips that secure the front edge of the bottom trim.

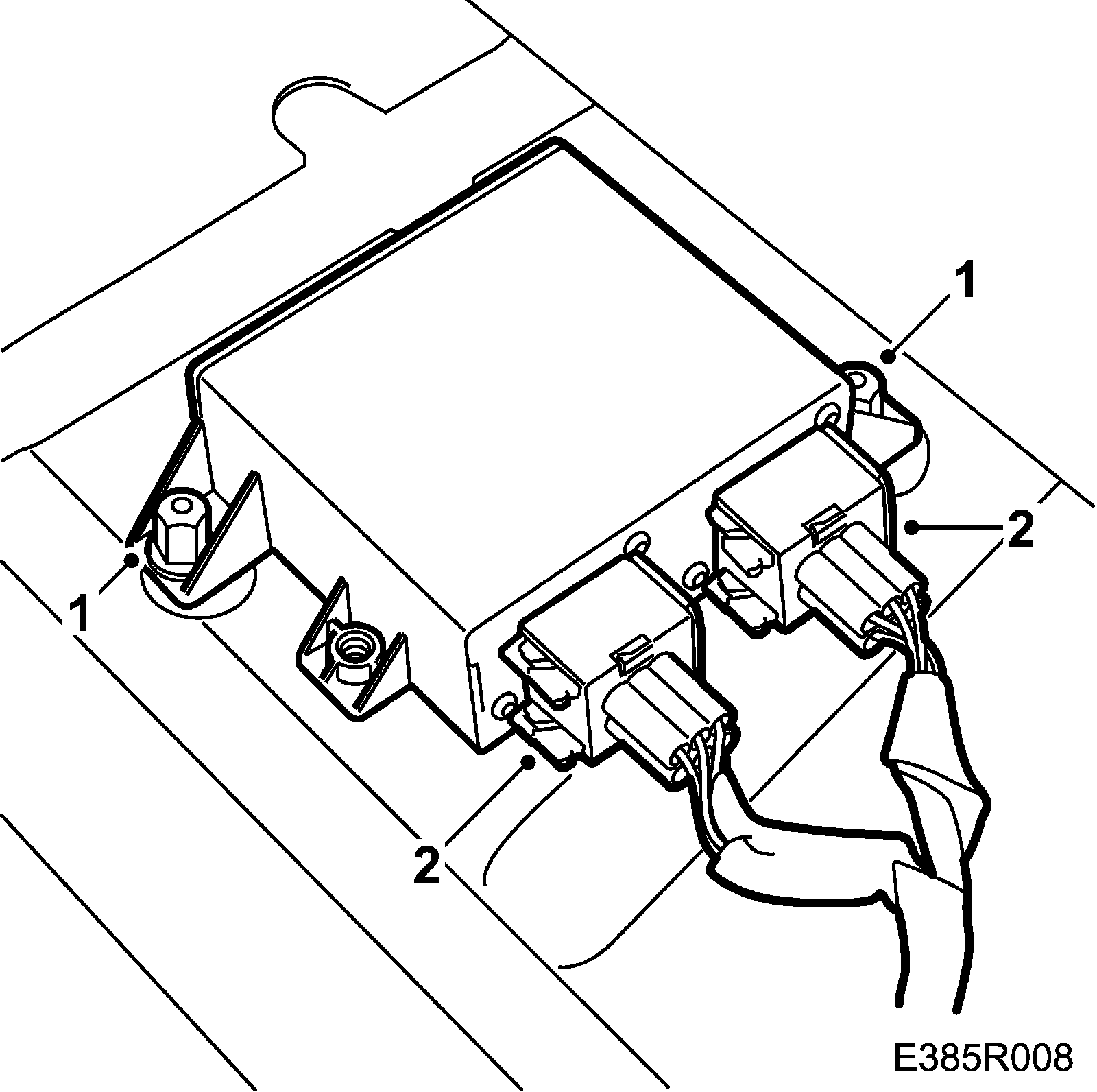

4. Undo the 2 connectors.







5. Remove the control module, 2 nuts.

To fit







1. Fit the control module and secure with the 2 nuts.
2. Plug in the 2 connectors, grey to grey and back to black.
3. Fit the front part of the bottom trim with the 3 clips.







4. Press home the front part of the floor.







5. Raise the rear backrest and lower the seat cushions.
