Battery Tray: Service and Repair

Battery Shelf

Removal

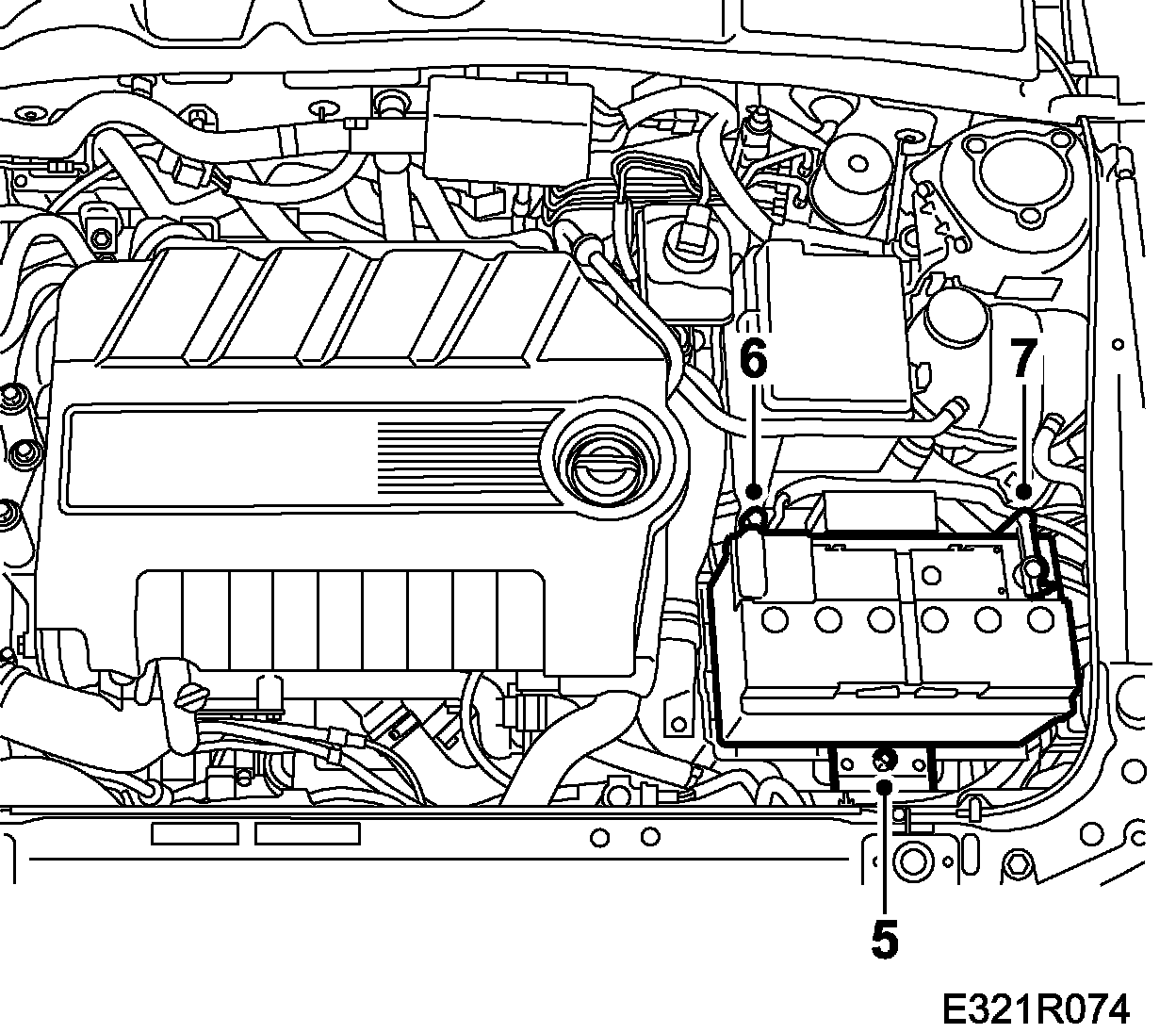

1. Disconnect the negative battery cable.







2. Disconnect the positive battery cable.
3. Remove the nut and battery clamp, lift out the battery.

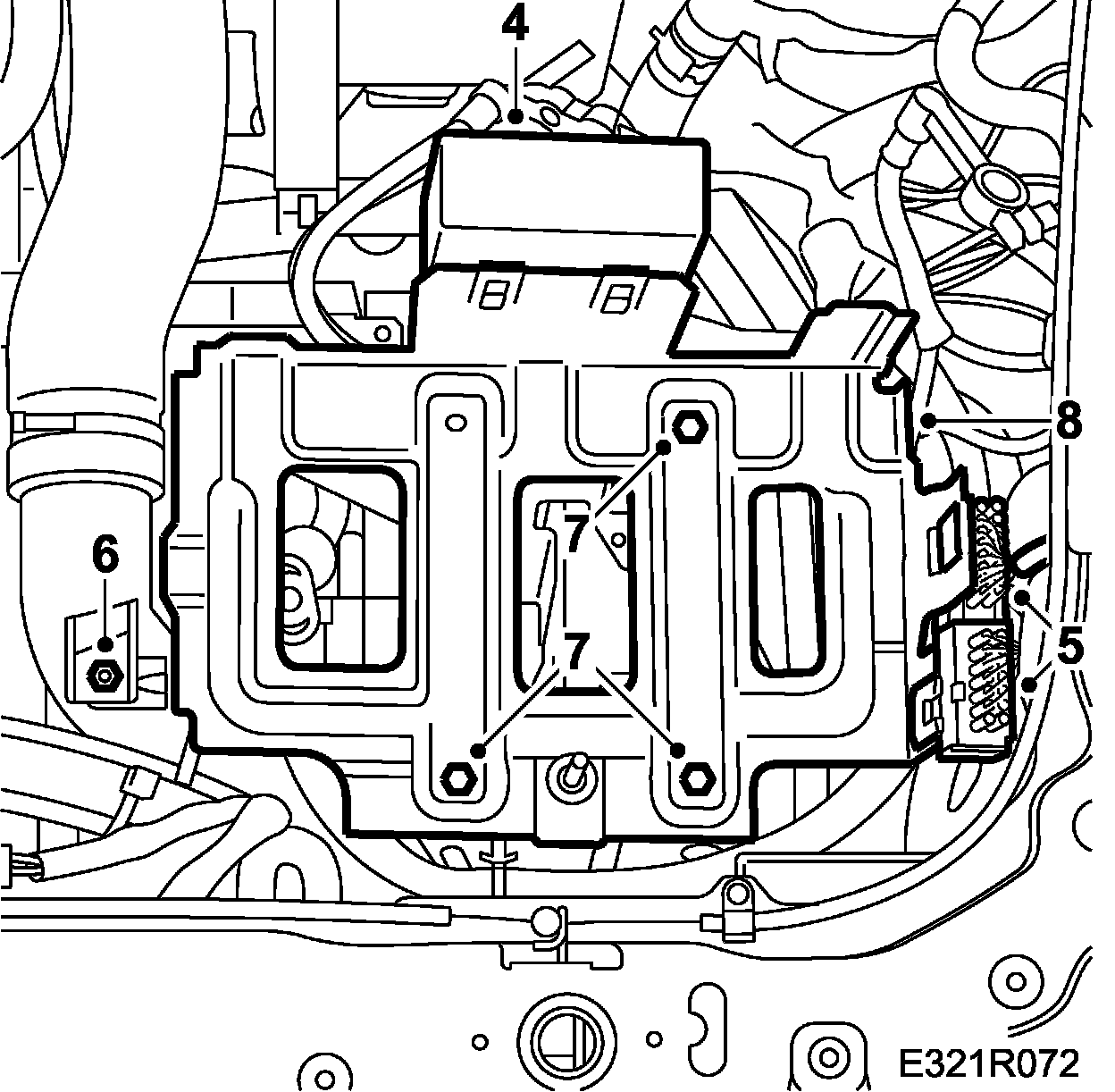

4. Remove the fuse holder from the battery shelf.







5. Remove the connector from the battery shelf.
6. Remove the charge air pipe nut.
7. Remove the bolts holding the battery shelf.
8. Lift out the battery shelf.

Refitting

1. Fit the battery shelf







2. Fit the charge air pipe nut.
3. Fit the connector to the battery shelf.
4. Fit the fuse holder
5. Replace the battery and assemble the clamp and nut.







6. Attach the negative battery cable.
7. Attach the negative battery cable.
