Ignition Switch Cylinder M/T

Ignition switch cylinder

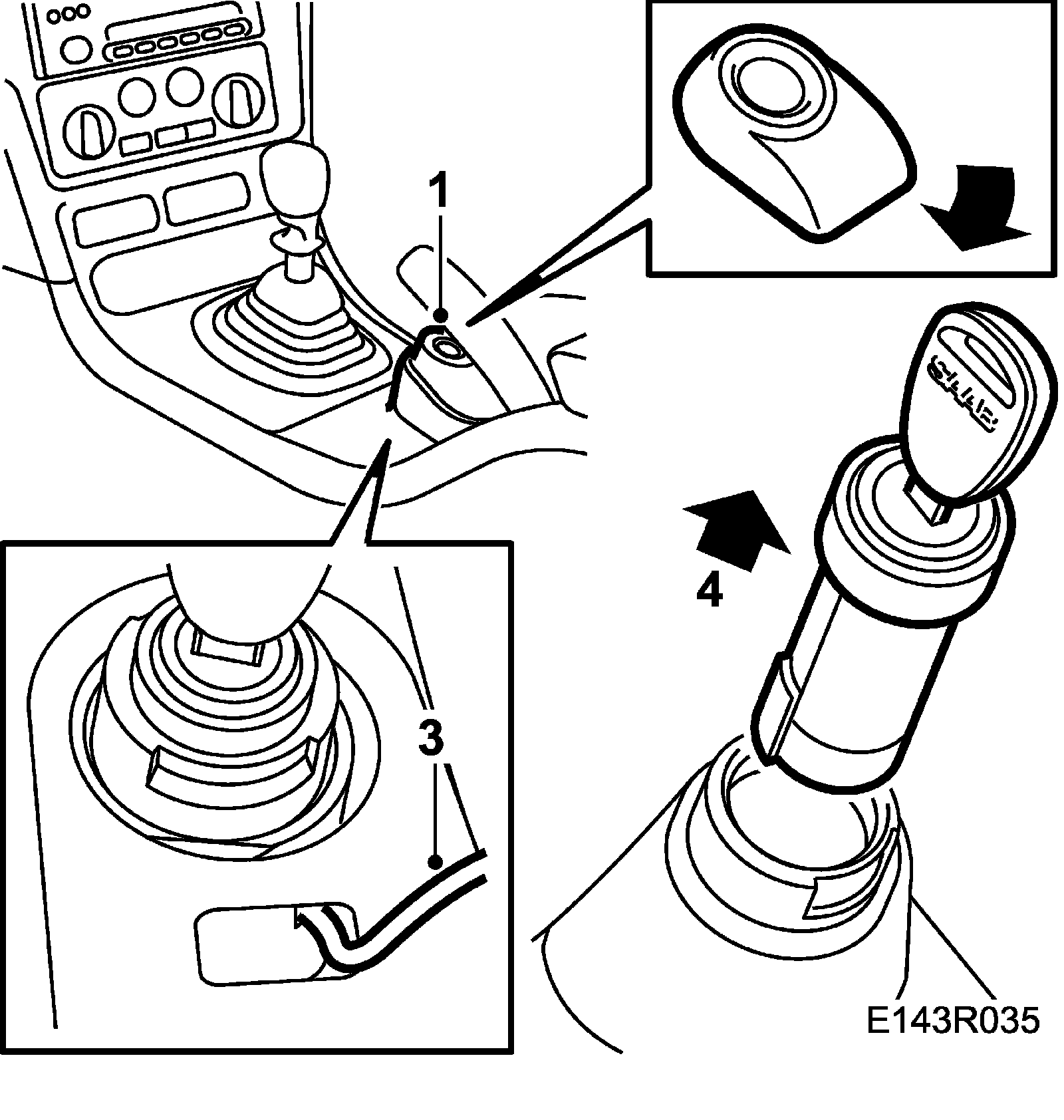

To remove





1. Remove the key detector. Rotate the antenna unit clockwise slightly and lift it up.
2. Set the ignition key in the OFF position.
3. Bend in a welding rod.
4. Press in the catch in the lock cylinder using the welding rod and pull the lock cylinder straight up. The key must remain in the rock cylinder.

Fitting
1. Set the ignition key in the OFF position.
2. Align the lock cylinder. Press it down firmly and feel to ensure that it is fitted securely.
3. Fit the key detector.
