Control Module Ground

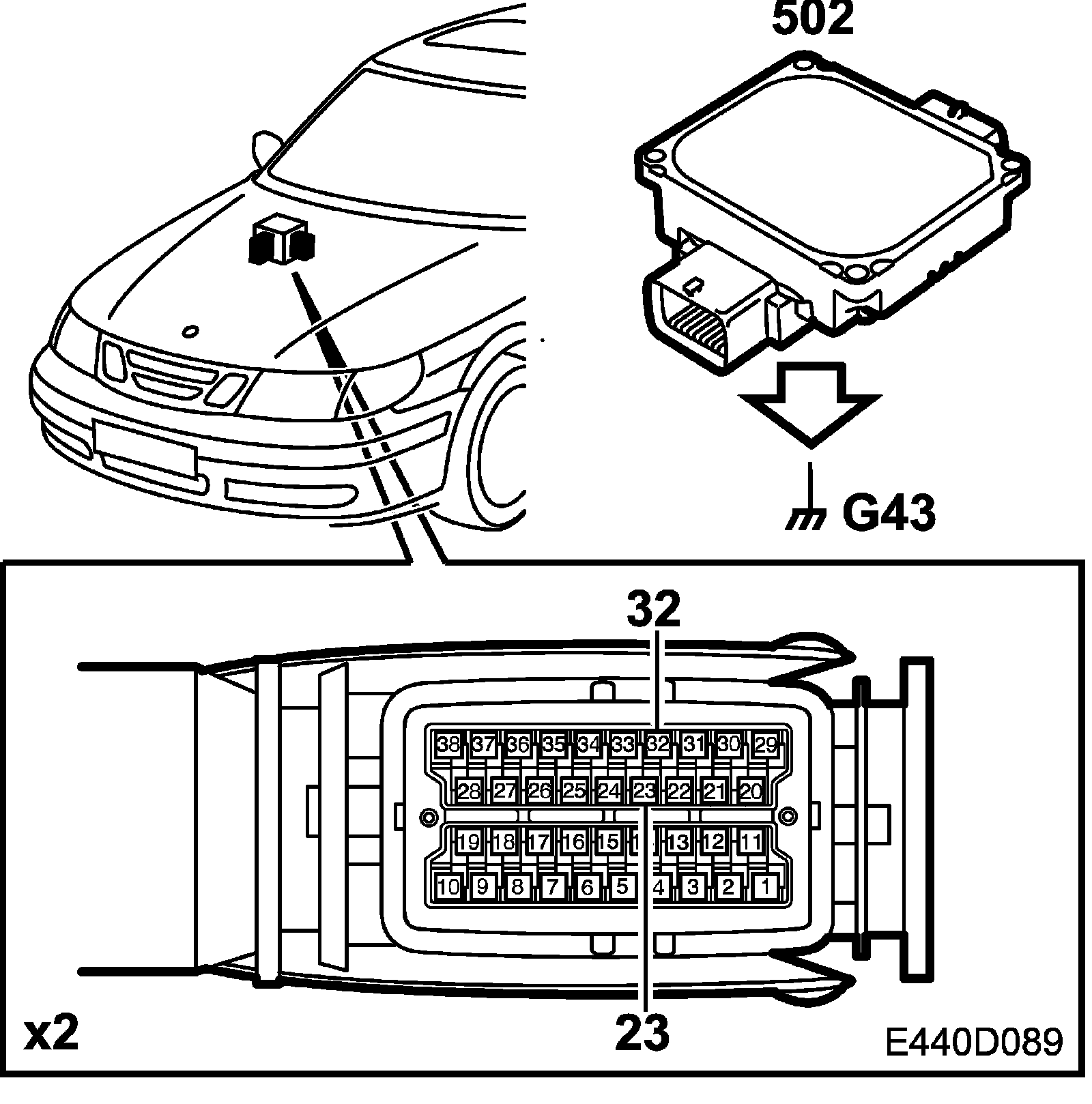

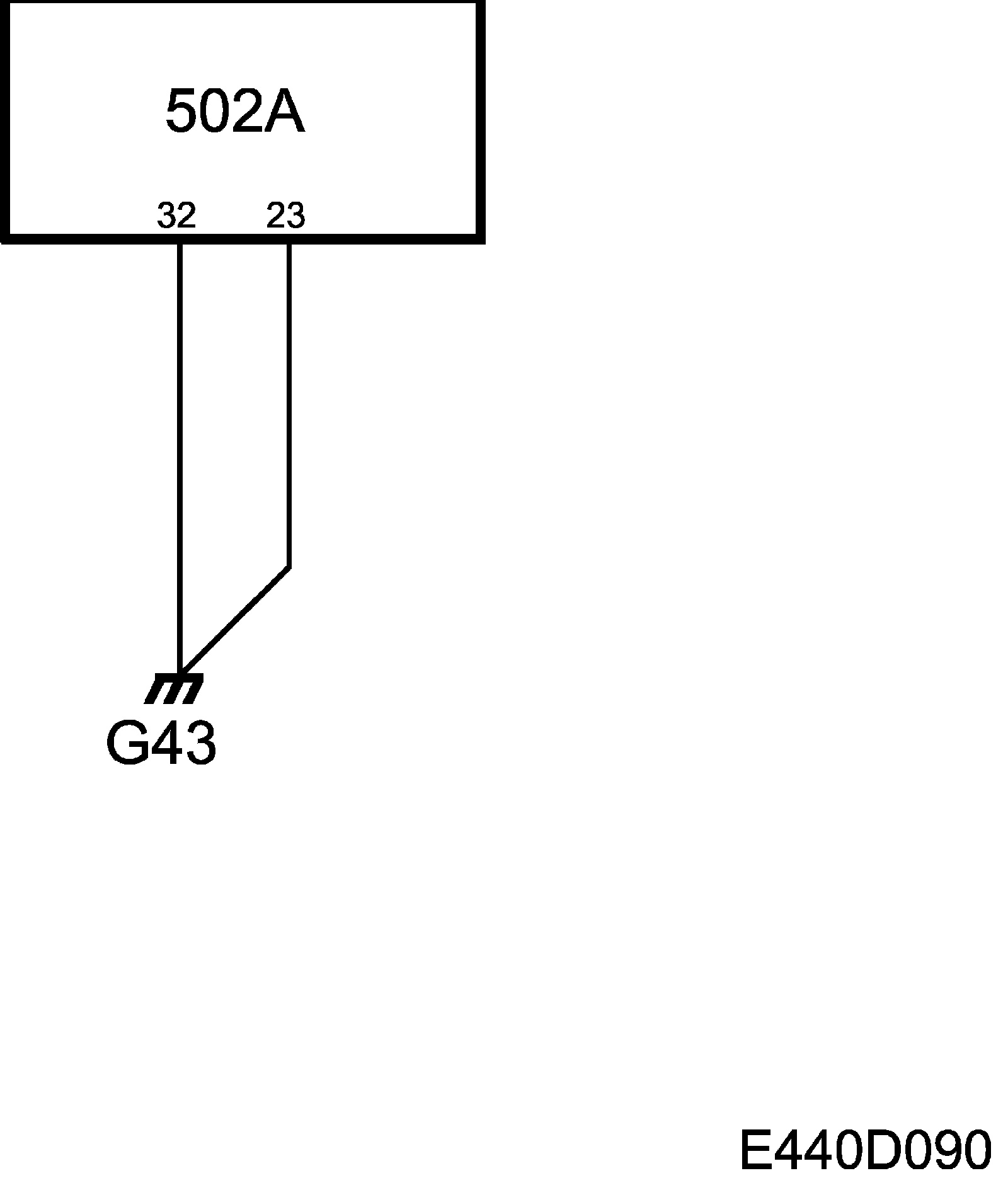

Control module ground The control module is grounded through pins 32 (A) and 23 (A) to grounding point G43. The grounding points are connected internally.
Diagnostics If there is no ground connection, communication with the
TCM will not be possible. No diagnostic trouble code is gene869rated.
TCM in Limp-Home mode.
