Control Module Inputs

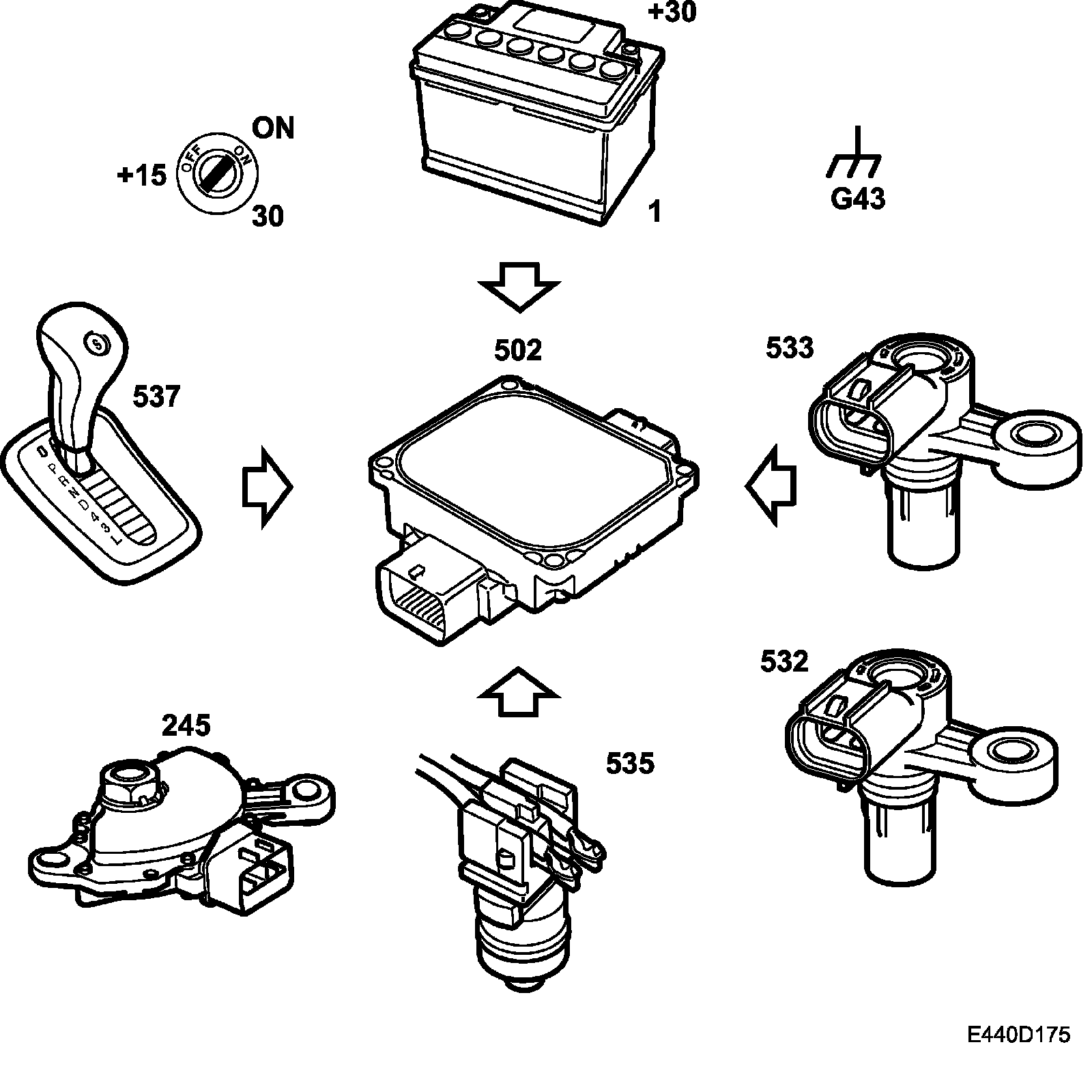

Control module inputs ^
Battery voltage +30 (A33)
^
Battery voltage +15 (A31)
^
Ground (G43), see ->.
^
Speed sensor, input shaft (532)
^
Speed sensor, output shaft (533)
^
Temperature sensor, transmission fluid (535)
^
Gear selector position sensor (245)
^
Switch, SPORT (537)
^
Switch, up and down gear changing, pin 8 (A)
