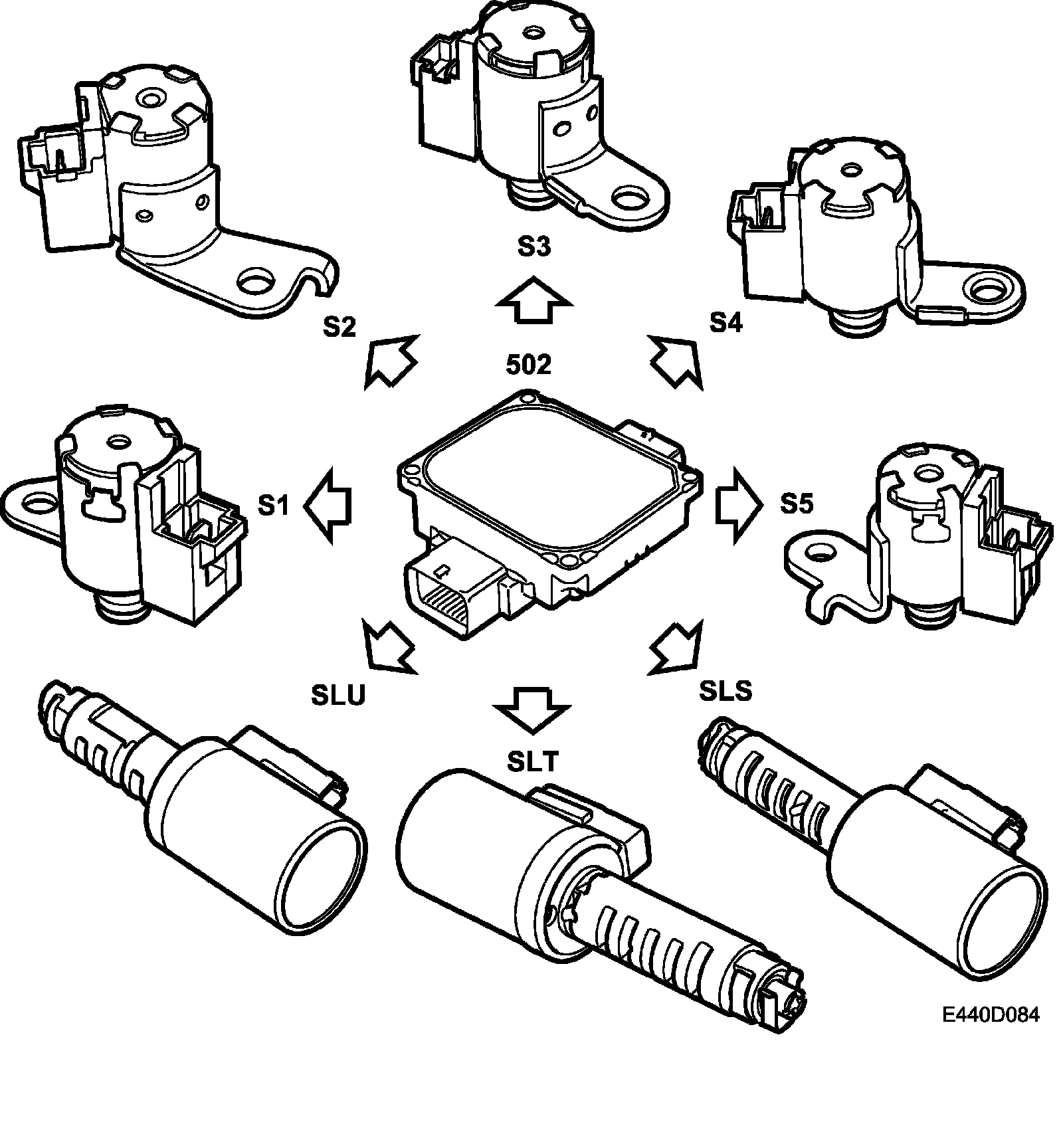

Control Module Outputs
Control module outputs ^
Solenoid valve S1 for shifting
^
Solenoid valve S2 for shifting
^
Solenoid valve S3 for shifting
^
Solenoid valve S4 for shifting
^
Solenoid valve S5 for shifting
^
Solenoid valve SLU for lock-up
^
Solenoid valve SLT for system pressure
^
Solenoid valve SLS for clutch pressure
