Sport Button

SPORT button

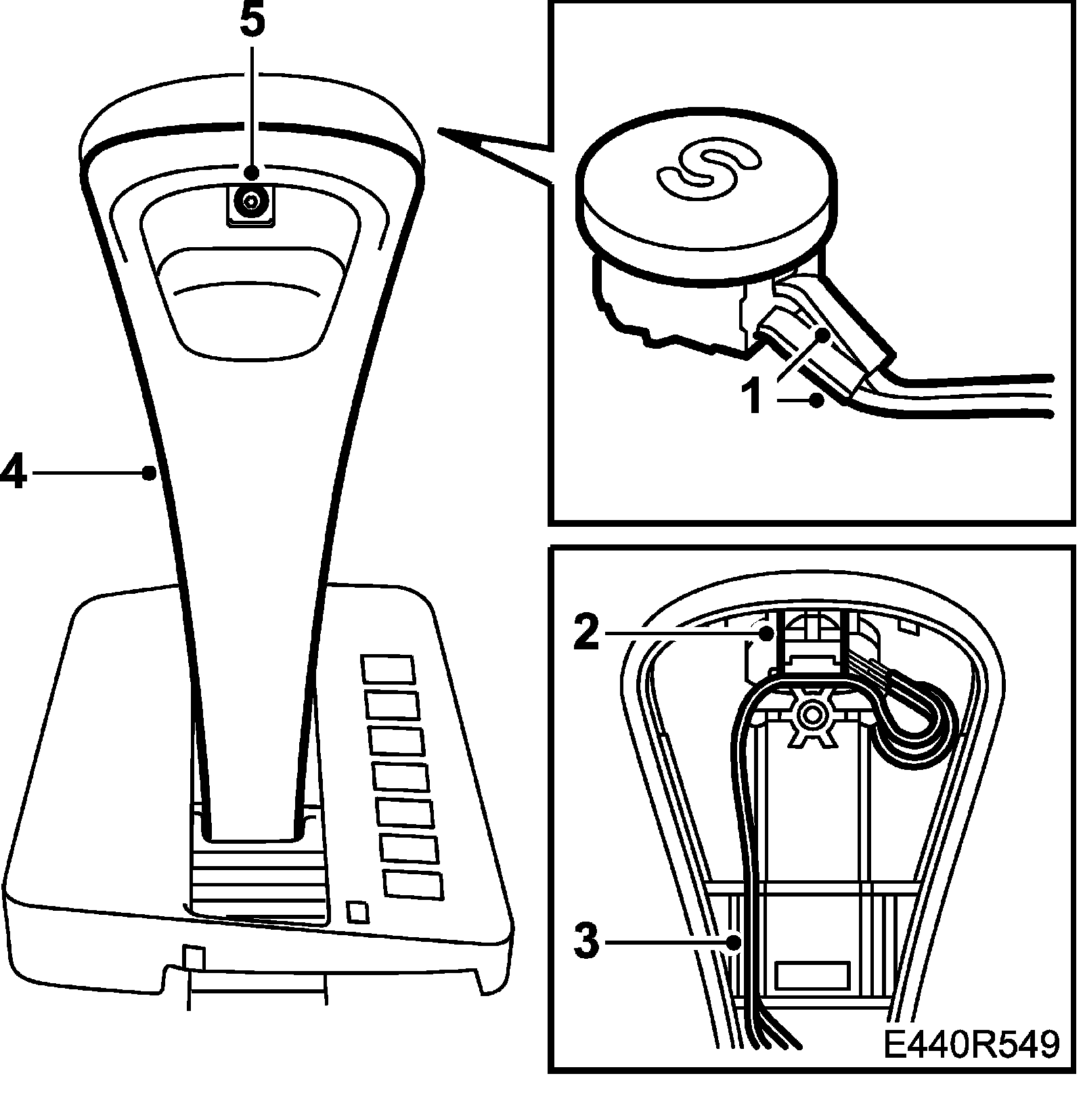

To remove





1. Put the gear selector in position N or D.
2. Remove the front part of the gear selector housing.
3. Press up the SPORT button from below.
4. Unsolder the SPORT button. Lay a guard underneath so the solder does not drip onto the center console.

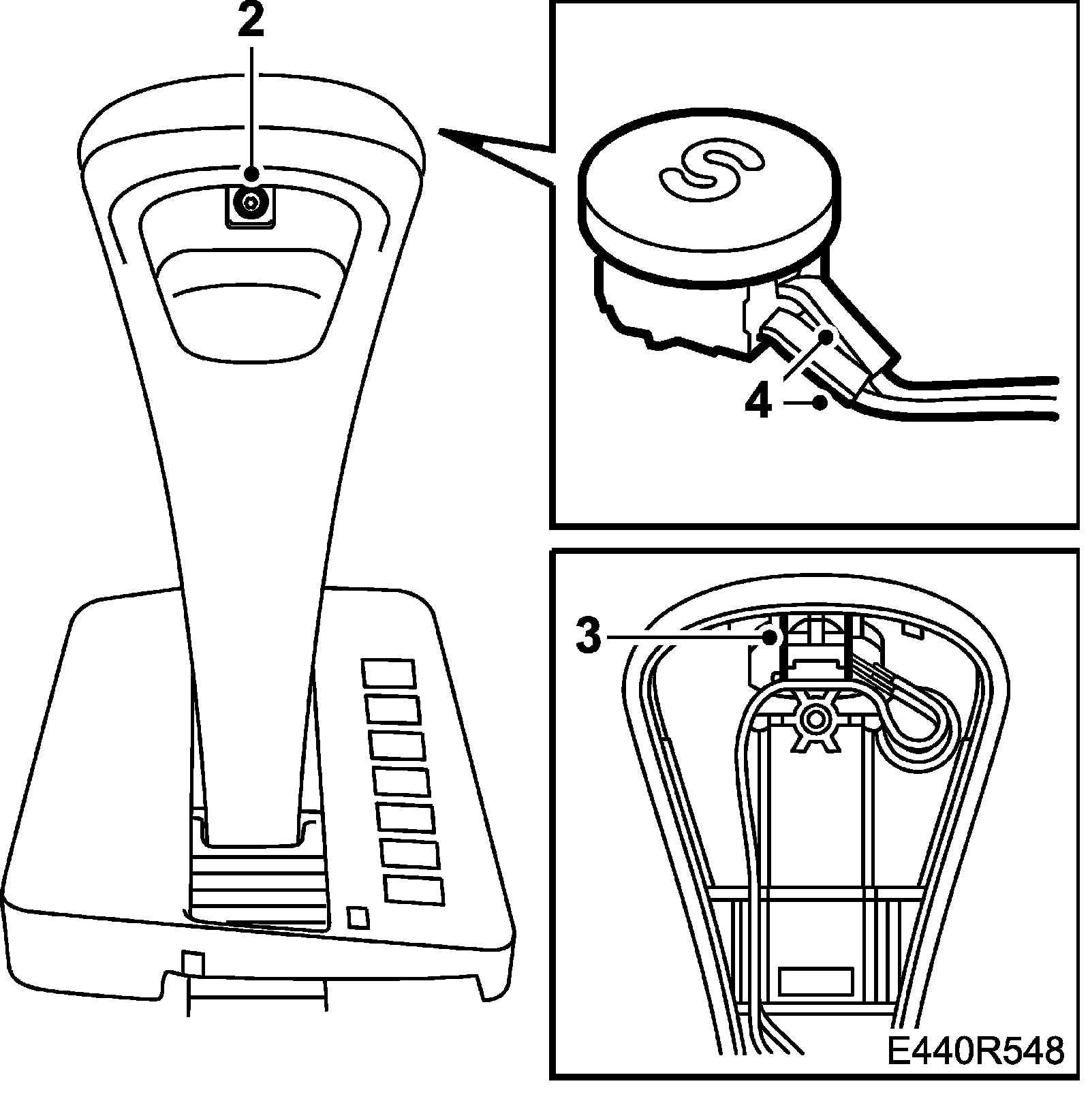

1. Solder on the SPORT button. Lay a guard underneath so the solder does not drip onto the center console.
2. Press in place the SPORT button.
3. Lay the electric wires in a loop so they do not get pinched.
4. Fit the front part of the gear selector casing.
5. Screw together the gear selector.
