Assist Step Support Bracket Replacement

Assist Step Support Bracket Replacement


Removal Procedure

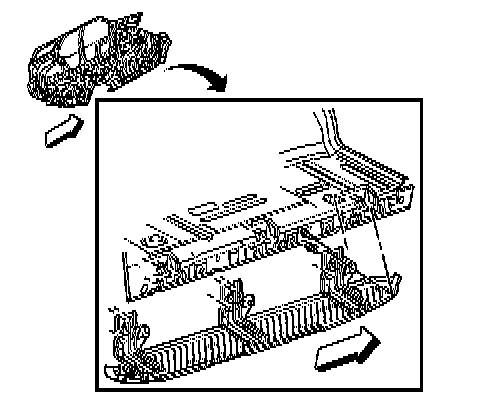

1.Remove the bolts that retain the assist step support brackets to the body.

2.Remove the assist step assembly from the vehicle.

3.Place the step assembly on a clean, prepared surface.





4.Remove the nuts (1) that retain the assist step to the support brackets.

5.Remove the support brackets from the assist step.

Installation Procedure





1.Position the assist step to the support brackets.

Caution:Refer to Fastener Caution .

2.Install the nuts (1) that retain the assist step to the support brackets and tighten to25 N �m (18 lb ft).





3.Position the assist step assembly to the vehicle.

4.Install the bolts that retain the support brackets to the body and tighten to25 N �m (18 lb ft).
