Engine Protection Shield Replacement

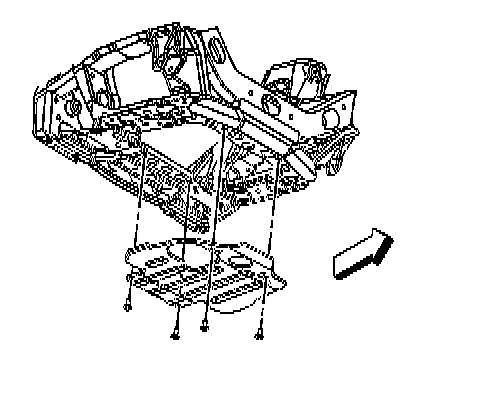

Engine Protection Shield Replacement Removal Procedure 1.Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
2.Remove the engine shield mounting bolts.
3.Remove the engine shield.
Installation Procedure 1.Install the engine shield.
Caution:Refer to Fastener Caution .
2.Install the engine shield mounting bolts and tighten to
20 N �m (15 lb ft).
3.Lower the vehicle.
